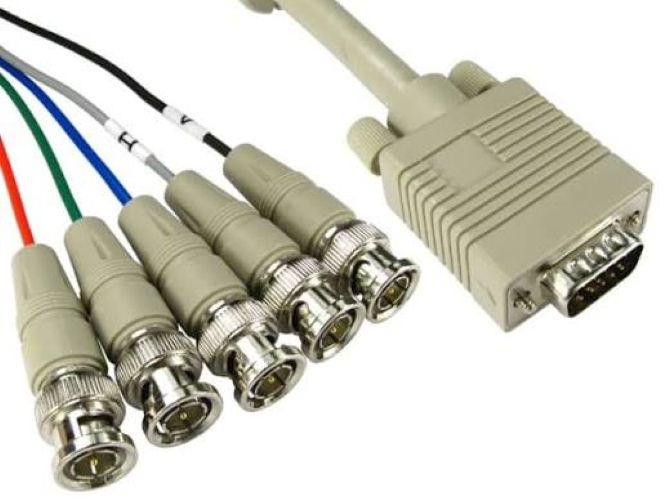

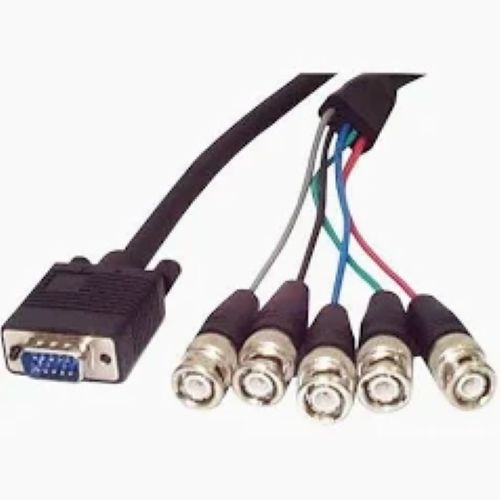

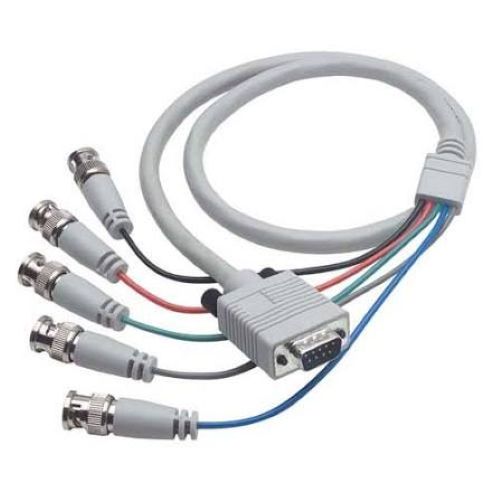

VGA To 5 BNC Cable

Name: VGA To 5 BNC Cable
Brand: CHERRY CONNECTRONICS
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Unit

Get a Price/Quote

MOQ : 100 Units

VGA To 5 BNC Cable Specification

Weight
Approx. 180 grams (for 1.5m length)

Diameter
Approx. 6.0mm

Core Number
5

Usage & Applications
CCTV, Monitors, Projectors, Professional Audio/Visual Equipment, Multimedia Presentation

Features
High-quality signal transmission, Plug and Play, Durable construction, Flexible cable, Gold-plated connectors for enhanced conductivity, Molded VGA and BNC connectors

Conductor Shape
Round

Dielectiric Strength
500V/min

Locking Type
BNC twist-lock, VGA screw-lock

Operating Temperature
-10C to +70C

Core Material
Copper

Rated Temperature
-20C to +80C

Insulation
PVC Insulation

Impedance
75 Ohm (BNC)

Install Type
External, Plug & Play

Cable Type
VGA to BNC Video Cable

Tensile Strength
>200N

Conductor Type
Stranded

Number of Conductor
5

Product Type
VGA to 5 BNC Cable

Length
1.5 Meter (customizable options available)

Voltage
30V

Insulation Material
PVC

Application
Connecting VGA devices to display systems with 5 BNC video inputs such as projectors, monitors, or professional video equipment

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-30C to +85C

Connector Color
Silver (BNC), Black (VGA housing)

Shield Material
Tinned Copper Braiding

Jacket Color
Black

Dimension (L*W*H)
Standard cable diameter: approx. 6.0mm; Length: 1.5m

Color
Black cable with Red, Green, Blue, Black, White BNC lines

Material
Copper, PVC, Nickel-plated and Gold-plated Connectors

Size
Standard VGA 15-pin to 5 Male BNC

Packaging
Polybag or Box

Fire Resistance
Standard PVC flame retardant

Contact Plating
Gold-plated contacts on VGA, Nickel-plated BNCs

Connector Type
VGA 15 Pin Male to 5 x BNC Male (RGBHV)

Signal Type
Analog RGBHV

Frequency Range
Up to 300 MHz

Return Loss
>25dB

Compatibility
Compatible with computers, monitors, HDTVs, video scalers, and security systems

Maximum Current
2A

RoHS Compliance
Yes

About VGA To 5 BNC Cable

Our offered VGA to 5 BNC Cable are widely acclaimed and appreciated by our customers due to their high quality and excellent performance. Top-notch quality material is been used by skillful professionals for developing these cables. Offered cables are used to connect computers with monitor and other related electronic devices. Apart from this, these cables are designed in conformation set with industry norms.

Features:

Excellent functionality
Easy to use
High durability

Superior Signal Transmission

Engineered for optimal analog RGBHV signal transfer, this cable boasts gold-plated VGA contacts and precision-molded connectors, reducing signal loss and enhancing conductivity. The high-frequency range (up to 300 MHz) and tinned copper braiding shield ensure clear, interference-free visuals even in demanding environments.

Versatile Compatibility & Easy Installation

Compatible with computers, monitors, HDTVs, projectors, video scalers, and security systems, this VGA to 5 BNC cable supports a wide range of professional and personal applications. The plug-and-play design, with secure locking features on both VGA and BNC ends, allows quick installation without the need for additional drivers or software.

Durable and Flexible Construction

Crafted with sturdy PVC insulation and jacket, as well as stranded copper conductors, the cable is both durable and flexible. Its robust build withstands frequent handling, and the color-coded BNC connectors make setup simple and reliable for any AV professional or enthusiast.

FAQ's of VGA To 5 BNC Cable:

Q: How do I connect the VGA to 5 BNC cable to my devices?

A: Simply connect the VGA 15-pin male end to your computer or graphics source and match each BNC male connector (red, green, blue, black, white) to the corresponding RGBHV inputs on your monitor, projector, or professional AV equipment. Secure the VGA with its screw-lock and the BNCs with their twist-lock mechanism for a stable connection.

Q: What types of devices are compatible with this cable?

A: This cable is compatible with computers, monitors, HDTVs, projectors, security systems, video scalers, and other devices that utilize VGA outputs and 5 BNC (RGBHV) video inputs, making it versatile for both professional and home AV applications.

Q: When is it beneficial to use a VGA to 5 BNC cable over a standard VGA cable?

A: A VGA to 5 BNC cable is particularly beneficial in professional environments where video clarity and signal integrity are critical, such as in broadcasting, multimedia presentations, and high-end security setups, or when your display equipment requires separate RGBHV BNC video inputs.

Q: Where can this cable be installed or used?

A: The cable is suited for use in offices, classrooms, recording studios, meeting rooms, security control rooms, home theaters, and event venues-anywhere you need to connect VGA-output devices to display systems or projectors with 5 BNC video inputs.

Q: What are the benefits of the cable's construction and materials?

A: With gold-plated VGA contacts, nickel-plated BNC connectors, tinned copper shielding, and flexible stranded copper conductors, the cable ensures long-lasting durability, stable transmission, and resistance to electromagnetic interference. Flame-retardant PVC insulation and RoHS compliance offer additional safety and environmental protection.

Q: Does this cable require any special installation process or drivers?

A: No special installation or drivers are needed. The cable offers a true plug-and-play experience with molded connectors for quick setup, enabling immediate use across compatible devices.
