Cat6 RJ45 Shielded Connectors

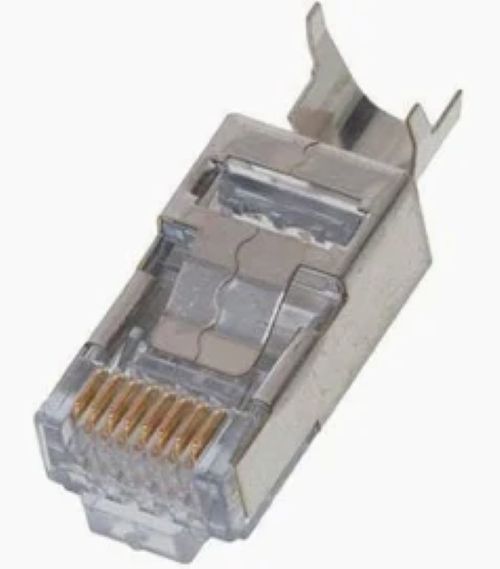

Name: Cat6 RJ45 Shielded Connectors
Brand: CHERRY CONNECTRONICS
Price: 25.0 INR
Availability: InStock

Price 25.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Cat6 RJ45 Shielded Connectors Specification

Diameter
Fits 23-24 AWG Cat6 Cable

Conductor Type
Solid/Stranded

Usage & Applications
LAN, Data Center, Server Room, Home/Office Networking

Operating Temperature
-40C to +85C

Cable Type
Cat6 LAN Cable

Conductor Shape
Accepts solid or stranded

Weight
Approx. 3 grams per piece

Install Type
Crimp-on

Locking Type
Standard RJ45 Locking Tab

Impedance
100 Ohms

Dielectiric Strength
>1000V AC/min

Rated Temperature
-40C to +85C

Tensile Strength
High (suitable for crimping and repeated connections)

Features
Shielded, Gold-plated contacts, Durable design

Number of Conductor
8 (for 8P8C configuration)

Insulation
Polycarbonate body

Product Type
RJ45 Cat6 Shielded Connector

Length
Standard connector size (typically 21.5mm)

Voltage
Rated for Ethernet low voltage applications

Insulation Material
Polycarbonate

Application
Networking, Data Transmission, LAN, Cat6 Ethernet connections

Conductor Material
Compatible with Copper/Copper-Clad wires

Jacket Material
Not Applicable (connector only)

Storage Temperature
-40C to +85C

Connector Color
Transparent with metallic shield

Shield Material
Metal Alloy (Typically Nickel-plated Brass)

Jacket Color
Not Applicable (connector only)

Dimension (L*W*H)
Approx. 21.5mm x 11mm x 8mm

Material
Polycarbonate with Metal Shield

Color
Transparent/Metallic

Size
Standard RJ45 Cat6 Ethernet Connector

RoHS Compliant
Yes

Insertion Life
1000+ mating cycles

Packaging
Typically available in packs of 10, 50, 100 pieces

Shielding Type
360-degree shielding for protection against EMI/RFI

Contact Plating
50 micro inches gold-plated contacts for enhanced conductivity

Pin Configuration
8P8C (8 Positions 8 Contacts)

Compatibility
Suitable for Cat6, Cat5e, and Cat5 Ethernet cables

About Cat6 RJ45 Shielded Connectors

Connectivity products should be on par with the Ethernet cable. We hold our CAT6 RJ45 modular plugs to high standards with our customer and their network in mind. These RJ45 Ethernet connectors are designed to work specifically with CAT6, and CAT7 cable.

Exceptional Shielding and Performance

The 360-degree shielding of these Cat6 RJ45 connectors protects signal integrity by minimizing EMI and RFI. The gold-plated contacts further enhance performance, resulting in reduced data loss and stable network connections even in environments with electrical interference.

Versatile Compatibility & Reliable Durability

Engineered to accommodate Cat6, Cat5e, and Cat5 Ethernet cables, these connectors adapt seamlessly to various networking needs. Their robust construction, including an 8P8C pin configuration and over 1000 mating cycles lifespan, ensures lasting and secure connectivity in both professional and domestic installations.

Sustainable and Convenient Packaging

Available in packs of 10, 50, and 100, these connectors suit both small projects and bulk requirements. The connectors are RoHS-compliant, signifying adherence to strict environmental standards, making them a responsible choice for distributors, exporters, and installers alike.

FAQ's of Cat6 RJ45 Shielded Connectors:

Q: How can I use Cat6 RJ45 shielded connectors with different types of Ethernet cables?

A: These connectors are compatible with Cat6, Cat5e, and Cat5 cables. Simply ensure that the cable is properly stripped and terminated, then insert it into the connector following the 8P8C pin configuration. Secure the connection using a suitable crimping tool.

Q: What advantages do 50 micro inches of gold-plated contacts provide?

A: The 50 micro inch gold plating on the contacts offers enhanced conductivity, minimizing signal loss and providing a more reliable data transmission. The gold also resists corrosion, prolonging the lifespan of the connector.

Q: When should I consider using shielded RJ45 connectors?

A: Shielded RJ45 connectors are ideal in environments where electromagnetic interference (EMI) or radio frequency interference (RFI) might impact signal quality, such as in industrial, medical, or densely cabled spaces.

Q: Where can I source these connectors in bulk quantities?

A: These connectors are typically available through network dealers, distributors, exporters, importers, manufacturers, suppliers, traders, and wholesalers. Packs of 10, 50, or 100 allow flexibility for projects of any size.

Q: What is the process for installing these connectors?

A: To install, strip your Ethernet cable, arrange the wires according to the required standard, insert them into the connector, and crimp it securely. The 8P8C configuration ensures all wires are accurately seated for optimal performance.

Q: What are the benefits of the 360-degree shielding in these connectors?

A: The full 360-degree shielding provides comprehensive protection from EMI and RFI, which helps maintain strong, uninterrupted network performance and protects sensitive data transmissions in vulnerable settings.

Q: Are these connectors safe for use in environmentally regulated areas?

A: Yes, these connectors are RoHS compliant, ensuring that they are free from hazardous substances and safe for installation in environments that require environmentally responsible products.
