Cat5e UTP Patch Cord

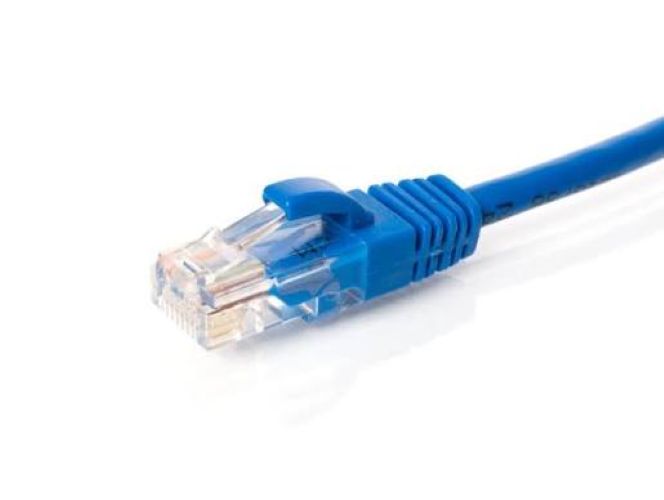

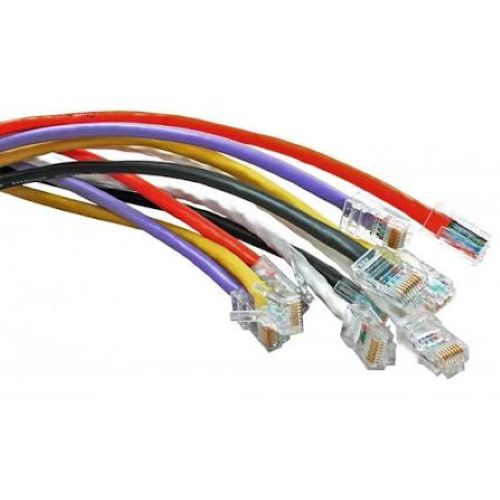

Name: Cat5e UTP Patch Cord
Brand: CHERRY CONNECTRONICS
Price: 18.0 INR
Availability: InStock

Price 18.0 INR/ Meter

Get a Price/Quote

Cat5e UTP Patch Cord Specification

Core Number
4 pairs (8 cores)

Locking Type
RJ45 latch clip

Number of Conductor
8 (4 twisted pairs)

Cable Type
CAT5e UTP Patch

Weight
Varies by cable length (approx. 30g/m)

Operating Temperature
-20C to +60C

Tensile Strength
100 N

Core Material
Copper

Install Type
Plug and Play

Impedance
100 Ohms 15%

Rated Temperature
-20C to +60C

Features
High-speed data transmission, Gold plated contacts, Durable and flexible, Snagless design, RoHS compliant

Armored Material
Not applicable for UTP

Diameter
Approx. 5.2mm

Conductor Shape
Round

Conductor Type
Stranded (Patch Cords)

Insulation
High-density Polyethylene (HDPE)

Usage & Applications
Ethernet networking, router to switch, patch panels

Dielectiric Strength
1.5kV/1min

Product Type
Cat5e UTP Patch Cord

Length
Available in multiple lengths (e.g., 1m, 2m, 3m, 5m, 10m)

Voltage
300V max

Insulation Material
Polyethylene (PE)

Application
Networking, LAN, Home and Office Use, Data transfer

Conductor Material
Copper

Jacket Material
PVC (Polyvinyl Chloride)

Storage Temperature
-20C to +80C

Connector Color
Transparent

Shield Material
Unshielded (UTP - Unshielded Twisted Pair)

Jacket Color
Gray

Dimension (L*W*H)
As per length (Standard Diameter: 5-6mm)

Material
Copper, PE, PVC

Color
Gray (other colors may be available)

Size
Available in various standard lengths

Contact Material
Gold Plated

Flame Retardant
Yes

Pairs
4 (Twisted Pair)

Compliance
ANSI/TIA-568-C.2, ISO/IEC 11801

Packaging Type
Polybag or Blister Pack

Connector Type
RJ45 male to RJ45 male

Maximum Data Rate
1 Gbps (Gigabit Ethernet)

Cross section
24 AWG

Return Loss
-20 dB

Bandwidth
100 MHz

Compatible Devices
Switches, Routers, PCs, Laptops, Modems

Cat5e UTP Patch Cord About

Cat 5 patch cord plug to plug available in all length 1.50 mtr to 30 mtr ready ,good quality .A Cat5e UTP patch cord (Category 5 enhanced, Unshielded Twisted Pair) is an electrical cable used to connect end-user hardware, such as desktop PCs, Wi-Fi routers, or smart TVs, to network wall outlets, network switches, and patch panels. It serves as the foundation for standard local area networks (LANs), offering a balanced mix of flexibility, transmission speed, and affordability.

Superior Connectivity and Performance

The Cat5e UTP Patch Cord is engineered for seamless gigabit Ethernet connections, supporting data transmission speeds of up to 1 Gbps across 100 MHz bandwidth. Its 8-core (4-pair) construction ensures reduced crosstalk and reliable signal integrity, making it ideal for high-performance networking in homes, offices, and data centers.

Durable and Flexible Design

Built with quality materials like stranded copper conductors, high-density polyethylene insulation, and a flexible PVC jacket, this patch cord resists daily wear while maintaining peak functionality. The snagless design and gold-plated RJ45 connectors provide enhanced durability and protection during frequent plug-and-play operations.

Compliance and Safety Standards

This cable adheres to prominent international standards, including ANSI/TIA-568-C.2 and ISO/IEC 11801, ensuring dependable compatibility with most networking equipment. Flame retardant materials and RoHS compliance further guarantee that safety and environmental guidelines are met for peace of mind during installation and use.

FAQ's of Cat5e UTP Patch Cord:

Q: How do I install the Cat5e UTP Patch Cord in my network setup?

A: Simply plug the RJ45 male connectors into the Ethernet ports of your devices such as switches, routers, PCs, or modems. The plug-and-play design allows immediate use without any configuration or special tools required.

Q: What devices are compatible with this patch cord?

A: This Cat5e patch cord is compatible with a variety of networking devices, including switches, routers, patch panels, computers, laptops, and modems. It is suitable for both home and office LAN setups.

Q: When should I use a Cat5e cable instead of other Ethernet cables?

A: Choose Cat5e cables for networking tasks requiring up to 1 Gbps data transfer rates and a 100 MHz bandwidth. They are a cost-effective solution for standard office, home, and general data transmission applications.

Q: Where can I use this Cat5e UTP Patch Cord?

A: The cable is suitable for indoor environments such as offices, homes, and data centers. Its flame-retardant PVC jacket adds safety for in-wall and workstation connectivity applications.

Q: What are the benefits of gold-plated RJ45 connectors?

A: Gold-plated contacts enhance signal stability, provide corrosion resistance, and ensure reliable long-term connectivity by reducing electrical resistance.

Q: Is the patch cord durable enough for frequent installations or movements?

A: Yes, its stranded copper design, flexible PVC jacket, and snagless construction are intended for frequent plugging, unplugging, and cable movement, ensuring lasting durability.

Q: How does this cable comply with safety and environmental standards?

A: The patch cord meets ANSI/TIA-568-C.2 and ISO/IEC 11801 standards. It is flame retardant and RoHS compliant, affirming adherence to electrical safety and environmental protection requirements.
