Heat Shrinkable Sleeves

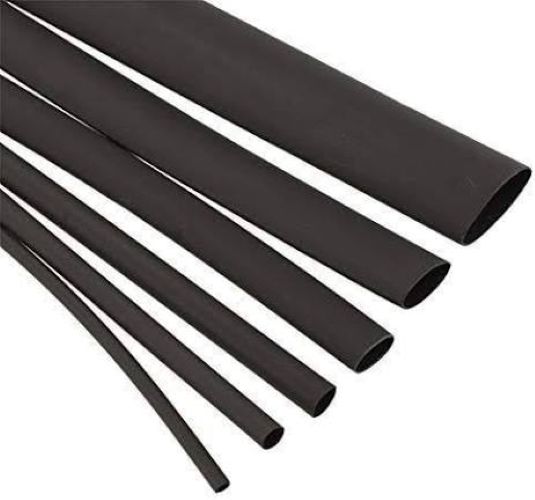

Name: Heat Shrinkable Sleeves
Brand: CHERRY CONNECTRONICS
Price: 4.0 INR
Availability: InStock

Price 4.0 INR/ Unit

Get a Price/Quote

MOQ : 100 Units

Heat Shrinkable Sleeves Specification

Tensile Strength
>10 MPa

Cable Type
Applicable for various cable types

Diameter
1mm - 50mm (before heat shrink, 0.5x after shrink)

Usage & Applications
Electrical insulation, wire harnessing, abrasion protection, environmental sealing

Weight
Depends on size; lightweight

Rated Temperature
-55C to +125C

Dielectiric Strength
15 kV/mm

Insulation
Excellent electrical insulation

Features
Flame Retardant, Flexible, High Shrink Ratio, Chemical Resistant, Waterproof, UV Resistant

Operating Temperature
-55C to +125C

Install Type
Slip-on, heat with heat gun or lighter

Product Type
Heat Shrinkable Sleeve

Length
Standard rolls of 1 meter, can be custom cut

Voltage
Rated up to 600V

Insulation Material
Cross-linked Polyolefin

Application
Wire insulation, cable bundling, protection and identification

Jacket Material
Polyolefin

Storage Temperature
Below 30C, dry place

Jacket Color
Black

Dimension (L*W*H)
Varies by diameter and length (customizable)

Material
Polyolefin

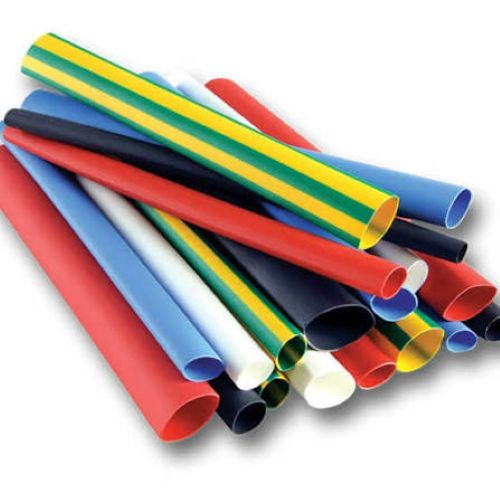

Color
Black (other color options upon request)

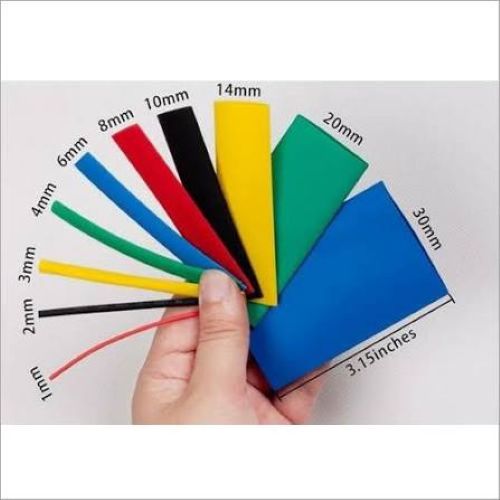

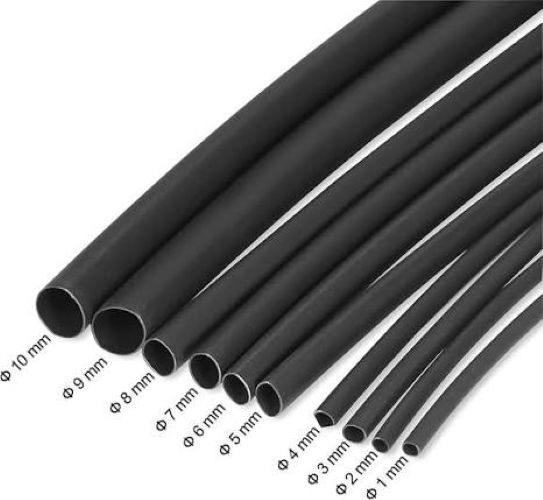

Size
1mm to 50mm diameter (before shrinking)

Continuous Operation Voltage
Up to 1000V (variant dependent)

Full Recovery Temperature
125C

Shrink Ratio
2:1 (standard), available up to 3:1 and 4:1

Longitudinal Shrinkage
< 10%

Water Absorption
< 0.5% (ASTM D570)

Flammability Rating
UL 224 VW-1

RoHS Compliance
Yes

Surface Finish
Smooth

Minimum Shrink Temperature
70C

Elongation at Break
>200%

Heat Shrinkable Sleeves About

Heavy-duty industrial cable rampsFor high-traffic environments, these ramp-style protectors are made from durable rubber or polyurethane to withstand heavy loads, including vehicle traffic.

DOLPHY Rubber Cable Protectors: Dolphy offers various heavy-duty rubber cable protectors for industrial sites and roads, available in multiple channel configurations.
H2 Safety India Private Limited 5 Channel Cable Protector: A large cable ramp made from PVC and plastic designed to protect cables from vehicles.
Jamdagni Safety India Co. Rubber Cable Protector 4 Channel: This protector is made from durable, impact-resistant rubber and features high-visibility yellow markings.

Alternative cable management methodsFor a cleaner look, you can conceal cables using a variety of products and techniques.

Cable management raceways: These can be mounted on walls and painted to match the wall color, hiding wires inside.
Cord cover kits: Available in various materials and colors, these kits help to organize and hide wires for entertainment centers and other setups.
Adhesive clips and ties: For simple organization, cable ties or clips can bundle wires together or secure them along a surface.
Furniture and decor: You can hide cables behind furniture, inside a decorative basket, or even use art to conceal wiring.

Reliable Protection and Versatility

Engineered for durability, these heat shrinkable sleeves provide superior protection against environmental hazards such as moisture, UV exposure, and abrasion. Perfect for electrical insulation, wire harnessing, and identification, they accommodate a diverse range of cable diameters due to their high shrink ratios and flexibility. Their UL 224 VW-1 flammability rating and RoHS compliance ensure safe and environmentally friendly operation in critical installations.

Wide Application Scope

Applicable for various cable types and suitable for electrical, automotive, industrial, and telecommunication fields, our heat shrink sleeves safeguard connections and enhance component longevity. They are ideal for use by manufacturers, distributors, installers, and contractors seeking reliable insulation and environmental sealing solutions. Custom lengths and diameters cater to unique project requirements, while compatibility with standard heat guns facilitates seamless installation.

FAQ's of Heat Shrinkable Sleeves:

Q: How are heat shrinkable sleeves installed on wires or cables?

A: To install, simply slip the sleeve onto the wire or cable, then apply heat using a heat gun or lighter. The sleeve shrinks tightly around the substrate when heated to a minimum of 70C and achieves full recovery at 125C, ensuring a secure, insulated fit.

Q: What are the primary benefits of using these heat shrinkable sleeves?

A: These sleeves offer excellent electrical insulation, mechanical protection, and resistance to water, chemicals, and UV light. Key benefits include flame retardancy (UL 224 VW-1), flexibility, high shrink ratio, and a broad operating temperature range from -55C to +125C.

Q: When should I use a higher shrink ratio such as 3:1 or 4:1?

A: Higher shrink ratios, like 3:1 or 4:1, are ideal when you need to cover objects with significant diameter differences or irregular shapes. They ensure a snug fit even when there are large variations between the pre-shrink and final diameters.

Q: Where are these sleeves commonly used?

A: These heat shrink sleeves are widely used in electrical wiring, automotive repairs, telecommunications, and industrial applications for wire insulation, cable bundling, abrasion protection, and environmental sealing.

Q: What is the process for ordering custom sizes or colors?

A: Custom sizes (diameter and length) and alternative colors can be ordered by specifying your requirements during purchase. Please contact the supplier or manufacturer with your needed dimensions and color preferences for tailored solutions.

Q: What are the safety and compliance features of the sleeves?

A: The sleeves are flame retardant (UL 224 VW-1), RoHS compliant, and feature minimal water absorption (<0.5% per ASTM D570), making them safe for use in demanding environments and ensuring compliance with industry standards.
