Name: Antenna Connectors
Brand: CHERRY CONNECTRONICS

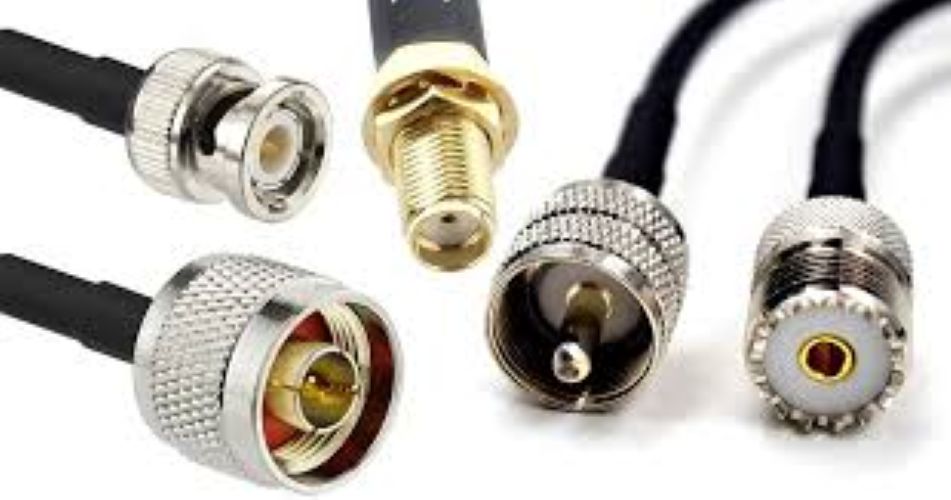

Price: 60.0 INR
Availability: InStock

Price 60.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Antenna Connectors Specification

Install Type
Screw/Snap-on

Insulation
PTFE

Conductor Shape
Round

Diameter
Approx. 7mm to 16mm (connector head)

Number of Conductor
1

Operating Temperature
-40C to +85C

Cable Type
Coaxial cable (RG58, RG174, RG6, etc.)

Locking Type
Threaded, bayonet, or snap lock

Weight
Approx. 10-30 grams each, depending on type

Features
High signal transmission, low loss, corrosion-resistant, precision threaded couplings

Core Number
Single-Core

Usage & Applications
Antenna connections, wireless, networking, audio/video, lab test equipment

Tensile Strength
High mechanical resistance for screw/mating cycles

Impedance
50 Ohm / 75 Ohm (depending on model)

Core Material
Copper

Dielectiric Strength
1000 Vrms (at sea level)

Rated Temperature
-40C to +85C

Conductor Type
Single-core

Product Type
RF Antenna Connector

Length
Customizable as per requirement

Voltage
Rated up to 500V

Insulation Material
PTFE (Polytetrafluoroethylene)

Application
RF equipment, antennas, telecom, test instruments, wireless communication

Conductor Material
Copper or brass (gold plated)

Jacket Material
PVC/Polyethylene

Storage Temperature
-55C to +125C

Connector Color
Silver, gold (plating on contacts)

Shield Material
Tinned copper or aluminum braid

Jacket Color
Black

Dimension (L*W*H)
Varies by connector type (typically 25mm x 14mm x 14mm)

Color
Silver/Gold/Black (depends on connector/jacket)

Material
Brass/Nickel plated, Gold plated for some models

Size
Standard (BNC, TNC, N-type, SMA, UHF, etc.)

Waterproof Rating
IP67 (for selected models)

Mounting Style
Panel mount, cable mount, PCB mount

Mating Cycles
500 cycles

RoHS Compliance
Yes

Flame Retardant
Yes

VSWR
1.3 (depends on frequency)

Packaging
Plastic bag/Box packaging

Insertion Loss
Low (specifically designed for RF signals)

Gender
Male/Female

Insulation Resistance
>1000 M

Connector Types Supported
BNC, TNC, N-type, SMA, UHF (PL-259/SO-239)

Contact Resistance
3 m (center), 2 m (outer)

Frequency Range
DC-6 GHz (varies by connector type)

Plating
Nickel/Galvanized with gold plated center pin

About Antenna Connectors

Connectors for antena uhf,N,tnc,sma all are available.Antenna connectors are RF (Radio Frequency) interfaces used to connect coaxial cables to antennas, receivers, transmitters, and signal boosters. Selecting the right connector depends entirely on your specific device, operating frequency, and power requirements.

Engineered for Reliable RF Signal Transmission

Combining gold-plated contacts, precision machined threads, and PTFE insulation, these connectors are crafted for minimal signal loss and high frequency integrity. The robust mechanical construction ensures longevity even in demanding environments, making them well-suited for laboratory equipment, telecom, and RF systems.

Versatile Mounting and Connector Options

Available in cable, panel, and PCB mount styles, with a choice of connector types like BNC, TNC, N-type, SMA, and UHF (PL-259/SO-239). Customizable sizes and lengths allow seamless integration into your existing setups, whether for indoor labs or outdoor antenna installations.

Rugged and Compliant for Diverse Applications

Select models meet IP67 waterproofing for extreme environments while being flame-retardant and RoHS compliant. The connectors' brass or nickel-plated bodies and gold-plated contacts ensure both safety and performance for a variety of applications, including telecom, wireless, and test instrumentation.

FAQ's of Antenna Connectors:

Q: What frequency range do these antenna connectors support?

A: These connectors are designed for frequencies ranging from DC up to 6 GHz, though the exact supported frequency may vary depending on the connector type, such as BNC, SMA, or N-type.

Q: How are these connectors typically installed and where can they be used?

A: Installation options include panel mount, cable mount, and PCB mount, allowing them to fit a wide range of equipment. They are commonly used in RF equipment, antennas, telecommunications, wireless systems, and laboratory test instruments.

Q: What benefits do gold-plated center pins and PTFE insulation provide?

A: Gold-plated center pins ensure superior conductivity and resistance to corrosion, enhancing signal quality. PTFE insulation offers high dielectric strength and stability over a wide temperature range, contributing to safe and reliable performance.

Q: Are these connectors suitable for outdoor or harsh environments?

A: Yes, selected models feature IP67 waterproofing and flame-retardant properties, making them ideal for outdoor and demanding indoor applications where moisture or safety regulations are concerns.

Q: What is the mating cycle rating and how does it affect usage?

A: These connectors are rated for up to 500 mating cycles, providing durability for repeated connections and disconnections without significant degradation in performance, suitable for applications requiring frequent maintenance or setup changes.

Q: Which connector types and cable standards are supported?

A: They support industry-standard types including BNC, TNC, N-type, SMA, and UHF (PL-259/SO-239), and are compatible with coaxial cables such as RG58, RG174, and RG6, ensuring compatibility with most RF systems.

Q: What are the main advantages of choosing these connectors?

A: Key advantages include high signal integrity with low insertion loss, excellent mechanical strength, corrosion resistance, RoHS compliance, customizable lengths, and compatibility with both 50 Ohm and 75 Ohm systems, making them flexible and reliable for diverse RF needs.
