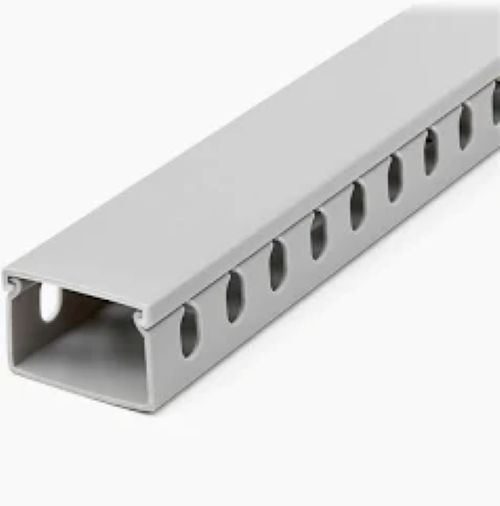

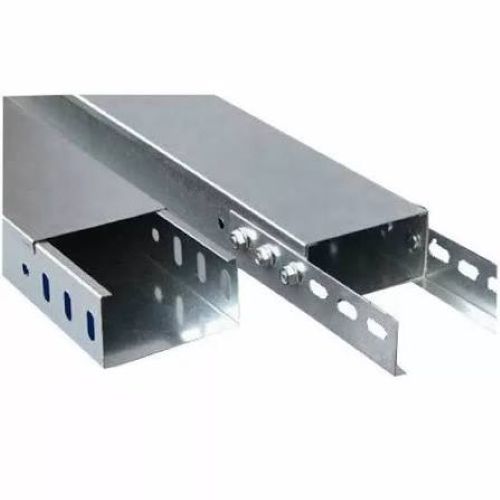

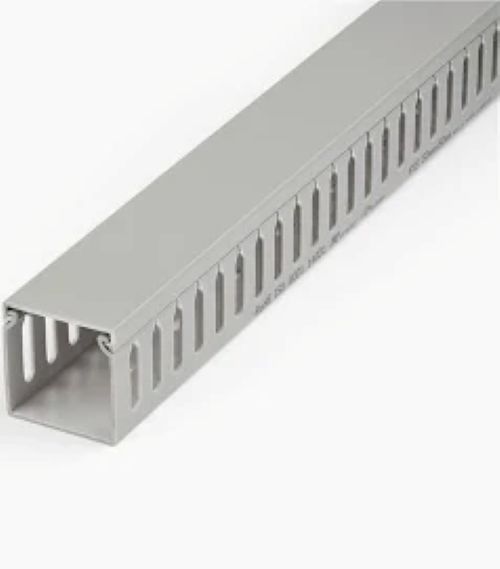

Name: Raceway Cable Tray
Brand: CHERRY CONNECTRONICS
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Raceway Cable Tray Specification

Locking Type
Snap-on cover locking

Install Type
Screw-mounted to panels or surfaces

Rated Temperature
-25C to +60C

Insulation
High dielectric strength PVC, self-extinguishing

Features
Slotted design for easy cable entry and exit, Lightweight, Corrosion resistant, Easy installation, Smooth surface finish

Operating Temperature
-25C to +60C

Dielectiric Strength
30 kV/mm (for insulating PVC material)

Tensile Strength
Above 40 MPa (for standard rigid PVC)

Usage & Applications
Industrial automation panels, Commercial electrical installations, Data centers

Cable Type
Suitable for power, control, and instrumentation cables

Weight
Varies by size (e.g., approx. 0.3-1 kg/m)

Product Type
Raceway Cable Tray / PVC Cable Duct

Length
2 meters (typical, can vary by manufacturer)

Voltage
Non-conductive (for use with low-voltage and control wiring)

Insulation Material
PVC (Polyvinyl Chloride)

Application
Cable management in electrical panels, distribution boards, and control cabinets

Jacket Material
PVC (Integrated body, no separate jacket)

Storage Temperature
-15C to +60C

Jacket Color
Light Grey

Dimension (L*W*H)
Customizable, typical sizes include 25x25mm, 50x50mm, etc.

Color
Grey (standard), white or black on request

Material
Rigid PVC

Size
25x25mm, 50x50mm, 75x75mm, custom sizes available

Fire Rating
Self-extinguishing as per UL94V-0

UV Resistance
Standard PVC; UV stabilized versions available

Cover Type
Removable, slotted cover

Slot Pitch
10-20 mm (distance between slot centers)

Surface Finish
Glossy or matt finish

Halogen Content
Halogen-free options available

Mounting Method
Surface or rack mountable

Chemical Resistance
Resistant to most acids, alkalis, and oils

Slot Width
5-8 mm (varies by tray size)

Standards Compliance
RoHS, UL, IEC 61084

About Raceway Cable Tray

Easily Manage Your Network and Data Cables: Designed with parallel openings on both sidewalls, making it convenient for you to assemble and wire. Automated cutting may cause uneven or incomplete teeth at the ends, but the cover is smooth and the raceways appearance and performance remain unaffected.

Reliable Fire and Safety Standards

This cable tray is self-extinguishing as per UL94V-0, ensuring enhanced fire safety in critical applications. It is thoroughly tested to meet or exceed UL, RoHS, and IEC 61084 standards. With its robust fire resistance, it protects sensitive electrical and instrumentation cables, giving peace of mind for installations in commercial and industrial settings.

Versatile and Durable Construction

Manufactured from rigid PVC, the tray is corrosion and chemical resistant, with high tensile strength and smooth surface finish. UV-stabilized and halogen-free versions cater to both indoor and outdoor usage. The lightweight structure, together with custom sizing options, suits a variety of mounting methods, making it an adaptable solution for cable management challenges.

User-Friendly Installation and Maintenance

Thanks to its slotted and removable cover design with snap-on locking, cable routing and maintenance are simplified. The tray can be surface or rack mounted using screw fixes, and its modular lengths (typically 2 meters) allow for easy expansion or reconfiguration in existing panels or enclosures. Both glossy or matt finish options integrate seamlessly with panel aesthetics.

FAQ's of Raceway Cable Tray:

Q: How does the Raceway Cable Tray ensure fire safety in electrical panels?

A: The Raceway Cable Tray is constructed from self-extinguishing PVC material, certified to UL94V-0, which means it stops burning rapidly once the ignition source is removed, thereby enhancing the overall fire safety of your electrical installations.

Q: What are the mounting options for this cable tray?

A: The tray can be mounted either on a surface or on a rack using standard screw fixes, allowing for versatile installation in electrical panels, distribution boards, or control cabinets.

Q: When should I use halogen-free or UV-stabilized versions of this cable tray?

A: Halogen-free trays are recommended for environments where low toxicity during fire events is critical, such as public buildings or sensitive work areas. UV-stabilized options are ideal for outdoor or sun-exposed installations to resist degradation from ultraviolet light.

Q: Where can this cable tray be deployed effectively?

A: This product is suitable for various settings, including industrial automation panels, commercial electrical installations, and data center cable management, thanks to its chemical, corrosion, and UV resistance.

Q: What is the typical installation process for the slotted cable tray?

A: Installers secure the tray to the chosen surface or rack with screws, insert cables through slotted openings, and snap on the removable cover for easy cable access and maintenance. Custom sizes and finishes allow adaptation to different panel requirements.

Q: How does the slotted design benefit cable management?

A: The slotted design allows for convenient cable entry and exit at multiple points along the tray, simplifying the routing and organization of power, control, and instrumentation cables without compromising insulation or protection.

Q: What are the key advantages of using this PVC cable tray over metal alternatives?

A: PVC cable trays are lightweight, corrosion-resistant, and non-conductive, offering high dielectric strength (30 kV/mm) and easy installation. They are ideal for low-voltage and control wiring, and provide a smoother, customizable surface to reduce cable abrasion.
