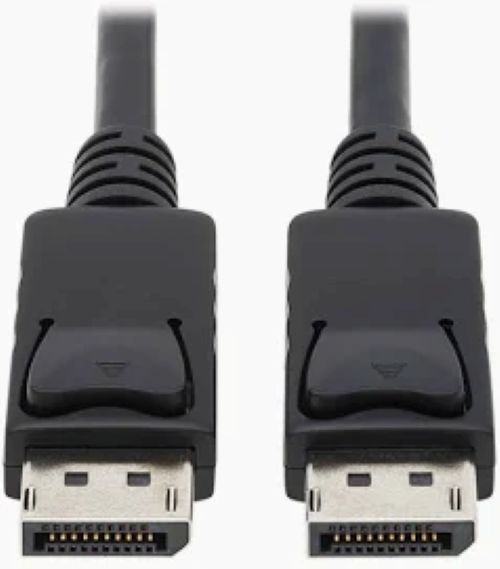

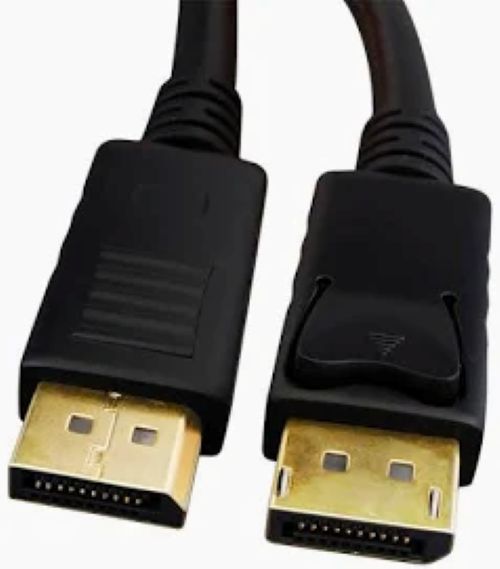

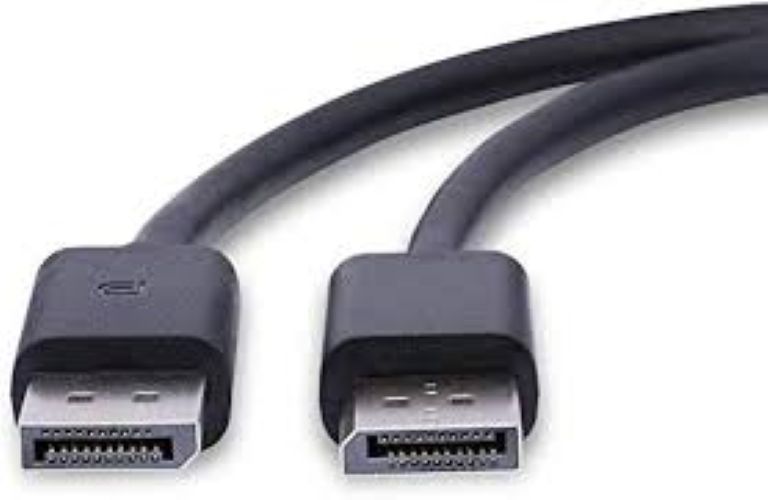

Name: DISPLAY PORT TO DISPLAY PORT (DP TO DP)
Brand: CHERRY CONNECTRONICS
Price: 50.0 INR
Availability: InStock

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DISPLAY PORT TO DISPLAY PORT (DP TO DP) Specification

Conductor Type
Stranded

Impedance
100 Ohms

Diameter
Approx. 6mm

Operating Temperature
0C to 70C

Rated Temperature
-20C to +80C

Conductor Shape
Round

Cable Type
DP (DisplayPort) to DP (DisplayPort)

Number of Conductor
20 pins

Usage & Applications
Used for high-definition video and audio transmission between PCs and monitors

Locking Type
Button-lock secure connection

Install Type
Plug and Play

Features
Gold-plated connectors, High-definition video and audio transmission, Secure locking mechanism, Durable build

Weight
Varies by length (typically 100g - 300g)

Core Number
1

Core Material
Copper

Insulation
Polyethylene

Tensile Strength
High tensile PVC jacket

Dielectiric Strength
250V AC/min

Product Type
DisplayPort to DisplayPort Cable

Length
Available in 1m, 2m, 3m, 5m (custom lengths possible)

Voltage
30V

Insulation Material
PVC

Application
Connecting display devices such as monitors, projectors, and graphic cards

Conductor Material
Tinned Copper

Jacket Material
PVC

Storage Temperature
-20C to +70C

Connector Color
Silver/Black

Shield Material
Aluminum Mylar foil & Braided copper

Jacket Color
Black

Dimension (L*W*H)
Standard cable dimensions; varies with length

Color
Black

Material
PVC, Copper, Gold plating

Size
Standard DP Cable Size

Signal Type
Digital

Resolution Support
Supports up to 4K@60Hz, 2K@144Hz, 1080p@240Hz (DP 1.2/1.4)

Flame Retardant
Yes

Reinforcement
Strain relief molded connectors

Audio Channel Support
8-channel digital audio

Outer Diameter of Cable
6.0mm nominal

Compatibility
Backwards compatible with DP 1.1, 1.2, and 1.4 standards

Connector Type
Male to Male

Bandwidth Support
Up to 21.6 Gbps (DisplayPort 1.2), 32.4 Gbps (DisplayPort 1.4)

Plug Material
Gold-plated

RoHS Compliant
Yes

About DISPLAY PORT TO DISPLAY PORT (DP TO DP)

Cable Type: DisplayPort (DP) Male to DisplayPort (DP) Male, Length: 1.5 meters
High-Definition Clarity: Supports up to 4K UHD resolution (38402160 @ 60Hz) for crystal-clear video output.
Seamless Connectivity: Connects DisplayPort-enabled desktops, laptops, or graphics cards to monitors, projectors, and HDTVs.
Smooth Visuals: Supports High Refresh Rates (2K @ 144Hz / 1080p @ 240Hz), ideal for gaming and professional use.
Multi-Stream Support: Compatible with DP, DP++, and DisplayPort++ standards.
Audio & Video: Transmits both high-definition video and digital audio through a single cable.
Secure Connection: Locking connector design prevents accidental disconnections & Plug & Play: No drivers or external power required

High Bandwidth and Versatile Resolution Support

Engineered for performance, our DP to DP cable offers high bandwidth, supporting up to 21.6 Gbps (DP 1.2) and 32.4 Gbps (DP 1.4). It effortlessly transmits high-definition content, including 4K@60Hz, 2K@144Hz, and 1080p@240Hz formats, enabling crisp visuals and smooth video transitions for professional or gaming environments alike.

Robust Design for Lasting Connectivity

Rigorously constructed with gold-plated connectors and a high tensile PVC jacket, this cable is built for consistent, error-free transmission. The secure button-lock mechanism prevents accidental disconnection, while aluminum mylar foil and braided copper shielding protect against signal interference, making it reliable for both home and office use.

Seamless Installation and Broad Compatibility

The cable features a plug-and-play install type and is backwards compatible with DisplayPort 1.1, 1.2, and 1.4 standards, ensuring easy integration with your existing devices. Whether you are a dealer, distributor, or end-user, this cable offers straightforward setup and robust digital transmission quality for all your display needs.

FAQ's of DISPLAY PORT TO DISPLAY PORT (DP TO DP):

Q: How do I connect a DisplayPort to DisplayPort (DP to DP) cable between my devices?

A: Simply insert each male connector into the DisplayPort input/output of your monitor, projector, or graphics card. The secure button-lock mechanism ensures a firm connection, preventing accidental disconnection during use.

Q: What types of resolutions and refresh rates does this DP to DP cable support?

A: This cable supports up to 4K resolution at 60Hz, 2K at 144Hz, and 1080p at 240Hz, provided your devices and DisplayPort version (1.2 or 1.4) are compatible with these formats.

Q: When should I consider using a DisplayPort to DisplayPort cable over HDMI or other alternatives?

A: Consider using DP to DP cables when you require higher refresh rates, enhanced bandwidth (up to 32.4 Gbps), and lower latency for gaming, professional editing, or multi-monitor setups, as well as support for 8-channel digital audio.

Q: Where can I use this cable in my setup?

A: This cable is ideal for connecting desktop PCs, laptops, graphics cards, monitors, and projectors in offices, homes, gaming environments, and professional workstations that have DisplayPort interfaces.

Q: What ensures the durability and reliability of this DisplayPort cable?

A: Durability is enhanced through gold-plated connectors, a strain relief molded build, flame-retardant PVC insulation, and shielding with aluminum mylar foil and braided copper, making it resistant to wear and signal interference.

Q: How does this cable benefit installers and system integrators?

A: With its broad compatibility, plug-and-play design, and availability in multiple lengths (1m-5m), this cable simplifies installations in any environment, reducing downtime and maintenance needs for dealers, distributors, and system integrators.

Q: What are the advantages of the button-locking mechanism featured on this cable?

A: The button-locking mechanism secures the connection, preventing accidental unplugging and ensuring continuous signal transmission-a key benefit for uninterrupted display performance in critical applications.
