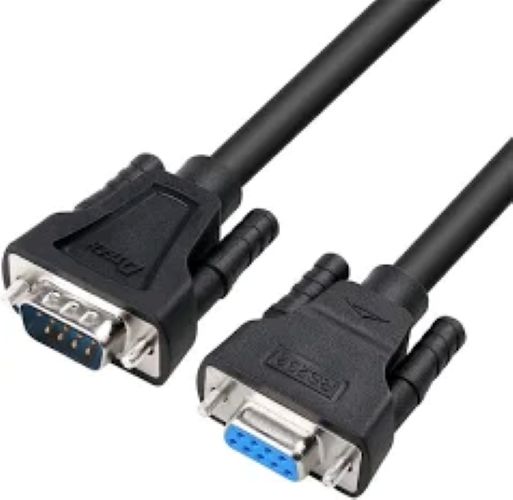

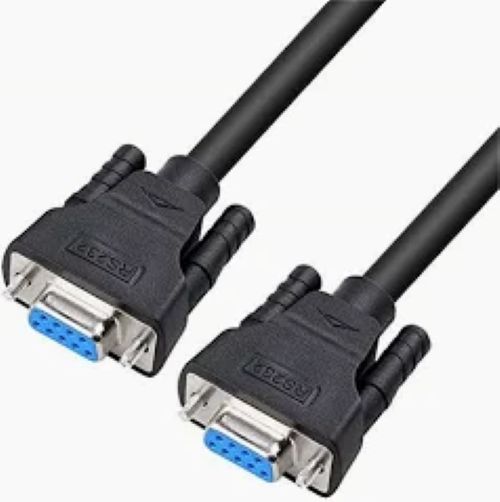

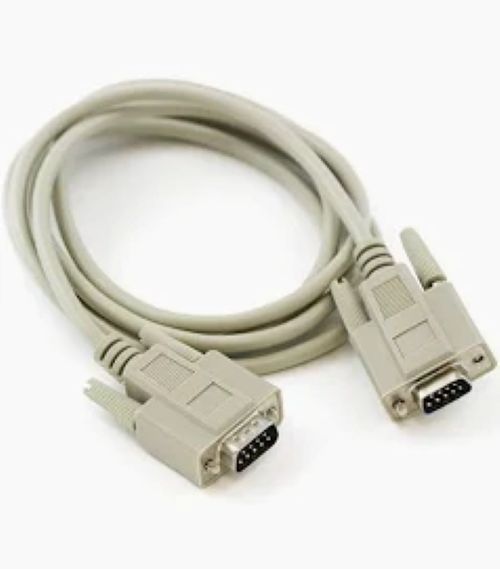

9 PIN SERIAL CABLE

Name: 9 PIN SERIAL CABLE
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

9 PIN SERIAL CABLE Specification

Diameter
6mm

Operating Temperature
-20C to +70C

Features
Durable, Plug and Play, Secure Connection, High-Speed Data Transfer, Molded Strain Relief

Locking Type
Thumbscrew lock

Core Number
1

Conductor Shape
Round

Rated Temperature
-20C to +80C

Cable Type
RS232 Serial Cable

Install Type
External

Tensile Strength
1500N

Insulation
PVC

Impedance
Approx. 80 Ohms

Core Material
Copper

Weight
Approx. 80 grams

Usage & Applications
Data Transfer, Serial Communication, Industrial Automation, POS Devices, Instrumentation

Dielectiric Strength
AC 500V/min

Conductor Type
Stranded

Number of Conductor
9

Product Type
9 Pin Serial Cable (DB9 Male to Female)

Length
1.5 Meter

Voltage
30V

Insulation Material
PVC

Application
Computer Serial Interface, Modem Communication, CNC Machine, Networking Devices, Data Transfer

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-25C to +85C

Connector Color
Metallic Silver

Shield Material
Aluminum Foil

Jacket Color
Black

Dimension (L*W*H)
1500mm x 16mm x 6mm

Color
Black with Metallic Connectors

Material
PVC, Copper

Size
9 Pin

Flame Retardant
Yes

Contact Resistance
15 m

EAN/UPC Code
Available on packaging

Minimum Bending Radius
30mm

Contact Plating
Gold plated contacts

Connector Type
DB9 Male to DB9 Female

Connector Housing
Die-cast Zinc Alloy

Pin Material
Brass

Insulation Resistance
1000 M @ 500V DC

Cable Shielding
Foil and Braid

RoHS Compliant
Yes

About 9 PIN SERIAL CABLE

We make all types of Moulded Cables against order in bulk as per requirement.Cable tie injection moulds are highly specialized, high-cavity precision tools engineered to manufacture nylon zip ties. Because cable ties feature thin, flat tails with tiny locking teeth and a hollow pawl head, the tooling must withstand extreme injection pressures and demanding thermal cooling cycles without flashing or warping. [1, 2, 3, 4, 5]

Reliable Performance and Build Quality

Constructed using quality copper stranded conductors and gold-plated contacts, this 9 PIN SERIAL CABLE offers minimal contact resistance (15 m) and high insulation resistance (1000 M @ 500V DC) for consistent connectivity. The die-cast zinc alloy connectors and metallic silver finish guarantee mechanical integrity and corrosion resistance, while the molded strain relief reduces cable stress for extended lifespan.

Shielded for Interference-Free Data Transfer

Equipped with double shielding (foil and braid) and a sturdy 6mm diameter PVC jacket, this cable minimizes electrical noise and external signal disruptions. It supports high-speed data communication vital in sensitive environments such as CNC machines, industrial automation, and networking devices, ensuring secure, reliable, and swift information transfer.

Versatile Applications and Easy Installation

This plug-and-play cable is suitable for a vast array of devices requiring RS232 serial interfaces, including computers, modems, POS devices, and industrial instrumentation. The thumbscrew locking design ensures secure connections, while the flexible 30mm bending radius simplifies routing in tight spaces, making it ideal for both permanent and temporary setup requirements.

FAQ's of 9 PIN SERIAL CABLE:

Q: How do I install the 9 PIN SERIAL CABLE for data transfer or serial communication?

A: Simply connect the DB9 Male end to your source device and the DB9 Female end to your receiving device. Secure each connector using the thumbscrew lock for a stable, vibration-resistant connection. No additional drivers are required, as the cable supports plug-and-play operation.

Q: What features make this serial cable suitable for industrial and commercial use?

A: Its build quality features gold-plated brass contacts, die-cast zinc alloy housing, robust PVC insulation, and flame retardance, ensuring durability and long operational life. Double shielding (foil and braid) helps maintain signal integrity in noisy environments, ideal for industrial automation, CNC machines, and networking devices.

Q: When should I use a DB9 serial cable instead of other data transfer cables?

A: Use this RS232 9 PIN SERIAL CABLE when interfacing with devices that communicate using standard RS232 serial signals, such as older computers, modems, industrial equipment, POS terminals, and instrumentation. It's well-suited for scenarios where reliable and secure serial data transmission is required.

Q: Where can this cable be used within my operations?

A: This cable is versatile and can be deployed in offices, industrial workshops, server rooms, laboratories, or retail setups wherever a serial data connection is needed, including external device linking, equipment diagnostics, and network configurations.

Q: What process ensures the cable remains RoHS compliant and safe for use?

A: The cable is manufactured following stringent quality and environmental controls, utilizing RoHS-compliant materials, flame-retardant PVC, and lead-free fabrication, making it safe for use in virtually any professional or industrial environment.

Q: Can the cable handle frequent bending or relocation?

A: Yes, the 9 PIN SERIAL CABLE's minimum bending radius of 30mm, molded strain relief, and stranded copper conductors support repeated movement and repositioning without risking signal loss or breakage, ensuring durability during installation and use.

Q: What benefits does the gold plating on contacts provide?

A: Gold-plated contacts enhance conductivity, resist corrosion, and minimize signal degradation over time-which is especially beneficial for applications that demand reliable, long-term connections and consistent data throughput.
