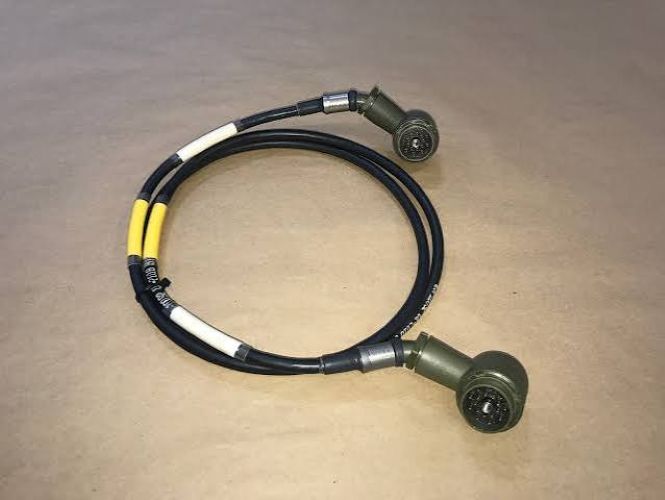

Electronic cables are a broad category of cables and wires used for transmitting electrical signals, data, and power in electronic devices. They vary widely in their construction, materials, and purpose, from tiny internal ribbon cables to shielded data cables and standard computer connectors. Electronic cables are structured assemblies of one or more insulated conductors designed to transmit electrical power, analog signals, or digital data between devices [2.1]. They serve as the physical infrastructure for everything from home entertainment and industrial automation to massive data center network matrices.Core Structural ComponentsRegardless of the application, most high-quality electronic cables share a universal internal layout:

• Conductor: The central core that physically carries the current or signal. Pure Bare Copper (BC) or Oxygen-Free Copper (OFC) are the industry standards for conductivity, while Copper-Clad Aluminum (CCA) serves as a cheaper, less reliable alternative.
• Insulation: Plastic coatings (like PVC, PE, or Teflon) wrapped around individual conductors to isolate current paths and prevent short circuits.
• Shielding: Metallic layers (Aluminum Foil or Tinned Copper Braid) used to envelope the lines. Shielding deflects external Electromagnetic Interference (EMI) in high-noise environments.
• Outer Jacket: The final protective layer. Standard cables use PVC, while building conduits require LSZH (Low Smoke Zero Halogen) for fire safety. Outdoor cables leverage rugged, UV-resistant PE (Polyethylene).Main Categories of Electronic Cables1. Data & Networking CablesEngineered for high-bandwidth digital data transmission across computing networks. [1]
  • Category 6 (Cat6) UTP/SFTP Cables: The baseline standard for local area networks (LANs), supporting 1 Gbps data speeds over distances up to 100 meters at 250 MHz bandwidth.
  • Fiber Optic Patch Cords: Use glass or plastic cores to transmit data via light pulses, offering immune-to-interference transmission at speeds up to 100G across long distances.
  • USB & Thunderbolt Lines: Short-range peripheral connection cables capable of handling high-speed data transfers alongside Power Delivery (PD) to charge devices. [1, 2, 3, 4, 5]
  2. Audio & Video (AV) CablesDesigned to transmit analog signals or high-definition digital media bitstreams cleanly without loss. [1, 2, 3]
  • HDMI Cables (High-Definition Multimedia Interface): The universal standard for uncompressed digital video and audio, with HDMI 2.1 supporting resolutions up to 8K at 60Hz.
  • DisplayPort (DP) Cables: High-bandwidth computer display wires favored for PC gaming systems due to native high refresh rate support.
  • Coaxial & RCA Connectors: 75-Ohm shielded cables utilized for legacy analog video or digital S/PDIF audio components. [1, 2, 3, 4, 5]

Customizable Design & Versatile Connectors

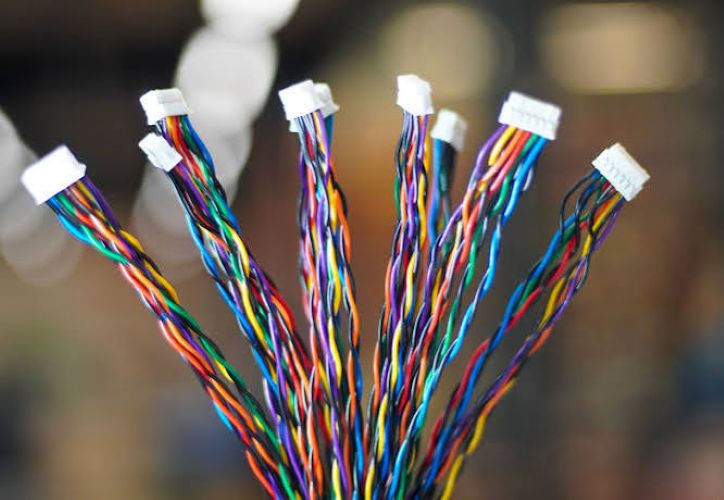

Providing flexibility for diverse applications, these cable assemblies offer customizable lengths, pitch sizes (2.0 mm/2.54 mm/custom), and conductor counts (2-24). Connector options include Molex, JST, or tailored pin headers with tin or gold plating for secure connections. The availability of locking latch/clip mechanisms ensures reliable mating and easy installation.


Performance, Safety, and Compliance

Each assembly adheres to RoHS requirements and IEC60332 safety standards, with optional flame retardance (UL94V-0). Signal cables operate from DC to 300 MHz, maintain >1000 M-km insulation resistance, and handle temperatures from -20C to 80C. With high flexibility, robust tensile strength, and insulation (PVC/Polyethylene), these cables ensure stable, interference-free signal transmission in demanding environments.
