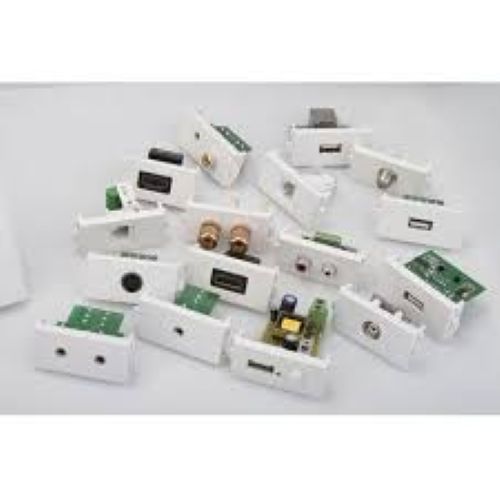

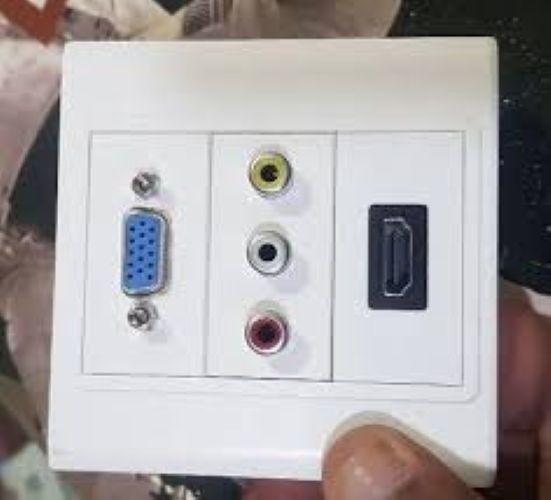

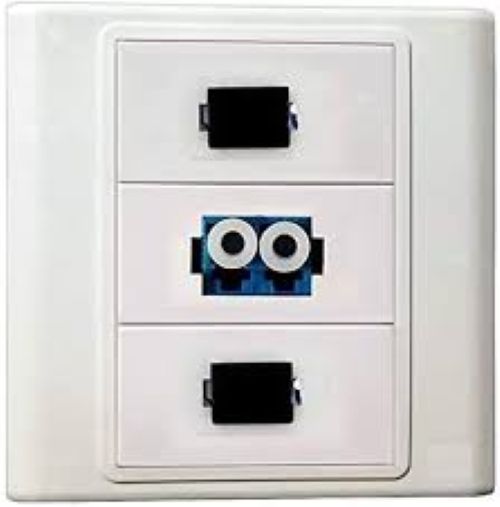

Name: Modular Plate Connectors for Wall Mount
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Modular Plate Connectors for Wall Mount Specification

Efficiency
High, >99%

Insulation Material
Polycarbonate

Surface Finish
Matte

IP Rating
IP20

Overheating Protection
Yes (Material is Designed to Minimize Heat Build-up)

Humidity %
Max 85% RH Non-Condensing

Feature
Flame Retardant, Shock Proof, Easy Installation, Durable

Connector Type
Screw Type Terminal

Shape
Rectangular

Mounting Type
Wall Mount

Operating Temperature
-5C to +50C

Product Type
Modular Plate Connector for Wall Mount

Application
Electrical Wiring & Connection in Modular Switch Plates

Protection Level
Standard Electrical Protection

Frequency (MHz)
50 - 60 Hz

Rated Voltage
240 V AC

Energy Consumption
Negligible

Output Type
Socket / Terminal Output

Color
White

Dimension (L*W*H)
86 mm x 86 mm x 35 mm

Weight
82 g

Size
Standard Modular (For 2-Module Plate)

Input Voltage
110-240 V AC

Phase
Single Phase

Material
Polycarbonate (PC), Flame Retardant

Connection Type
Screw Terminal

No Of Poles
1

Contact Material
Brass with Nickel Plating

Panel Cut-out Size
Standard 2 Module Cut-out

Current Rating
6A

Compatibility
Compatible with all Standard Modular Switches and Plates

Edge Type
Smooth Edges for Safe Handling

Flammability Rating
UL94 V-0

Compliance
ISI Marked, RoHS Compliant

UV Resistance
Yes

Electrical Resistance
< 0.01 Ohm

RoHS Status
Lead-Free

Storage Temperature
-10C to +60C

Modular Plate Connectors for Wall Mount Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Modular Plate Connectors for Wall Mount

Our organization, Cherry Automations is one of the foremost names that are involved in offering of premium quality Modular plate connectors for wall mount. The entire range we offer is developed using optimum quality material and high-tech technology. We offer these products in various specifications in order to meet customers demand. These products are designed in conformation set with industry norms. Features: Optimum strength Corrosion-resistance Sturdy construction

High Safety and Durability

Engineered with flame retardant, shockproof polycarbonate (PC) material and smooth edges, these connectors prioritize user safety. Certified to ISI and RoHS standards and rated UL94 V-0 for flammability, they provide reliable protection against electrical and fire hazards, even during extended operation.

Universal Compatibility and Easy Installation

Designed for effortless installation, these connectors fit all standard modular switches and plates, ensuring flexibility for various electrical setups. The standard 2-module cut-out and screw terminal connections simplify setup, making them ideal for professionals and DIY users alike.

Efficient Performance and Protection

Brass contacts with nickel plating guarantee minimal energy loss and high efficiency (>99%). These connectors operate efficiently across a broad voltage (110-240V AC) and frequency range (50-60Hz), with an IP20 protection rating and built-in features to minimize heat build-up, enhancing both performance and longevity.

FAQ's of Modular Plate Connectors for Wall Mount:

Q: How do I install the modular plate connector into a standard wall switch plate?

A: Simply align the modular plate connector with the standard 2-module cut-out on your switch plate. Use the screw terminal connections to securely fasten electrical wires, ensuring a tight fit. The smooth-edged, flame-retardant design allows for quick, safe installation without specialized tools.

Q: What benefits does the UL94 V-0 flammability rating provide?

A: A UL94 V-0 rating means the connector is highly resistant to flame propagation, providing enhanced fire safety. This ensures that in the event of electrical faults, the product will self-extinguish within 10 seconds, reducing risk of fire spread in residential or commercial installations.

Q: When should I choose this connector for my electrical wiring projects?

A: Opt for this modular plate connector when you require reliable, safe, and durable solutions for electrical wiring in standard modular switch plates, particularly where flame retardancy, shock resistance, and environmental compliance are essential requirements.

Q: Where are these modular plate connectors typically used?

A: These connectors are suitable for a wide range of environments-including homes, offices, and commercial buildings-where modular switch plates are installed. Their universal compatibility makes them ideal for new installations, upgrades, renovations, and replacements.

Q: What process ensures compliance and safety in these connectors?

A: Each connector is manufactured under strict quality control and is ISI marked and RoHS compliant, ensuring materials are lead-free and environmentally friendly. The robust design includes features like overheating protection, UV resistance, and an IP20 rating for reliable safety.

Q: How does the product ensure electrical efficiency and reliability?

A: Equipped with brass contacts with nickel plating, these connectors maintain an electrical resistance below 0.01 Ohm, resulting in negligible energy loss. The design promotes high efficiency (>99%) and consistent performance across varying voltages and operating conditions.

Q: What are the advantages of its shockproof and flame retardant construction?

A: The shockproof, polycarbonate body and flame-retardant construction offer outstanding protection against accidental electric shocks and fire hazards. This enhances user safety during both installation and everyday use, making it a dependable choice for modern electrical systems.
