About RF Cable Assembly

• • Optimal signal integrity: A factory-terminated assembly guarantees precise impedance matching and shielding, minimizing signal attenuation and interference that can occur with self-made cables.

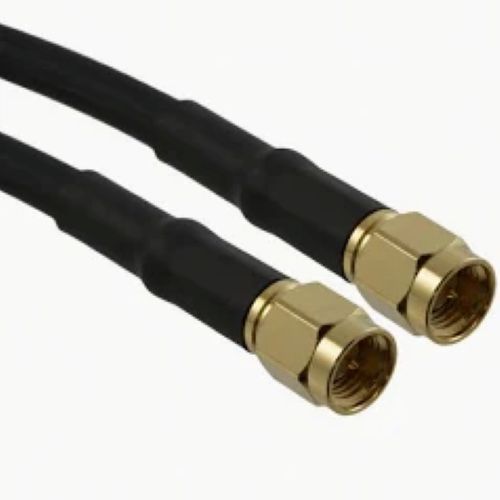

  • Connector variety: Available with a wide range of connector combinations, such as SMA, N-Type, BNC, TNC, and RP-SMA, to ensure compatibility with your specific equipment.
  • Durable construction: Built with robust materials to withstand harsh environmental conditions, with options for flexible or semi-rigid cable types. Many assemblies also feature strain relief to protect connections from stress.
  • Low-loss cable options: Choose from various cable types, including RG, Micro-Coax, or higher-performance LMR/HLF alternatives, to suit your specific frequency and performance needs.
  • Application-specific designs: Different assemblies are engineered for specific markets, including telecommunications, military, aerospace, medical, and test & measurement.

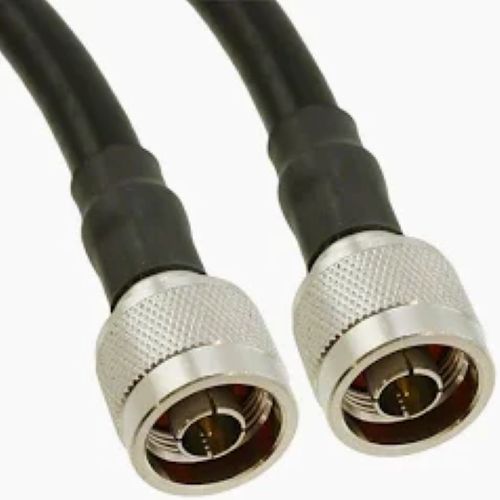

  • Connectors: Identify the connector types on your devices to ensure compatibility. Options like N-type are common for base stations, while SMA is often used for IoT and GPS applications.
  • Impedance: Standard impedance is 50 Ohm for most wireless communications and data transmission, but 75 Ohm is used for video and CATV systems.
  • Frequency range: The maximum frequency the cable can support is critical for high-performance applications like 5G or radar.
An RF (Radio Frequency) cable assembly is a pre-terminated coaxial cable designed for reliable, high-frequency signal transmission. They are used to connect devices like antennas, radios, and test equipment and are factory-built to ensure optimal performance with minimal signal loss and interference. Key features and benefitsHow to choose the right RF cable assemblyWhen selecting an RF cable assembly, you must match its specifications to your application. Here are the key factors to consider:

Superior Signal Integrity and Performance

Designed to uphold exceptional RF transmission quality, this assembly delivers low attenuation, a strong return loss of >20 dB, and outstanding shielding through its tinned copper braid. The result is reduced signal loss and superior noise immunity, making it reliable for high-frequency applications.


Durable Construction for Tough Environments

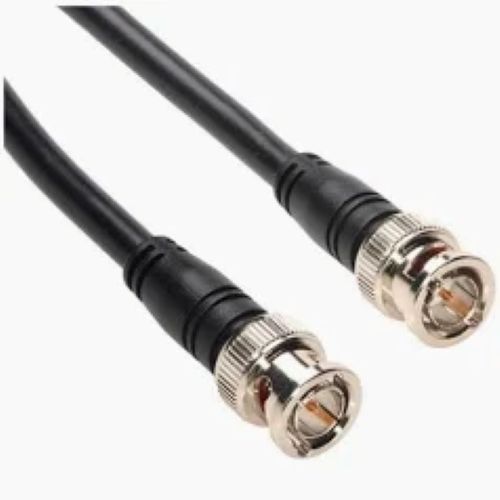

With a robust 5mm diameter coaxial structure, nickel-plated BNC connectors, and UV- and flame-retardant PVC jacket, this cable withstands harsh conditions. It's rated for operating temperatures from -40C to +85C, resides well in both indoor and outdoor setups, and endures over 500 mating cycles.


Easy Installation and Versatility

The plug-and-play design and screw-lock mechanism ensure secure, hassle-free integration into RF equipment, test instruments, and wireless systems. Its compact 1m length is optimal for laboratory and field deployments, and halogen-free, RoHS-compliant materials meet today's safety and environmental requirements.
