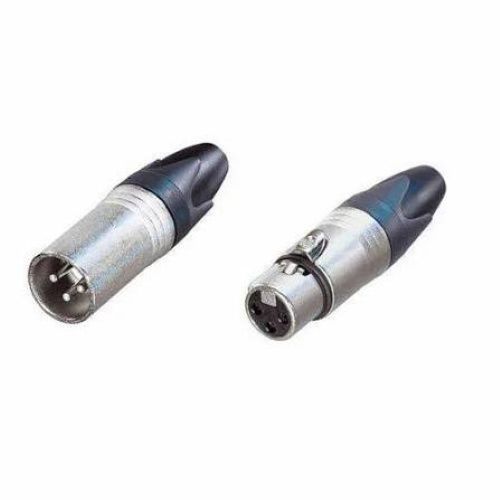

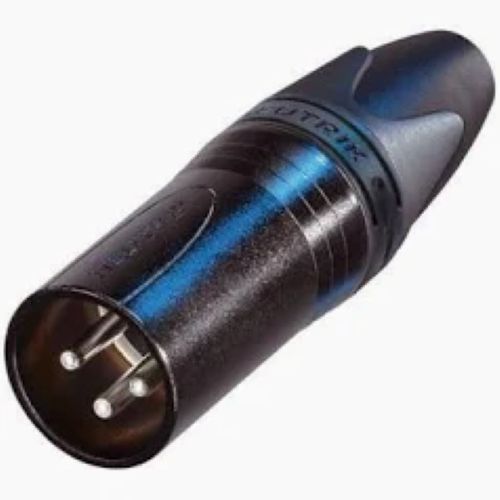

Name: Pro Audio Connector
Brand: CHERRY CONNECTRONICS
Price: 120.0 INR
Availability: InStock

Price 120.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pro Audio Connector Specification

Diameter
Approx. 21-22mm

Number of Conductor
3 (standard XLR configuration)

Conductor Shape
Round Pin

Dielectiric Strength
2000V AC/minute

Armored Material
Not armored

Usage & Applications
Stage, studio, PA systems, broadcast

Insulation
PVC or thermoplastic

Rated Temperature
-20C to +70C

Weight
20-30g each

Core Number
Three

Conductor Type
Solid or Stranded

Core Material
Copper

Impedance
110 ohms (typical for audio)

Install Type
Panel mount or cable mount

Operating Temperature
-20C to +70C

Tensile Strength
High mechanical strength (values depend on manufacturer)

Cable Type
Balanced audio cable (when used with cable)

Locking Type
Latch lock

Features
High conductivity, Secure locking mechanism, Noise reduction, Durable housing

Product Type
XLR Pro Audio Connector

Length
Standard sizes (varies as per cable attached)

Voltage
Up to 250V AC

Insulation Material
PVC or Thermoplastic

Application
Professional audio equipment, microphones, mixing consoles

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-40C to +85C

Connector Color
Silver/Black

Shield Material
Metal (typically nickel or zinc alloy)

Jacket Color
Black or silver depending on model

Dimension (L*W*H)
Approximately 80mm x 22mm x 22mm

Color
Silver/Black

Material
Metal shell, plastic tail sleeve

Size
Standard XLR size

Resistance
Contact resistance 3 m

Frequency Range
DC to 60 kHz

Pin Configuration
3-pin (male and female available)

Mounting Type
Cable mount

Current Rating
Up to 16A

Contact Plating
Nickel or gold plated options (for better conductivity)

Mating Cycles
Over 5000 cycles

Compatible Cable OD
5mm to 8mm

Ingress Protection
IP20

RoHS Compliance
Yes

About Pro Audio Connector

Pro audio connectors are heavy-duty, highly reliable interfaces designed for live sound reinforcement, recording studios, broadcasting, and commercial PA systems. Unlike consumer audio jacks, professional connectors prioritize balanced signal routing (to cancel out long-distance hum and noise), rugged mechanical lockings to prevent accidental disconnects, and heavy shielding.

Reliable Performance in Every Connection

Designed for professionals, this connector provides a solid, noise-resistant link, essential for audio clarity in demanding environments. Its precise locking mechanism ensures a secure fit, while contact plating (nickel or gold) offers excellent conductivity and long life. Suitable for a wide range of installations, including cable and panel mount options, these connectors adapt seamlessly to various system requirements.

Built to Last for Intensive Use

With metal shell construction, PVC or thermoplastic insulation, and high mechanical strength, the Pro Audio Connector withstands frequent use, vibration, and varying temperatures. It achieves over 5000 mating cycles and functions reliably from -20C to +70C, making it ideal for studio, stage, and touring applications.

FAQ's of Pro Audio Connector:

Q: How do I select between nickel and gold plated contacts for this connector?

A: Choose gold plated contacts for maximum conductivity and resistance to corrosion, especially in high-humidity or critical performance environments. Nickel plating offers robust durability and is ideal for most standard professional audio uses.

Q: What cable types and sizes are compatible with the Pro Audio Connector?

A: The connector is designed for balanced audio cables with an outer diameter between 5mm and 8mm, making it suitable for most professional microphone and line-level cables used in studio and live setups.

Q: When should I use a cable mount versus a panel mount version?

A: Cable mount connectors are used for attaching to the ends of audio cables, while panel mount versions are for installation on equipment chassis, patch panels, or wall plates. Select based on your project's installation and interface needs.

Q: Where is this connector best utilized within an audio setup?

A: This connector is ideal for use in microphones, mixing consoles, stage boxes, PA systems, and broadcast equipment, providing reliable signal transfer and secure locking for both permanent installations and portable setups.

Q: What benefits does the secure locking mechanism provide?

A: The latch lock mechanism ensures a tight, vibration-resistant connection, preventing accidental unplugging or signal loss, which is particularly valuable during live performances and critical recording sessions.

Q: How durable is the Pro Audio Connector under frequent use?

A: Engineered for endurance, it supports over 5000 mating cycles with a sturdy metal shell and robust insulation, delivering high performance even under continuous use in professional environments.

Q: What process should I follow to install the connector on a cable?

A: Trim your balanced audio cable to size, strip the outer insulation and each conductor, then solder or secure the three conductors (per XLR pin layout) to the connector. After assembly, tighten the built-in strain relief and test for secure connection and signal integrity.
