Amp Tyco Patch Cord Cat 6

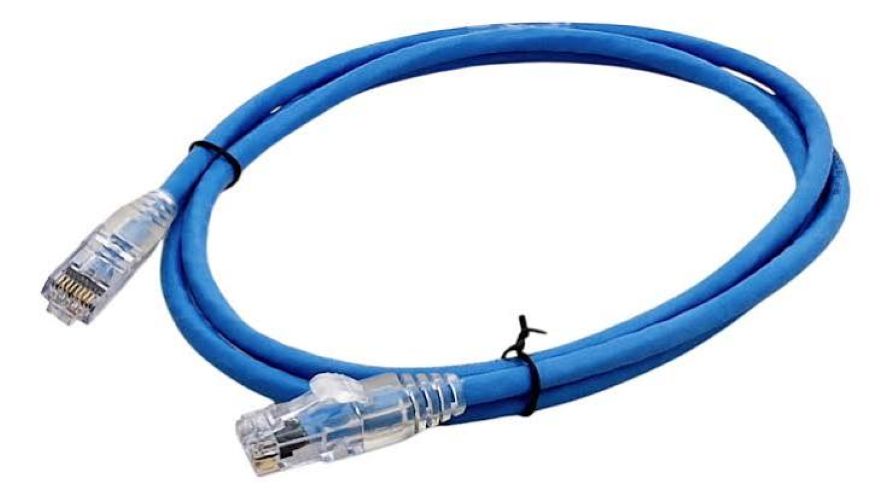

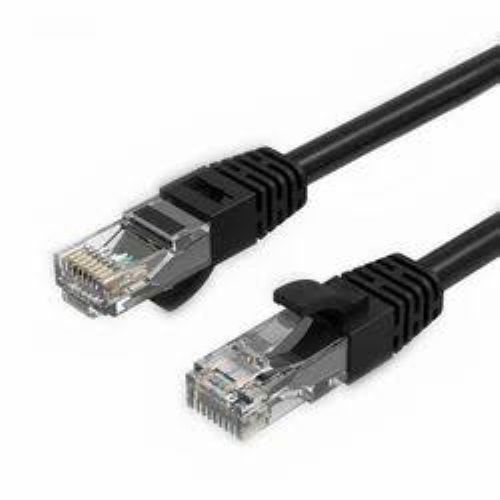

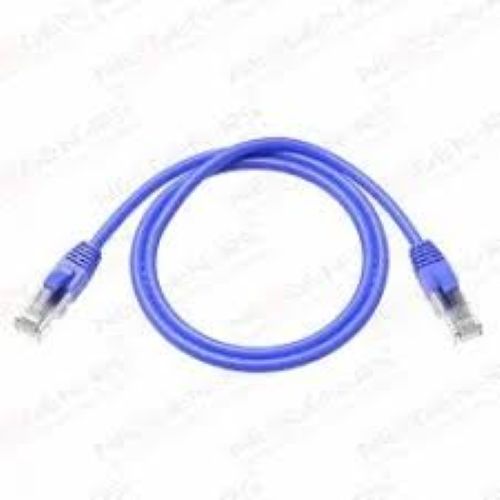

Name: Amp Tyco Patch Cord Cat 6
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Amp Tyco Patch Cord Cat 6 Specification

Dielectiric Strength
500VAC/2min

Core Material
Copper

Rated Temperature
Up to 60C (operating)

Conductor Shape
Solid

Conductor Type
Twisted Pairs

Weight
Approx. 50g/meter

Cable Type
Category 6 (Cat 6) UTP

Features
High performance, snagless design, reduces crosstalk, 23 AWG solid copper, molded boots

Install Type
Plug-and-play

Diameter
Approx. 6mm

Number of Conductor
8 (4 pairs)

Tensile Strength
11.5MPa

Impedance
100 Ohms 15 Ohms

Core Number
4 pairs

Locking Type
Clip-type RJ45 connector

Operating Temperature
0C to 60C

Insulation
High-density polyethylene (HDPE)

Usage & Applications
Ethernet, network patching, voice and data transfer

Product Type
Cat 6 Patch Cord

Length
1 meter, 2 meter, 5 meter, 10 meter (custom lengths available)

Voltage
Up to 300V

Insulation Material
Polyethylene (PE)

Application
LAN networking, telecommunications, data centers, structured cabling systems

Conductor Material
Annealed Bare Copper

Jacket Material
PVC

Storage Temperature
-20 to 70C

Connector Color
Transparent/clear

Shield Material
Unshielded (UTP)

Jacket Color

Dimension (L*W*H)
Standard as per selected length; diameter approx. 6mm

Color
Blue

Material
PVC/Copper

Size
1m, 2m, 3m, 5m, 10m

Bandwidth
Up to 250 MHz

cUL Listed
Yes

Packaging
Individual polybag

Connector Type
RJ45, 8P8C modular plug

Transmission Speed
Up to 1 Gbps (Gigabit Ethernet)

Contact Plating
50 gold plating over nickel

Return Loss
>20 dB at 100 MHz

Attenuation
20.9 dB/100m at 100 MHz

Flame Retardant
Yes

About Amp Tyco Patch Cord Cat 6

LOOPING CABLE SMALL CAT 5,CAT 6,CAT 7 AVAILABLE IN ALL LENGTH AS PER REQUIREMENT ,WE CUSTOMISE AS YOUR REQUIREMENT OF LENGTH AND COLOUR. IT IS SUITABLE FOR HIGH Suitable for high performance Ethernet/POE application.

Optimized for High-Speed Data Transmission

Amp Tyco Patch Cord Cat 6 supports up to 1 Gbps speeds and 250 MHz bandwidth, making it reliable for demanding data runoff in corporate networks, data centers, and telecommunication environments. With superior attenuation and return loss ratings, it ensures strong and clear signals even over longer distances.

Engineered for Durability and Safety

Each patch cord is manufactured with flame-retardant PVC jackets and high-density polyethylene insulation, lending resilience against heat and harsh conditions. It withstands operating temperatures from 0C to 60C and a storage range of -20C to 70C, making it reliable for varied installation environments.

Designed for Seamless Installation and Connectivity

The cable features a standard transparent RJ45 connector with a clip-type locking mechanism for secure, plug-and-play connectivity. Molded boots, snagless design, and 8P8C modular plugs ensure quick setup and long-term performance, reducing risk of damage during installation and maintenance.

FAQ's of Amp Tyco Patch Cord Cat 6:

Q: How do I install the Amp Tyco Patch Cord Cat 6?

A: Installation is straightforward-simply plug the RJ45 connector into the appropriate network device port. Thanks to its clip-type locking design, it provides secure, reliable connections suitable for plug-and-play applications.

Q: What are the benefits of the snagless design of this patch cord?

A: The snagless design prevents the locking clip from catching or breaking during installation or removal, assuring long-term durability and easy management, especially in high-density cabling environments.

Q: Where can the Amp Tyco Patch Cord Cat 6 be used?

A: This patch cord is ideal for LAN networking, telecommunications, data centers, structured cabling systems, and voice/data transfer setups. It suits commercial offices, server rooms, educational facilities, and home networks alike.

Q: When should I choose a Cat 6 UTP patch cord over other categories?

A: Select Cat 6 UTP when you need high-speed transmission up to 1 Gbps and robust performance for bandwidth-intensive tasks like video streaming or large data transfers, and when minimal crosstalk or interference is crucial.

Q: What is the typical process for selecting the right cable length?

A: Determine the distance between connected devices and select the next closest standard length (1m, 2m, 5m, 10m) for a tidy setup. Custom lengths are also available if a precise fit is required for your installation.

Q: How does the gold plating on the contacts improve connectivity?

A: The 50 gold plating over nickel on the RJ45 contacts ensures superior conductivity, reduces resistance, and minimizes signal loss or corrosion, helping maintain optimal network performance over time.
