Send Inquiry8 Core Coil Cord
Price 250.0 INR/ Piece
MOQ : 100 Pieces
8 Core Coil Cord Specification
- Conductor Shape
- Round
- Core Material
- Copper
- Weight
- ~180g per meter
- Conductor Type
- Stranded
- Dielectiric Strength
- 2 kV/min
- Usage & Applications
- Telephone handsets, Medical imaging, Industrial sensors, Audio equipment
- Operating Temperature
- -20C to +80C
- Core Number
- 8
- Insulation
- PVC
- Rated Temperature
- -20C to +80C
- Install Type
- External/Portable
- Number of Conductor
- 8
- Features
- Flexible, Retractable, High Durability, Tangle-Free
- Diameter
- 6mm (approx.)
- Tensile Strength
- 50N/mm2 (approx.)
- Cable Type
- Coiled Multi-core Cable
- Product Type
- Coil Cord / Spiral Cable
- Length
- Up to 3 meters (extended)
- Voltage
- 300V
- Insulation Material
- PVC Insulation
- Application
- Telecommunication, Medical Equipment, Data Transfer, Industrial Automation
- Conductor Material
- Copper
- Jacket Material
- PVC
- Storage Temperature
- -25C to +70C
- Connector Color
- Not applicable (cut wire ends)
- Shield Material
- Unshielded
- Jacket Color
- Black
- Dimension (L*W*H)
- Customizable Length x 6mm Diameter (approx.)
- Color
- Black
- Material
- Copper, PVC
- Size
- 6mm Diameter (approx.)
- Resistance per km
- Max 80 /km
- Flex Cycles (flex life)
- >20,000 cycles
- Flame Retardant
- Yes
- Minimum Coil Diameter
- 35mm
- Outer Jacket Hardness
- 70 Shore A
- Conductor Gauge
- 24 AWG (typical)
- Oil Resistant
- Yes
- Maximum Extension Ratio
- Up to 5 times relaxed length
- Packaging Type
- Roll/Coil
- Environmental Compliance
- Lead Free
- UV Resistance
- Moderate

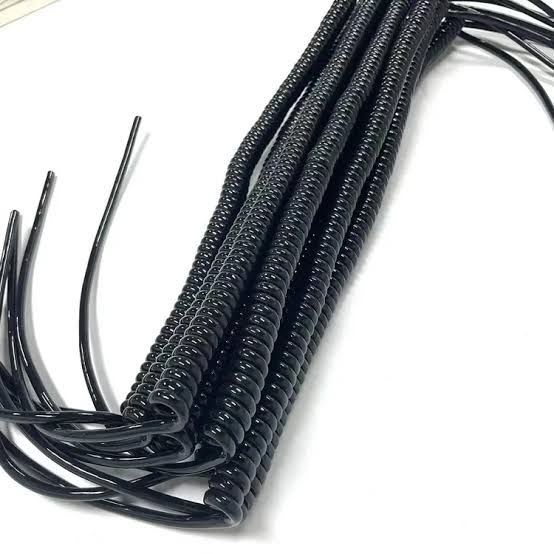

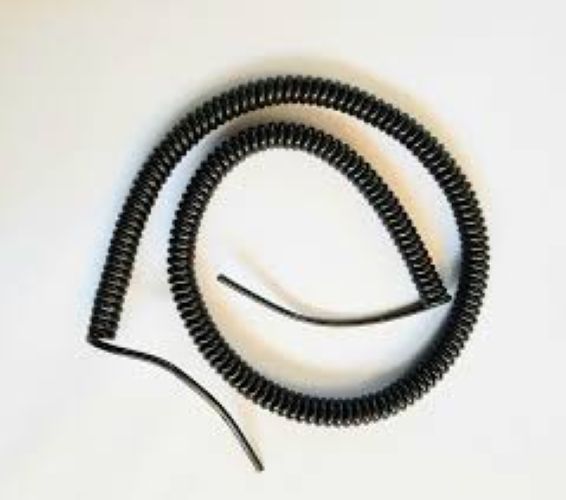

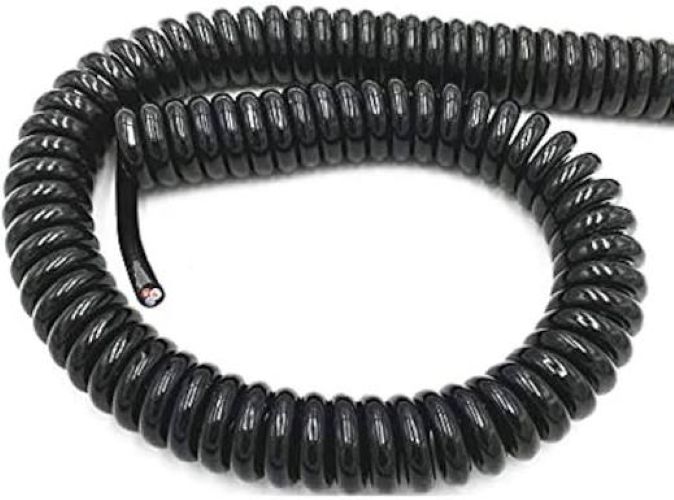

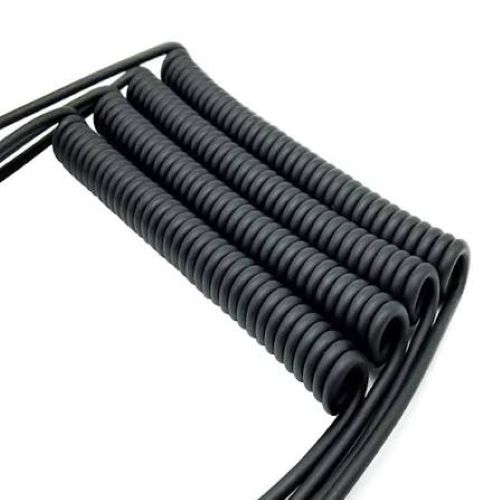

About 8 Core Coil Cord
WE ARE THE LEADING SUPPLIER OF 8 CORE COIL CORD ACROSS THE GLOBE. An 8 core coil cord (also known as a curly, spiral, or retractile cable) contains eight individual insulated conductor wires wrapped in a spring-like outer jacket.Superior Flexibility and Reliability
Engineered to offer exceptional flexibility and durability, the 8 Core Coil Cord withstands more than 20,000 flex cycles without compromise. Its stranded copper conductors and robust PVC jacket help maintain long-term performance, even in demanding industrial, medical, or telecommunication environments.
Safe, Oil-Resistant, and Flame Retardant Design
Featuring both oil-resistant and flame-retardant properties, this coiled cable performs reliably in critical applications. Its 70 Shore A hardness PVC jacket guards against mechanical and chemical stresses, enhancing safety across a variety of workspaces.
Built for Versatile Applications
With moderate UV resistance, tangle-free operation, and a customizable coil length, this cable is versatile enough for use in telephone handsets, industrial automation, medical imaging equipment, and professional audio environments. Easy to install and use, it's a preferred solution for engineers and technicians alike.
FAQ's of 8 Core Coil Cord:
Q: How do I install the 8 Core Coil Cord for my device?
A: Installation is straightforward-simply connect the cut wire ends to the terminals of your device, making sure to match the required configuration. The coil cord's flexible design and stranded copper cores ease routing in both portable and fixed applications.Q: What environments are suitable for using this coiled multi-core cable?
A: This cord is ideal for indoor and semi-protected outdoor environments, especially where flexibility, oil resistance, and flame retardance are essential, such as in medical, telecommunication, industrial automation, and sensor setups.Q: When should I consider using a coil cord with a 5x extension ratio?
A: Opt for this cable when your application requires the cord to stretch significantly-up to five times its relaxed length-while still maintaining excellent recoil and avoiding tangling, such as with handset or retractable sensors.Q: What is the typical process for maintaining or cleaning this cord?
A: Wipe the PVC jacket with a soft, damp cloth to remove dirt and oils. Avoid using abrasive chemicals. Regular visual inspection ensures ongoing safety and integrity, especially in environments with high mechanical stresses.Q: Where can this 8 Core Coil Cord be used for optimal benefits?
A: It's most beneficial in dynamic setups where constant movement or adjustment is necessary-such as telephone handsets, medical imaging units, and industrial sensors-due to its flexibility, longevity, and tangle-free operation.Q: What are the key benefits of choosing this cable for my application?
A: Choosing this cable provides you with high durability, excellent flexibility, reliable electrical integrity, easy handling, flame and oil resistance, and environmental compliance (lead-free), making it both safe and adaptable for mission-critical applications.
