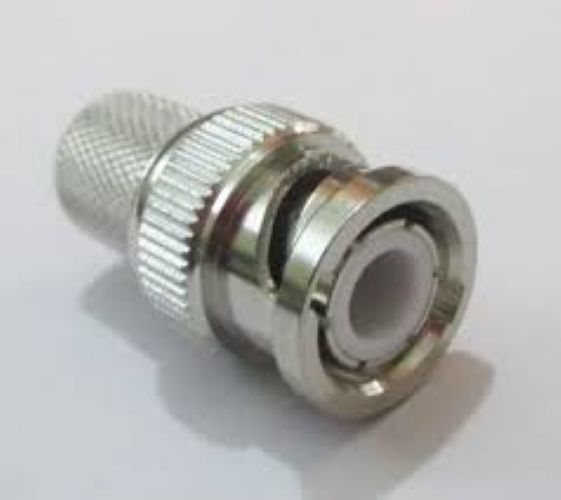

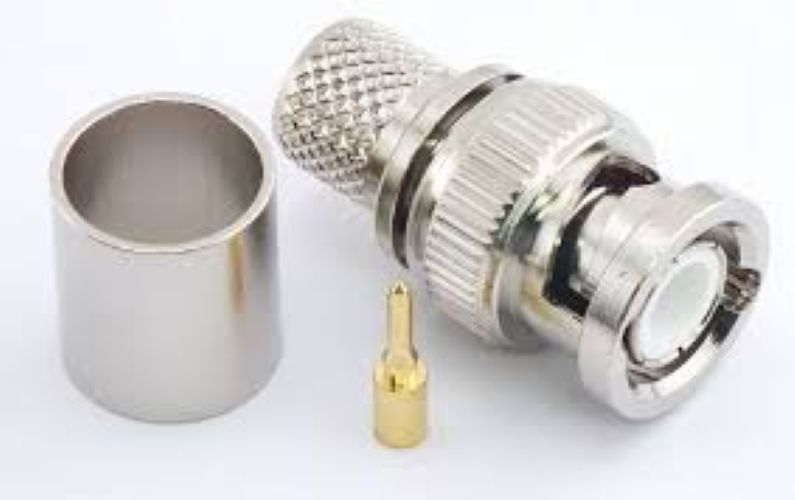

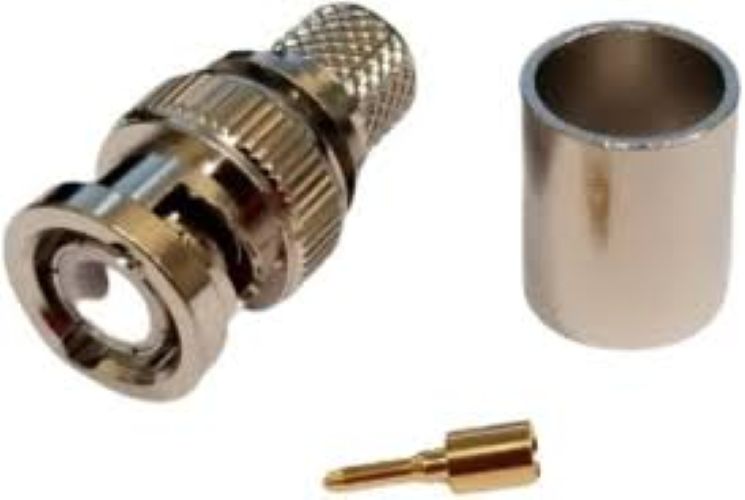

BNC CONNECTOR 213

Name: BNC CONNECTOR 213
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BNC CONNECTOR 213 Specification

Rated Temperature
-20C to +70C

Conductor Shape
Round

Usage & Applications
Test instruments, Communication equipment, CCTV, Radio frequency transmission

Features
High conductivity, Secure connection, Durable construction, Easy to install, Corrosion resistant

Dielectiric Strength
1000V AC/min

Diameter
Approx. 15 mm

Weight
Approx. 12g

Number of Conductor
1

Operating Temperature
-20C to +70C

Locking Type
Bayonet (BNC bayonet coupling)

Core Number
Single core

Insulation
PTFE

Conductor Type
Solid

Install Type
Panel mount / Cable mount

Core Material
Brass

Impedance
50 ohm and 75 ohm (available as per model)

Tensile Strength
High

Cable Type
Coaxial cable

Product Type
BNC Connector 213

Length
Standard

Voltage
Up to 500V

Insulation Material
PTFE (Polytetrafluoroethylene)

Application
Coaxial cable termination, CCTV, Audio/Video, Radio frequency, Test equipment

Conductor Material
Brass

Jacket Material
PVC

Storage Temperature
-20C to +80C

Connector Color
Silver

Shield Material
Nickel-plated brass

Jacket Color
Black

Dimension (L*W*H)
Approx. 38 mm x 15 mm x 15 mm

Color
Silver

Material
Brass with nickel plating

Size
Standard

Gender
Male

VSWR
1.3 max

Termination Style
Crimp/Solder type

Contact Resistance
<3 m (center), <2 m (outer)

Frequency Range
DC to 4 GHz

Mounting Type
Cable mount / Free hanging

Contact Plating
Gold plated center pin

Mating Cycles
>500 cycles

Resistant To
Shock, vibration, corrosion

Insulator Color
White

BNC CONNECTOR 213 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Hours

About BNC CONNECTOR 213

Brass electrical connectors are heavy-duty, highly conductive components used to establish secure, low-resistance electrical connections across domestic appliances, automotive systems, and industrial power distribution networks. Brassan alloy of copper and zincis favored in electrical engineering because it strikes an ideal balance between excellent electrical conductivity, high mechanical strength, and superior resistance to oxidation and atmospheric corrosion.

Robust Construction for Demanding Environments

Engineered to resist shock, vibration, and corrosion, the BNC Connector 213 is built for reliability even in harsh conditions. Its rugged design ensures consistent electrical performance, making it a dependable choice for professional audio, video, and instrumentation projects.

Superior Connectivity and Signal Integrity

With a gold-plated center pin and precise contact resistance (<3 m center, <2 m outer), this BNC connector guarantees optimal signal transmission. The maximum VSWR of 1.3 ensures minimal signal loss, essential for applications requiring high-frequency performance up to 4 GHz.

FAQ's of BNC CONNECTOR 213:

Q: How is the BNC Connector 213 terminated onto the cable?

A: The BNC Connector 213 is designed for a combination of crimp and solder termination methods, allowing secure mechanical and electrical connections to a variety of coaxial cables.

Q: What type of environments is this connector suitable for?

A: Thanks to its resistance to shock, vibration, and corrosion, this connector performs well in challenging settings, including industrial, laboratory, and field environments.

Q: When should I use the BNC Connector 213 in my application?

A: You should use the BNC Connector 213 when you require reliable RF connections up to 4 GHz, especially where frequent mating cycles and resistance to environmental factors are important.

Q: Where can the BNC Connector 213 be mounted?

A: This connector is intended for cable mount or free-hanging installations, providing flexibility in mounting configurations for various setups.

Q: What is the process for installing the BNC Connector 213?

A: Installation involves preparing the cable, soldering the center pin for solid signal contact, and crimping the outer sleeve for mechanical stability. Detailed instructions should be followed for optimal results.

Q: What are the benefits of the gold-plated center pin?

A: The gold-plated center pin offers improved conductivity, corrosion resistance, and long-term reliability, maintaining low contact resistance for superior signal quality.
