Rg59 SDI Video Cable

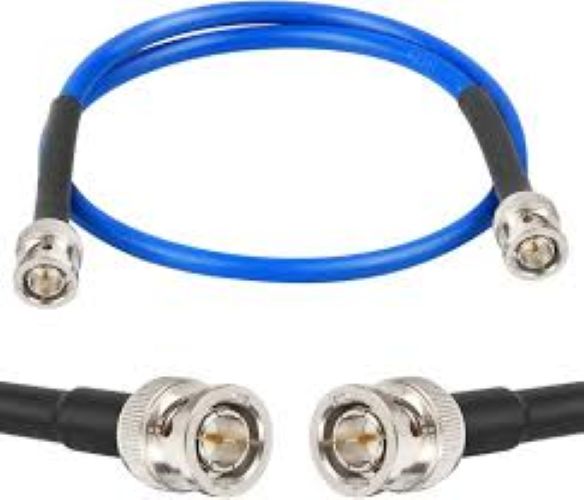

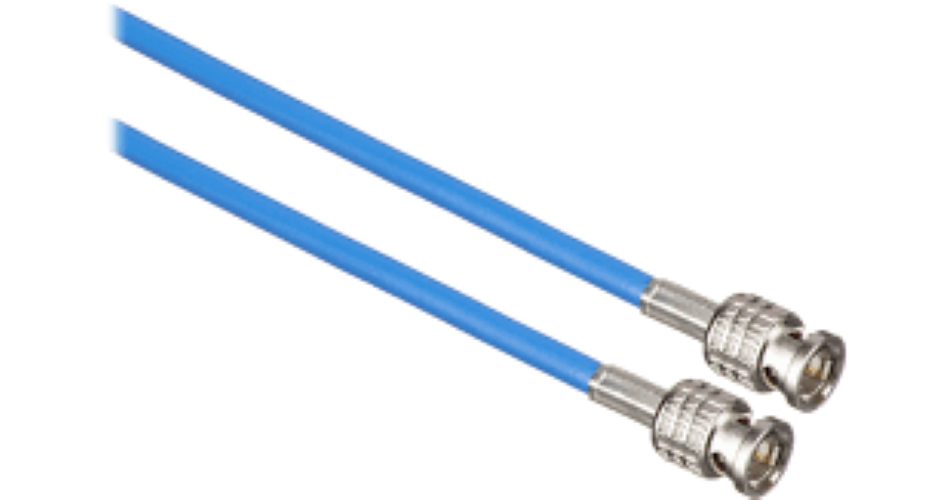

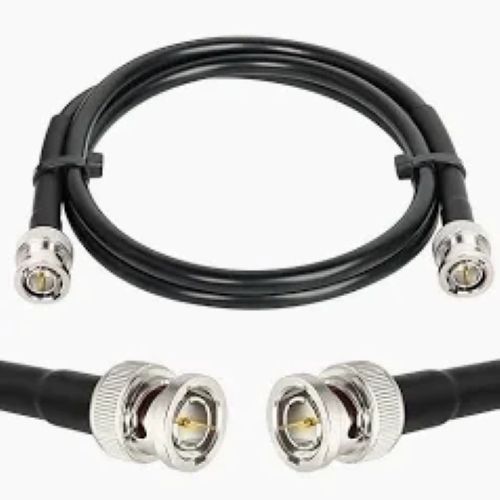

Name: Rg59 SDI Video Cable
Brand: CHERRY CONNECTRONICS
Price: 45.0 INR
Availability: InStock

Price 45.0 INR/ Meter

Get a Price/Quote

MOQ : 1 Meter

Rg59 SDI Video Cable Specification

Usage & Applications
CCTV, video surveillance, broadcast, SDI/HD-SDI camera installations

Install Type
Indoor/Outdoor (dependent on jacket type)

Impedance
75 Ohms

Insulation
Foamed PE

Conductor Type
Solid

Diameter
6.1 mm

Operating Temperature
-20C to 60C

Dielectiric Strength
3 KV

Armored Material
Not armored (standard RG59 is unarmored)

Features
High-definition video transmission, Low signal loss, Flexible and durable design, EMI/RFI shielding, Pre-terminated BNC connectors

Core Material
Copper

Number of Conductor
1 Coaxial Core

Rated Temperature
-20C to 60C

Conductor Shape
Round

Tensile Strength
Approx. 100 N

Cable Type
Coaxial

Weight
Approx. 0.045 kg/m

Locking Type
BNC Bayonet Lock

Core Number
Single Core

Product Type
RG59 SDI Video Cable

Length
Available in various lengths (commonly 1m, 2m, 5m, 10m, 20m, 30m, and custom lengths)

Voltage
Up to 300V

Insulation Material
Foamed Polyethylene (PE)

Application
CCTV Surveillance, HD-SDI/SDI Video Transmission, professional video equipment, television broadcasting

Conductor Material
Copper

Jacket Material
PVC (Polyvinyl Chloride)

Storage Temperature
-20C to 60C

Connector Color
Silver (metal BNC connectors)

Shield Material
Braided Copper + Aluminum Foil

Jacket Color
Black

Dimension (L*W*H)
Varies; cable diameter approx. 6.1 mm

Material
Copper Core, PE Insulation, PVC Jacket, BNC Connectors

Color
Black

Size
Diameter 6.1 mm

Return Loss
> 20 dB @ 1 GHz

Frequency Range
Up to 3 GHz (suitable for HD-SDI signals)

Flame Retardant
Yes, compliant with standard PVC jacket requirements

Compliance
RoHS Compliant

Attenuation
~7 dB/100 m at 100 MHz

Connector Type
BNC Male to BNC Male

Maximum Current
2.5 A (applies to signal transmission only)

Compatible Devices
CCTV Cameras, DVRs, Video Switchers, SDI Video Equipment

Waterproof
Optional with outdoor-rated PVC jacket

Outer Diameter
6.1 mm

Minimum Bending Radius
61 mm

About Rg59 SDI Video Cable

Tinned copper braid and aluminum foil protect your signal from interference.

Plug & play with cameras, monitors, recorders, and broadcast gear.

Engineered for minimal signal loss and maximum fidelity.

Experience ultra-high-definition clarity without compromise.

Superior Signal Quality for Professional Applications

Engineered to deliver exceptional video clarity, the RG59 SDI Video Cable ensures minimal signal degradation over long distances. Its 75-ohm impedance and effective EMI/RFI shielding make it compatible with high-definition CCTV cameras, DVRs, video switchers, and broadcast equipment. The solid copper conductor and foamed polyethylene insulation guarantee consistent performance for both indoor and outdoor installations.

Flexible Design with Optimum Safety

With a minimum bending radius of 61 mm and a tough, flame-retardant PVC outer jacket, this cable offers flexibility and safety in diverse environments. It is RoHS compliant for safe, eco-friendly use, and available with waterproofing options for outdoor applications. Its robust design ensures reliability even under varying temperature conditions, ranging from -20C to 60C.

FAQ's of Rg59 SDI Video Cable:

Q: How do I use the RG59 SDI Video Cable in CCTV and broadcast applications?

A: Connect the pre-terminated BNC male connectors directly to your CCTV cameras, DVRs, video switchers, or other SDI video devices. The cable supports HD-SDI signals, ensuring crisp video transmission for security and broadcast installations.

Q: What are the benefits of a low-attenuation, high-frequency RG59 SDI cable?

A: The cable's low attenuation (~7 dB/100 m at 100 MHz) and support for frequencies up to 3 GHz minimize signal loss, ensuring reliable and sharp high-definition video transmission, even over longer distances.

Q: When should I choose the waterproof version of this cable?

A: Opt for the waterproof outdoor-rated PVC jacket if your installation is exposed to weather or moisture, such as in outdoor CCTV setups or external broadcast links, to enhance durability and protection against environmental elements.

Q: Where can the RG59 SDI Video Cable be installed?

A: This cable is suitable for both indoor and outdoor installations (when using the waterproof version), and is commonly used in locations requiring professional video transmission, like CCTV surveillance zones, television studios, and event venues.

Q: What makes this cable compliant with industry standards and safe to use?

A: It is RoHS compliant, features a flame-retardant PVC jacket, and meets standard safety requirements, ensuring that it is environmentally friendly and suitable for secure installations in commercial and industrial settings.

Q: Can the RG59 SDI Video Cable handle flexible routing during setup?

A: Yes, its flexible design, with a minimum bending radius of 61 mm and durable materials, allows it to be routed efficiently around tight corners and through confined spaces without compromising signal quality.
