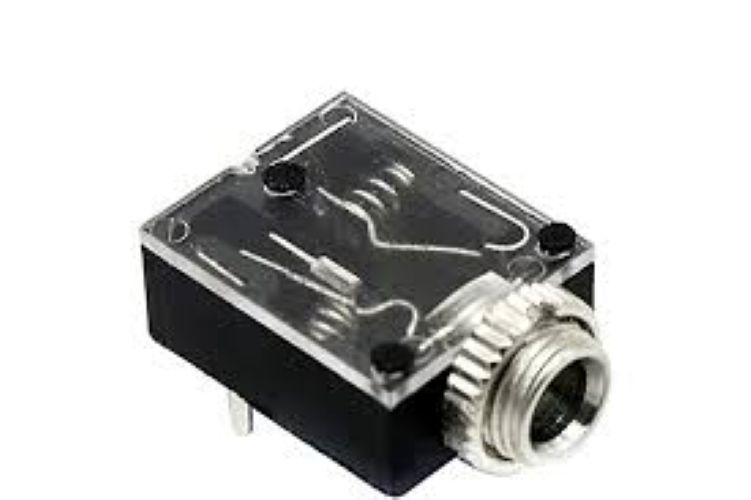

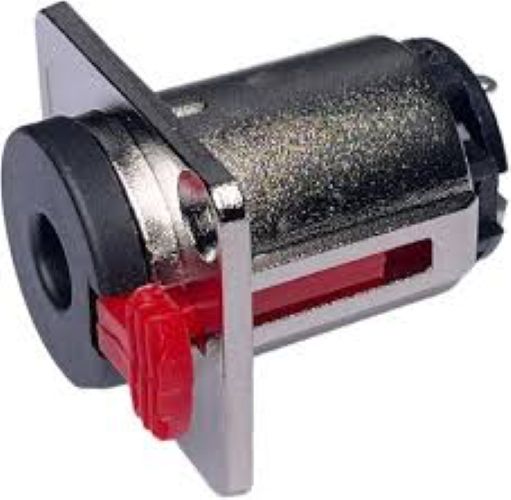

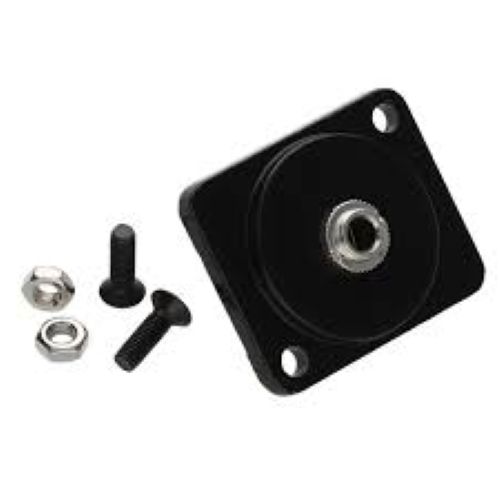

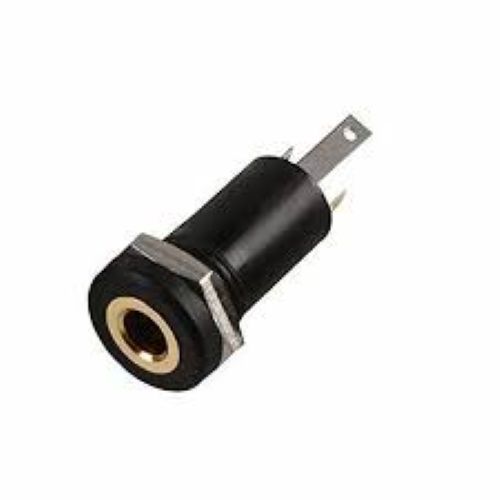

Name: Audio Socket Panel Mount
Brand: CHERRY CONNECTRONICS
Price: 30.0 INR
Availability: InStock

Price 30.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Audio Socket Panel Mount Specification

Operating Temperature
-20C to +65C

Impedance
Standard audio (nominal, not specified)

Features
Durable, high contact reliability, easy panel mount design, secure fit, corrosion resistant contacts

Insulation
High grade, phenolic/ABS plastic

Dielectiric Strength
>1000V AC/min

Diameter
6.35mm (1/4 inch) or 3.5mm (1/8 inch) depending on version

Rated Temperature
-20C to +65C

Locking Type
Non-locking, friction fit

Conductor Type
Solid

Install Type
Panel mount (chassis mount)

Core Number
2 to 3

Usage & Applications
Used in audio panel, amplifier, mixer, microphone, instrument connections

Conductor Shape
Round

Weight
Approx. 5g each

Core Material
Copper Alloy

Number of Conductor
2 to 3 (depending on model/contacts)

Product Type
Audio Socket Panel Mount

Length
Standard panel mount type, length as per design

Voltage
Maximum rating: 125V AC/DC

Insulation Material
Phenolic/Plastic

Application
Audio equipment, sound systems, amplifiers, panel installations

Conductor Material
Phosphor Bronze/Copper alloy contacts with nickel plating

Storage Temperature
-25C to +85C

Connector Color
Black

Dimension (L*W*H)
Approx. 23mm x 13mm x 11mm (varies by mounting)

Material
ABS plastic body with metal contacts

Color
Black

Size
Standard 6.5mm or 3.5mm socket

Contact Resistance
30m

Mating Cycles
5000 insertions

Insertion Force
3~20N

Withdrawal Force
3~20N

Contact Plating
Nickel

Gender
Female

Mounting Hole Size
Approximately 8mm

Current Rating
1A max

Insulation Resistance
>100M at 500V DC

Flame Retardant Standard
UL94V-0

RoHS Compliant
Yes

Panel Thickness Supported
1~3mm

About Audio Socket Panel Mount

We are involved in offering an extensive array of 3.5 Stereo Socket Panel Mount. These products are developed by skilled professionals using advanced machinery and tools in adherence set with industry norms. Offered products are used for audio video purposes at homes, schools and several other places. In addition to this, we also offer customization facility of these products to our customers. Features:Compact design Sturdiness Anti-corrosive

Durable and Reliable Construction

Engineered with a robust ABS plastic body and solid nickel-plated copper alloy contacts, this panel mount socket resists wear and oxidation in demanding environments. Certified flame-retardant to UL94V-0 standards, it maintains safety and performance even under variable operating conditions. The high-grade insulation ensures reliable transmission and longevity across thousands of connection cycles.

Versatile Audio Application

This socket is built to integrate seamlessly into audio panels, amplifiers, mixers, microphones, and musical instruments. Its easy-install design supports panel thickness from 1 to 3mm, and compatibility with both 6.35mm and 3.5mm audio plugs, making it suitable for a wide range of professional and commercial audio set-ups.

FAQ's of Audio Socket Panel Mount:

Q: How do I install the audio socket panel mount into my equipment?

A: To install the audio socket, ensure your panel has an 8mm mounting hole. Insert the socket from the front of the panel, align it properly, and secure it with the appropriate fixing hardware. The socket supports panel thicknesses of 1 to 3mm, making installation straightforward for most common audio equipment panels.

Q: What type of audio connections is this socket suitable for?

A: This panel mount socket is compatible with standard 6.35mm (1/4 inch) or 3.5mm (1/8 inch) audio plugs, depending on the selected model. It is ideal for use in amplifiers, mixers, microphones, musical instruments, and other audio panel applications requiring durable and reliable female connections.

Q: When should I consider replacing this socket in my setup?

A: The socket is rated for up to 5000 insertion and withdrawal cycles. If you experience intermittent audio connections, increased resistance, or physical wear after extensive use, it may be time to replace the socket to maintain optimal signal quality.

Q: Where is this socket typically used?

A: This audio socket is commonly used in professional audio equipment such as amplifiers, sound mixers, broadcast panels, panel installations, microphones, and instrument setups. It is designed for secure, robust mounting in control panels and chassis enclosures.

Q: What are the benefits of using a nickel-plated contact socket?

A: Nickel plating on the contacts provides excellent corrosion resistance, ensuring long-term signal integrity and reliable performance even in humid or high-use environments. This enhances the lifespan and durability of your audio connections.

Q: How does the socket ensure safety and reliability?

A: The socket complies with RoHS standards, features flame-retardant rated materials (UL94V-0), and has high insulation resistance (>100M at 500V DC) and dielectric strength (>1000V AC/min), guaranteeing safe operation and excellent isolation in demanding audio applications.
