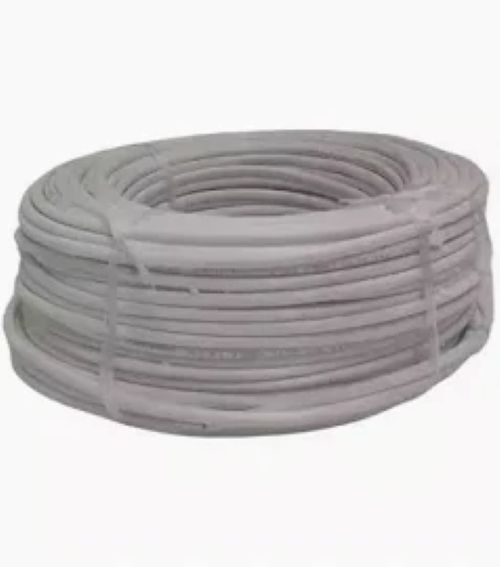

4 Plus 1 Cctv Camera Cable

Name: 4 Plus 1 Cctv Camera Cable
Brand: CHERRY CONNECTRONICS
Price: 875.0 INR
Availability: InStock

Price 875.0 INR/ Roll

Get a Price/Quote

MOQ : 1 Roll

4 Plus 1 Cctv Camera Cable Specification

Core Number
5

Dielectiric Strength
Up to 2.5kV

Weight
Depends on cable length (approx. 8-12 kg per 100m)

Number of Conductor
4+1 (4 for video, 1 for power)

Core Material
Copper

Features
High quality, durable, weather resistant, easy installation, ensures clear video signal transmission

Install Type
Indoor/Outdoor

Operating Temperature
-10C to +70C

Diameter
6-7mm (approx.)

Impedance
75 Ohm

Conductor Shape
Round

Rated Temperature
Up to 70C

Cable Type
Coaxial + Power

Tensile Strength
>10 MPa

Conductor Type
Solid/Stranded (based on requirement)

Usage & Applications
CCTV surveillance, security systems

Insulation
PVC Insulated

Armored Material
None (Unarmored)

Product Type
4 Plus 1 CCTV Camera Cable

Length
Available in 90 meters, 100 meters, 200 meters, as per requirement

Voltage
Up to 300V AC/DC

Insulation Material
PVC (Polyvinyl Chloride)

Application
Suitable for CCTV camera connections and surveillance systems

Conductor Material
Pure Copper

Jacket Material
PVC

Storage Temperature
-20C to +70C

Connector Color
Copper (conductor)

Shield Material
Braided Copper

Jacket Color
Black/White/Gray (available options)

Dimension (L*W*H)
Custom as per roll size

Color
Black, White, Gray

Material
Copper, PVC

Size
0.5 sq mm to 1 sq mm

Flame Retardant
Yes, FR grade PVC

Oxygen Index
>29%

Smoke Emission
Low smoke emission

Frequency Range
Up to 3 GHz (for video signal)

RoHS Compliance
Yes

Compatibility
Compatible with analog and HD CCTV cameras

UV Resistant
Yes, suitable for outdoor use

Minimum Bending Radius
7 x OD

Packing Type
Roll, drum, coil

Outer Diameter Tolerance
0.2mm

Screening Effectiveness
>60 dB

About 4 Plus 1 Cctv Camera Cable

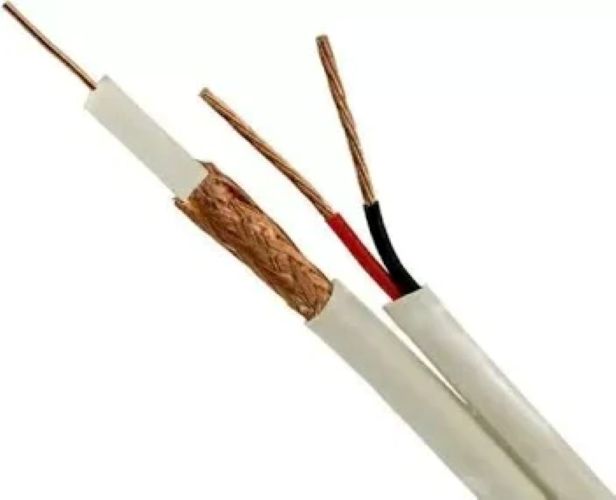

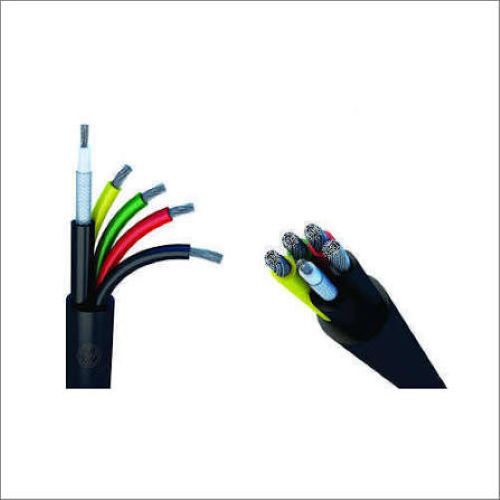

A 4+1 CCTV camera cable is an all-in-one surveillance cable that contains a high-quality coaxial cable for video signals and four smaller conductor wires for power and audio. This design simplifies installation by allowing a single, durable cable run to handle all the necessary functions for a CCTV camera, reducing clutter and installation time. Key features and benefits

All-in-one solution: Combines the video, power, and audio signals into a single cable, eliminating the need for multiple separate wires.
High-quality video: Uses a pure copper coaxial cable for the video signal, ensuring minimal signal loss and interference for a clear, crisp video feed.
Effective shielding: The coaxial core is typically shielded with a braided metal alloy to protect against electromagnetic interference (EMI), which can degrade video quality.
Durable construction: Features a robust PVC outer jacket for protection against environmental factors, making it suitable for both indoor and outdoor installations.
Simplified installation: Reduces the complexity of wiring, making it easier and faster to install security cameras.
Versatile compatibility: Compatible with most standard CCTV and surveillance camera systems that use BNC connectors for video and DC jacks for power.

Exceptional Video Signal Performance

Engineered to deliver video signals without quality loss, this CCTV cable operates seamlessly up to 3 GHz, making it compatible with both analog and HD CCTV cameras. Its advanced shielding ensures minimal interference, resulting in crystal-clear surveillance footage.

Safety and Durability Features

The cable boasts a flame retardant FR grade PVC outer jacket and a high oxygen index exceeding 29%, offering superior fire safety. Its low smoke emission adds another layer of security, while UV resistance guarantees performance even in challenging outdoor settings.

Versatile Installation and Use

Available in multiple packing types including rolls, drums, and coils, the cable provides flexibility for various installation needs. Its minimum bending radius (7 x OD) allows for easy routing during setup, catering to dealers, suppliers, and installation professionals.

FAQ's of 4 Plus 1 Cctv Camera Cable:

Q: How does the 4 Plus 1 CCTV Camera Cable ensure signal quality for surveillance systems?

A: With a frequency range up to 3 GHz and over 60 dB screening effectiveness, the cable guarantees high-quality video signal transmission and robust protection against electromagnetic interference, making it suitable for both analog and HD CCTV camera setups.

Q: What are the safety benefits of using this CCTV cable for installation?

A: The cable features flame retardant, FR grade PVC with an oxygen index greater than 29%, and emits low smoke during combustion. These characteristics significantly enhance fire safety in both indoor and outdoor installations.

Q: When should I consider using this cable for outdoor surveillance applications?

A: The cable is UV resistant and built to endure various weather conditions. Its durable construction makes it ideal for outdoor CCTV setups where long-lasting performance and protection against environmental factors are essential.

Q: Where can I purchase the 4 Plus 1 CCTV Camera Cable, and in what packing types is it available?

A: You can obtain the cable through distributors, dealers, suppliers, traders, importers, or manufacturers. It is supplied in roll, drum, or coil packaging to accommodate a variety of project scales and installation requirements.

Q: What is the recommended process for installing this CCTV camera cable?

A: For optimal performance, ensure the cable is bent no tighter than seven times its outer diameter (Minimum Bending Radius: 7 x OD) during installation. This preserves integrity and longevity during routing and setup.

Q: Is the cable compatible with newer HD CCTV camera systems as well as older analog systems?

A: Yes, this cable is engineered to work seamlessly with both analog and high-definition (HD) CCTV cameras, making it a versatile choice for new installations or upgrading existing surveillance infrastructure.
