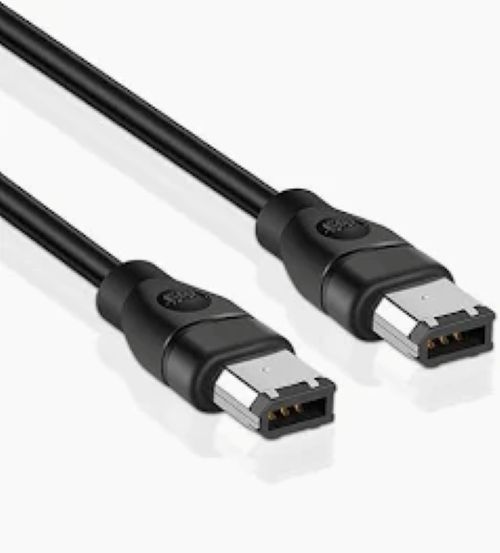

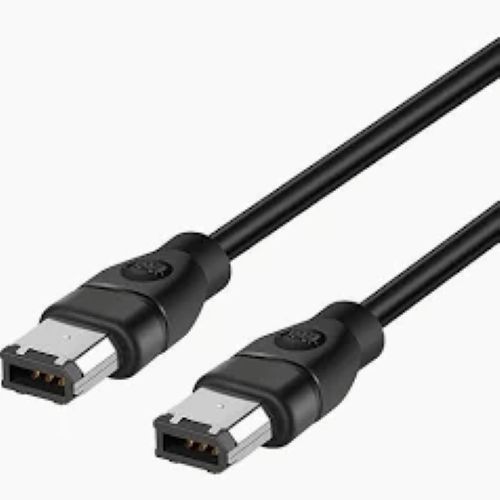

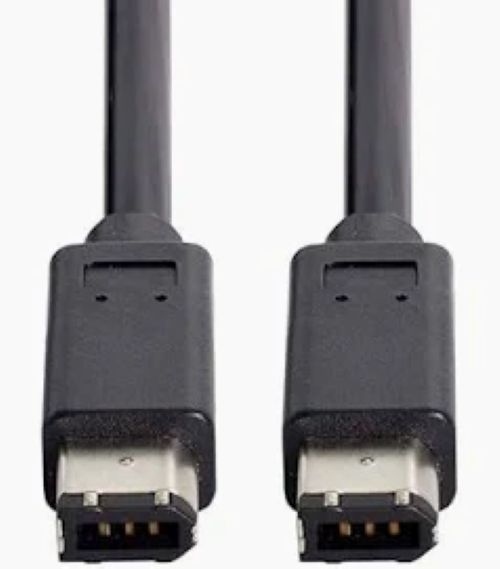

Fire Wire 6 Pin To 6 Pin Cable

Get a Price/Quote

Fire Wire 6 Pin To 6 Pin Cable Specification

Core Material
Copper

Usage & Applications
Data transfer, Video editing, Device connectivity

Conductor Shape
Round

Number of Conductor
6

Cable Type
IEEE 1394 FireWire

Dielectiric Strength
500VAC/minute

Install Type
External Cabling

Insulation
Dual layer

Conductor Type
Stranded

Features
High-speed data transfer, Plug and play, Hot swap capability, RoHS compliant

Operating Temperature
-20C to 80C

Diameter
5mm

Tensile Strength
Minimum 20N

Rated Temperature
-20C to 80C

Core Number
6

Impedance
110 Ohm

Weight
62g

Locking Type
Non-Locking

Product Type
FireWire (IEEE 1394) Data Transfer Cable

Length
1.5 Meter

Voltage
30V (Max)

Insulation Material
PVC

Application
Connects FireWire devices such as camcorders, external hard drives, or digital cameras to computers

Conductor Material
Tinned Copper

Jacket Material
Flexible PVC

Storage Temperature
-40C to +80C

Connector Color
Silver/Black

Shield Material
Aluminum Foil with Braided Shield

Jacket Color
Black

Dimension (L*W*H)
1500mm x 9mm x 5mm

Material
PVC, Copper, Aluminum

Color
Black

Size
6 Pin to 6 Pin

Storage Humidity
5% to 95% RH

Pin Configuration
6 Pin (Male) to 6 Pin (Male)

Outer Shield Coverage
65% Braid Density

Maximum Data Rate
Up to 400 Mbps (IEEE 1394a)

Packaging Type
Polybag/PVC Blister

Flame Retardant Rating
VW-1

RoHS Compliance
Yes

FireWire Standard
IEEE 1394a

Contact Resistance
30m max

Compatibility
Compatible with PC, Mac, and all IEEE1394 devices

Connector Plating
Nickel Plated

About Fire Wire 6 Pin To 6 Pin Cable

With the aid of diligent experts, we are able to bring forth pristine range of Fire Wire 6 Pin to 6 Pin. Our offered products are manufactured with quality material and modern technology by our skilled professionals. These products are tested by our quality controllers to assure its high durability. Besides, we offer these products at reasonable prices.
Features:
High tensile strength
Shock proof
Highly flexible

Robust High-Speed Connectivity for Digital Devices

This FireWire 6 Pin to 6 Pin Cable is ideal for connecting IEEE 1394a devices to computers. It delivers up to 400 Mbps transfer rate, ensuring fast and reliable data transmission for tasks such as video editing and large file transfers. Nickel-plated connectors and dual-layer insulation enhance durability, while a flexible PVC jacket enables easy external installation.

Enhanced Durability and Safety Features

Constructed with tinned copper conductors, 65% braid density aluminum shielding, and a flame-retardant PVC jacket rated VW-1, this cable ensures both electromagnetic protection and resilience against physical stress. It operates within a wide temperature range and is RoHS compliant, making it suitable for both professional and home environments.

Seamless Plug-and-Play Usage Across Devices

Designed for user ease, the FireWire cable offers true plug-and-play capability. No drivers or external power are required-simply insert both ends to connect digital camcorders, external storage, or cameras to PCs, Macs, or any IEEE1394-enabled device for instant data access or transfer.

FAQ's of Fire Wire 6 Pin To 6 Pin Cable:

Q: How do I use the FireWire 6 Pin to 6 Pin cable to connect my devices?

A: Simply insert one end of the cable into your computer's IEEE 1394a (FireWire) port and connect the other end to your compatible device, such as a camcorder or external hard drive. The cable supports plug-and-play and hot swap capability, so devices are detected instantly without the need for drivers.

Q: What devices are compatible with this FireWire 6 Pin to 6 Pin cable?

A: This cable is compatible with all devices supporting IEEE 1394a FireWire, including PCs, Macs, digital camcorders, external hard drives, and digital cameras. Please ensure both devices have 6-pin FireWire ports for proper connection.

Q: Where can I use this cable and what are its typical applications?

A: The cable is suited for both home and professional environments, such as studios or offices. Its main applications include high-speed data transfer, video editing, device connectivity, and external cabling for digital equipment like storage devices or AV peripherals.

Q: What are the benefits of the FireWire 6 Pin to 6 Pin cable over other data cables?

A: The cable offers rapid data transfer speeds up to 400 Mbps, robust shielding for noise reduction, and superior durability due to its flexible, flame-retardant PVC jacket and tinned copper conductors. Its hot swap and plug-and-play features provide ease of use without downtime.

Q: When should I consider replacing my FireWire cable?

A: If you notice intermittent connections, physical damage, or degradation in data transfer speed, it may be time to replace your cable. Proper storage and handling can help maintain its performance for an extended period.

Q: What process ensures the cable's safety and compliance?

A: The cable is manufactured to RoHS standards, incorporates dual-layer insulation for electrical safety, and possesses a VW-1 flame retardant rating. It is tested for contact resistance, tensile strength, and dielectric strength to meet rigorous international safety criteria.
