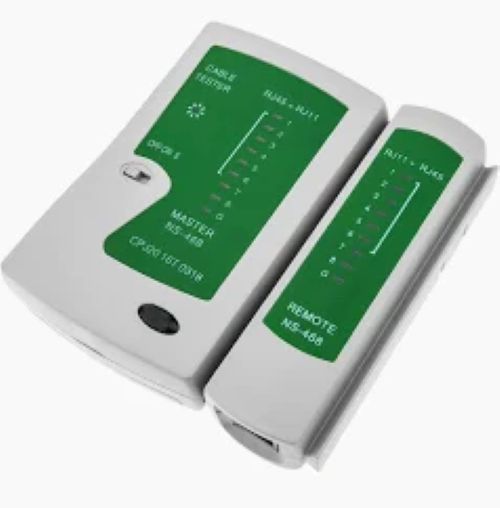

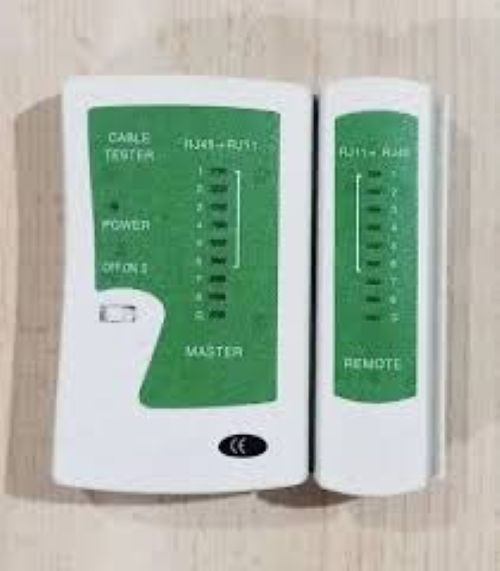

Lan Network Cable Tester , 300 m

Name: Lan Network Cable Tester , 300 m
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lan Network Cable Tester , 300 m Specification

Usage & Applications
LAN cable maintenance, installation, network troubleshooting, IT office, workshops

Install Type
Portable, handheld device

Cable Type
Tests RJ45, RJ11, RJ12 cables

Rated Temperature
0C to 40C operating

Features
Tests network cables such as RJ11, RJ12, and RJ45 for continuity, open, short, and miswiring; LED indicators for each pin; Master and remote unit for easy cable tracing; Simple On/Off switch operation; Battery operated; Portable and lightweight design.

Weight
Master: approx. 120g; Remote: approx. 60g

Operating Temperature
0C to 40C

Product Type
LAN Network Cable Tester

Length
Up to 300 meters testing capability

Voltage
9V DC (Battery operated)

Insulation Material
Plastic ABS housing

Application

Jacket Material
Not applicable (tester body is ABS plastic)

Storage Temperature
-10C to 50C

Connector Color
Not applicable (tester ports for RJ11/RJ45)

Shield Material
Not applicable (not a cable itself)

Jacket Color
White with green label

Dimension (L*W*H)
Approx. Master: 10.5 cm x 10 cm x 2.6 cm; Remote: 10.5 cm x 3.5 cm x 2.6 cm

Material
ABS Plastic

Color
White with green panel

Size
See dimensions above

Pin Indication
Individual LEDs for each pin 1-8, G

Main Ports
RJ45, RJ11

Display Type
LED Indicators

Power Switch
ON/OFF slide switch

Testing Distance
Up to 300 meters

Durability
Impact resistant housing

Main Unit
Master & Remote unit (detachable)

Test Modes
Manual and Automated Scan

Standards Supported
TIA/EIA, ISO/IEC for Ethernet cables

Compatible Cables
Cat5, Cat5e, Cat6, 6A, telephone cables

LED Color
Green

Power Supply
9V Battery (not included)

About Lan Network Cable Tester , 300 m

Network cable testers verify the functionality, continuity, and configuration of Ethernet cables (RJ45) and telephone lines (RJ11). They identify faults like broken wires (opens), short circuits, and miswired pairs, commonly used for testing CAT5/CAT6 cables. Common types range from simple continuity testers to advanced,,,TDR-based verifiers (Time-Domain Reflectometer) that measure cable length and locate faults.

Comprehensive Cable Testing

Easily check network and telephone cables for continuity, open circuits, shorts, and miswirings using this tester. Featuring both manual and automated scan modes, it ensures thorough diagnostics for Cat5, Cat5e, Cat6, 6A, RJ11, and RJ45 cables, adhering to TIA/EIA and ISO/IEC standards.

User-Friendly LED Display

Each pin is paired with an individual green LED indicator, providing clear, instant feedback on cable conditions. The master and detachable remote units let you test cables at long distances and hard-to-reach locations, enhancing convenience during installations or troubleshooting projects.

Rugged and Portable Design

Built from impact-resistant ABS plastic, the tester is suited for busy IT offices, workshops, and on-site projects. Its compact size, easy ON/OFF slide switch, and lightweight build ensure reliable operation and effortless transportation, powered conveniently by a 9V battery (not included).

FAQ's of Lan Network Cable Tester , 300 m:

Q: How does the LAN Network Cable Tester work?

A: This tester sends signals through each individual pin of your Ethernet or telephone cable and displays the cable's status via green LED indicators. You can select between manual and automated scan modes to check for continuity, open circuits, shorts, and miswiring.

Q: What types of cables and connectors can I test with this device?

A: The tester supports RJ45, RJ11, and RJ12 connectors, and is compatible with Cat5, Cat5e, Cat6, 6A, and most telephone cables. This makes it suitable for both network and standard telephone cable diagnostics.

Q: When should I use the manual versus automated scan mode?

A: Use the manual mode for step-by-step pin-by-pin testing, providing full control for detailed inspections. The automated scan mode is ideal for quicker, comprehensive checks, automatically cycling through all pins for rapid troubleshooting.

Q: Where can I utilize this cable tester effectively?

A: It is perfect for use in IT offices, workshops, at installation sites, or anywhere LAN network cables and telephone lines need to be tested-especially over longer distances up to 300 meters with the detachable master and remote units.

Q: What is the process for testing a cable?

A: Simply connect one end of your cable to the master unit and the other end to the remote unit. Power the tester using a 9V battery, turn it on with the slide switch, and observe the LED indicators for instant results on each pin.

Q: What are the benefits of using this LAN cable tester?

A: The tester quickly identifies issues like open circuits, shorts, and miswirings, ensuring reliable network performance. It saves time during troubleshooting or installations, thanks to its portability, easy operation, and durable construction.
