PANEL MOUNTING CONNECTORS

Name: PANEL MOUNTING CONNECTORS
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

PANEL MOUNTING CONNECTORS Specification

Rated Temperature
-25C to +85C

Conductor Type
Solid/Stranded

Install Type
Panel mount

Core Material
Copper

Number of Conductor
2 to 8

Features
Durable construction, High conductivity, Easy installation, Corrosion-resistant contacts, Secure locking mechanism

Armored Material
No armored version

Locking Type
Screw/Threaded

Impedance
50 / 75 optional

Dielectiric Strength
2000V AC/minute

Conductor Shape
Round

Tensile Strength
50N (contact retention)

Weight
Approx. 21g

Diameter
16 mm / 18 mm / as per design

Core Number
Multi-core

Cable Type
Custom/Standard cable compatible

Usage & Applications
Industrial, Automation, Electronic panels, Instrumentation

Operating Temperature
-25C to +85C

Insulation
PVC/Polycarbonate

Product Type
Panel Mounting Electrical Connectors

Length
Custom as per requirement

Voltage
Up to 250V AC

Insulation Material
Polycarbonate, PVC

Application
Electrical panels, Industrial equipment, Control panels, Automation systems

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-40C to +85C

Connector Color
Black/Gray

Shield Material
Nickel-plated Brass

Jacket Color
Black

Dimension (L*W*H)
Varies by model (Standard: 43x26x23 mm)

Color
Black, Silver, Gray

Material
High-grade thermoplastic and metal alloys

Size
Standard/Custom

Ingress Protection
IP65/IP67 (depending on model)

Mechanical Life
>500 mating cycles

Contact Resistance
5 m

Flame Retardant
Yes (UL94V-0 Rated)

Protection Class
IP67 (mated)

Current Rating
Up to 10A

Package Content
Connector body, mounting hardware, manual

Contact Plating
Gold/Nickel plated contacts

Environmental Compliance
RoHS, REACH

Connection Type
Solder/Cage Clamp

Insulation Resistance
1000 M (at 500V DC)

Terminal Type
Screw/Push

Mounting Hole Size
22 mm standard

About PANEL MOUNTING CONNECTORS

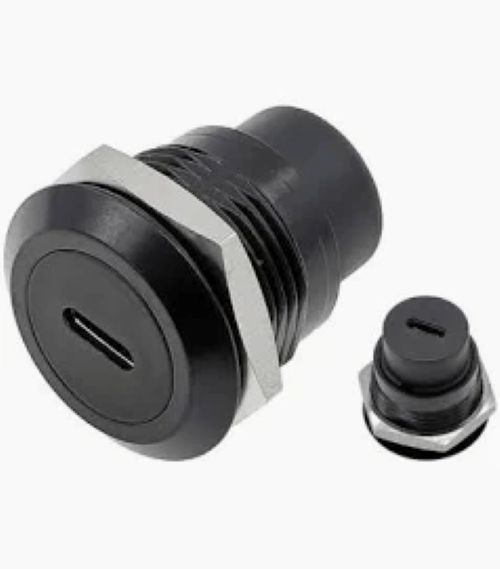

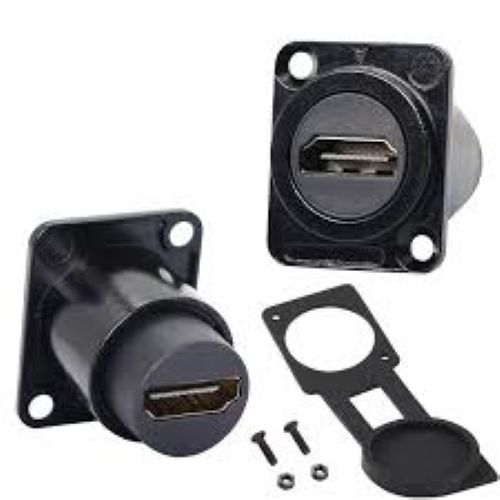

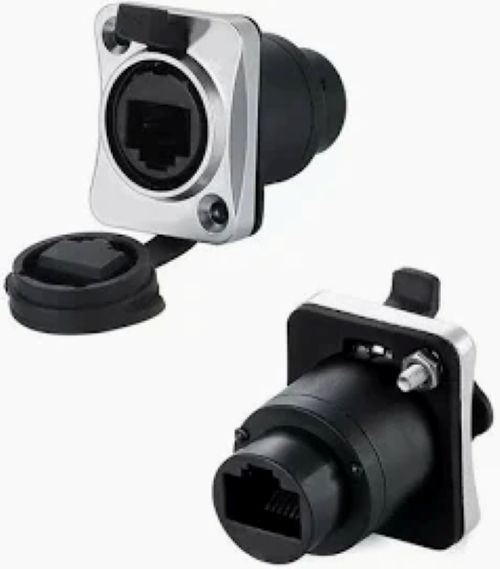

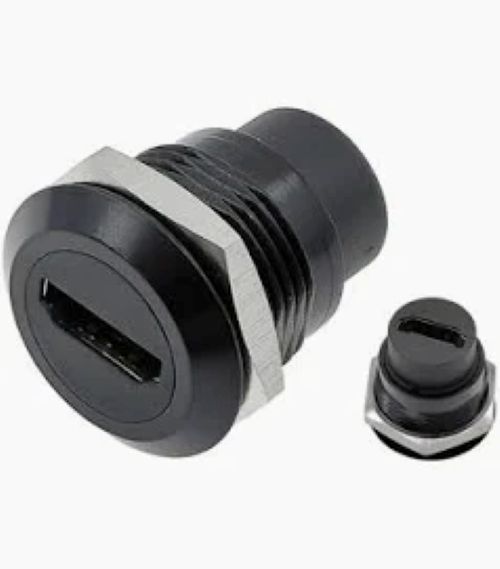

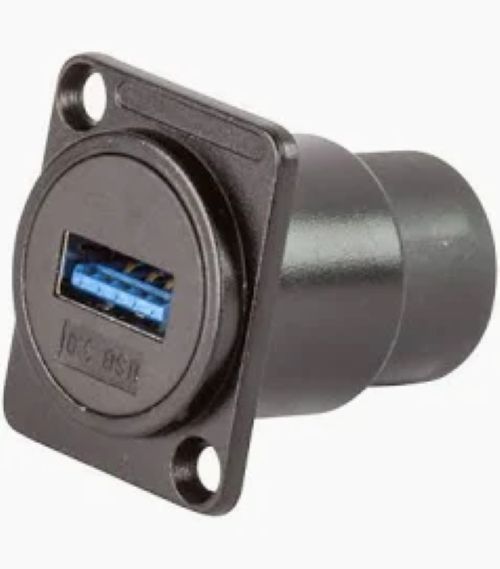

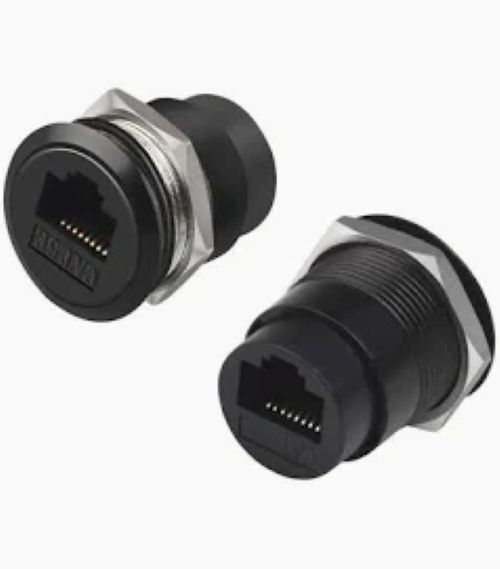

Panel mounting connectors use for industrial installation and audio video installation. Available in RJ45, HDMI, TYPE C, USB 2.0, USB 3.0, ETC. Compatible with a wide range of devices including gaming consoles, laptops, monitors, and projectors, it enables seamless cable extension and reliable signal pass-through for high-performance AV environments.

Rugged Protection for Demanding Applications

Designed to meet IP65 and IP67 ingress protection standards, our panel mounting connectors offer complete resistance against dust and water when mated. This makes them ideal for use in demanding industrial environments, automation systems, and control panels where reliability and safety are critical.

Versatile and Easy Installation

Featuring both screw and push terminal types, these connectors support easy, secure, and flexible installation. Solder or cage clamp connection options allow for quick assembly, while the standard 22mm mounting hole size ensures broad compatibility with a range of equipment and panels.

High-Performance Materials for Longevity

Manufactured using high-grade thermoplastics, nickel-plated brass shielding, and gold/nickel-plated copper contacts, the connectors are built for durability and consistent electrical performance. They withstand temperatures from -25C to +85C and over 500 mating cycles, making them suitable for long-term use in a wide array of electrical and electronic systems.

FAQ's of PANEL MOUNTING CONNECTORS:

Q: How are panel mounting connectors installed into electrical panels?

A: Panel mounting connectors are easily installed by inserting them into a 22mm standard mounting hole on the panel, then securing them with the provided mounting hardware. Installation can be completed using the screw or push terminal types, depending on your equipment and cable compatibility.

Q: What environments are these connectors suitable for?

A: These connectors are built with an IP67 protection class (when mated) and are flame-retardant (UL94V-0 rated), making them suitable for industrial automation, control panels, instrumentation, and harsh environments where exposure to dust, water, or high temperatures may occur.

Q: What types of cables and conductors are compatible with these connectors?

A: The connectors accept both standard and custom cables with solid or stranded copper conductors, and support multi-core configurations (2-8 conductors). They are compatible with round-shaped copper wires, and can be used with both PVC and polycarbonate insulation materials.

Q: What are the electrical performance features of these connectors?

A: Boasting a current rating of up to 10A, voltage support up to 250V AC, contact resistance as low as 5 m, and insulation resistance of 1000 M at 500V DC, the connectors deliver high conductivity and reliable signal integrity. Gold/nickel-plated contacts ensure corrosion resistance and long-term stable connections.

Q: When should I use the IP67 version over IP65?

A: The IP67 version should be selected for applications where the connector may be fully exposed to dust and occasional immersion in water (up to 1 meter depth for 30 minutes). IP65 is sufficient for environments with dust and water spray but not continuous immersion.

Q: What is included in the connector's package?

A: Each package includes the connector body, matching mounting hardware, and a user manual to ensure straightforward installation and integration into your system.

Q: What are the main benefits of using these panel mounting connectors?

A: Key benefits include durable construction, high electrical and mechanical performance, simple installation, corrosion-resistant contacts, secure locking, and compliance with international safety standards. This combination minimizes downtime and guarantees reliable operation in demanding settings.
