Dlink Cat 6 IO

Name: Dlink Cat 6 IO
Brand: CHERRY CONNECTRONICS
Price: 90.0 INR
Availability: InStock

Price 90.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Dlink Cat 6 IO Specification

Number of Conductor
8 (4 pairs)

Weight
Approx. 25g

Locking Type
Snap-in locking tab

Operating Temperature
-10C to +60C

Cable Type
Cat 6 UTP (Unshielded Twisted Pair)

Features
Toolless termination, IDC termination, Snap-in, Supports high-speed data transmission, RoHS compliant, Universal compatibility

Impedance
100 Ohms

Core Number
8 contacts

Rated Temperature
-10C to +60C

Usage & Applications
Networking socket/faceplate for LAN & Ethernet applications

Install Type
Snap-in, Toolless, Compatible with standard faceplate

Insulation
High-impact thermoplastic UL94V-0 rated

Conductor Type
Supports solid and stranded cable

Core Material
Phosphor bronze with gold plating

Product Type
Keystone Jack / Information Outlet (IO)

Length
N/A (modular jack/faceplate component)

Voltage
N/A (passive component)

Insulation Material
High-impact flame-retardant plastic

Application
Networking, structured cabling, LAN, data transmission

Conductor Material
Compatible with copper cables

Jacket Material
N/A (not applicable for IO)

Storage Temperature
-40C to +70C

Connector Color
White

Shield Material
Unshielded (UTP)

Dimension (L*W*H)
Approx. 50 x 25 x 30 mm

Color
White

Material
Polycarbonate (housing)

Size
Standard keystone, fits 86-type box

Packaging
Individually packed in poly bags

Housing Flammability Rating
UL94V-0

Contact Plating
50 microinch gold plating on contacts

Maximum Insertion Cycles
750 cycles minimum

Mounting Standard
Keystone compatible, 22-26 AWG cable

IDC Compatibility
Dual IDC (110 & Krone) for flexible termination

Module Type
RJ45 female socket

Wiring Scheme
Compatible with T568A & T568B

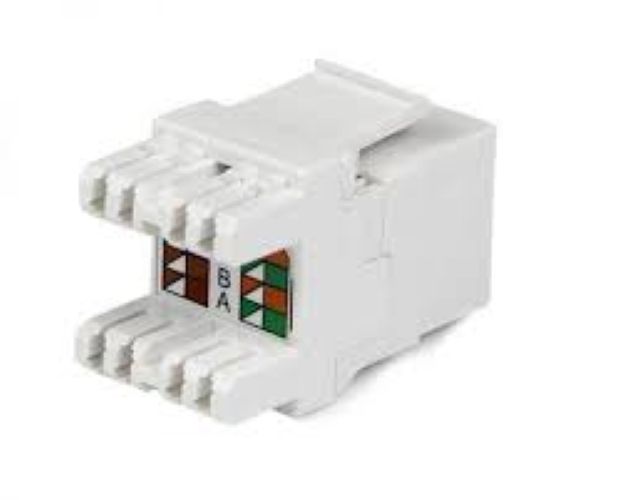

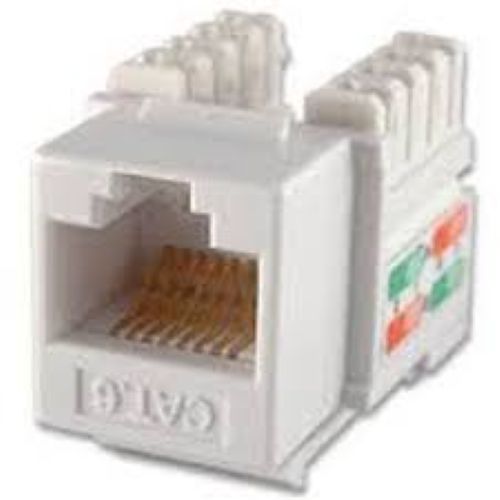

About Dlink Cat 6 IO

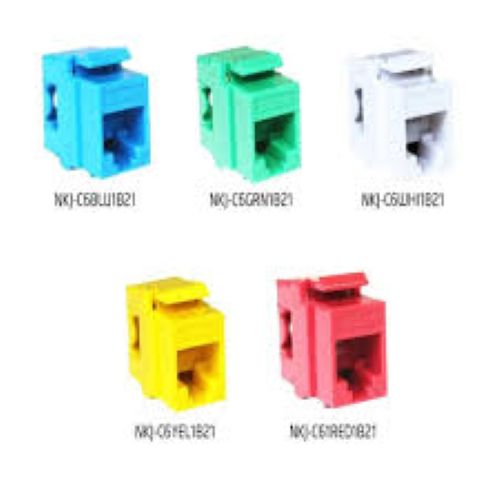

Cat 6 io for punching cables. Its available in different colours. Its fit in single and dual plate .This connector designed for Cat 6 networking cables, ideal for use in structured cabling systems for high-speed Ethernet connections.

Versatile Compatibility for Secure Networks

This modular RJ45 Cat 6 IO accepts both 22-26 AWG solid and stranded cables and supports universal keystone mounting, making it suitable for a variety of structured cabling projects. Its dual IDC compatibility (110 & Krone) provides exceptional termination flexibility for installers, enhancing its adaptability in different network environments.

Built for Performance and Longevity

Engineered with phosphor bronze contacts plated with 50 microinch gold, the D-Link Cat 6 IO delivers excellent conductivity and signal integrity. Rated for over 750 insertion cycles and constructed from flame-retardant, high-impact polycarbonate, it promises dependable performance and user safety in demanding commercial or home network setups.

FAQ's of Dlink Cat 6 IO:

Q: How do I install the D-Link Cat 6 IO keystone jack?

A: Installation is simple thanks to its toolless, snap-in design. Align the IO module with the keystone faceplate opening, press it firmly until it locks, and use the dual IDC terminals (compatible with 110 and Krone tools) to terminate the cable, following the T568A or T568B wiring scheme as required.

Q: What types of cables are compatible with this Cat 6 IO module?

A: This module supports 22-26 AWG solid and stranded copper cables, specifically designed for use with CAT6 UTP (unshielded twisted pair) cables in structured network cabling.

Q: When should I use a keystone compatible IO module like this?

A: You should use this IO module when building or upgrading structured LAN, Ethernet, or data transmission networks that require modular, snap-in jacks for seamless integration into faceplates or patch panels.

Q: Where can the D-Link Cat 6 IO be installed?

A: This IO module fits standard keystone faceplates and 86-type back boxes, making it suitable for both residential and commercial network outlets-including offices, homes, schools, and server rooms.

Q: What is the process for terminating cables using the dual IDC on this product?

A: Prepare the cable, untwist and arrange the pairs according to the chosen wiring scheme (T568A or T568B). Insert them into the IDC slots and use the appropriate punch-down tool (110 or Krone) to terminate each wire securely into place.

Q: How does this IO module benefit my network setup?

A: Its high-performance design ensures stable, high-speed data transmission and reliability. The toolless termination expedites installation, while durable gold-plated contacts and flame-retardant housing enhance safety and longevity.

Q: Is this product suitable for high-density network installations?

A: Yes, with its standard keystone size and snap-in locking tab, it's ideal for high-density installations in patch panels, wall plates, or surface mount boxes, supporting efficient, organized, and safe cable management.
