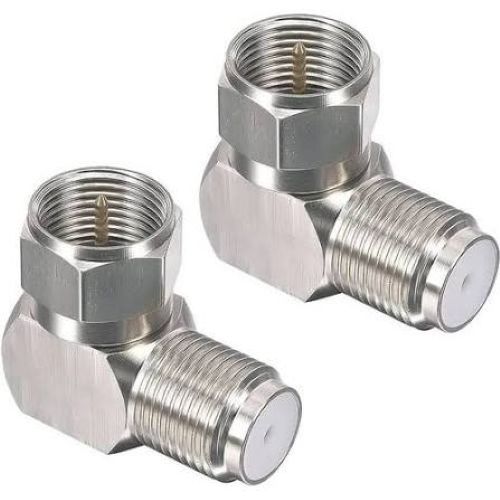

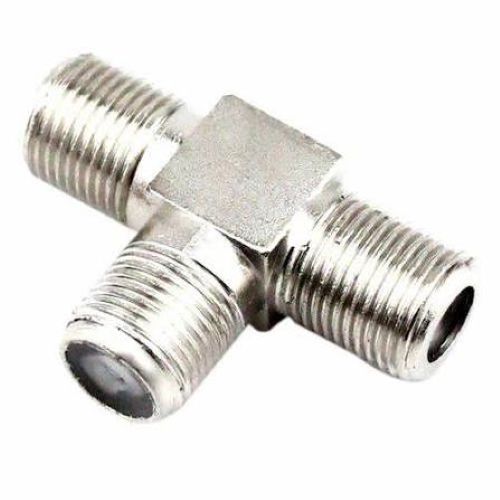

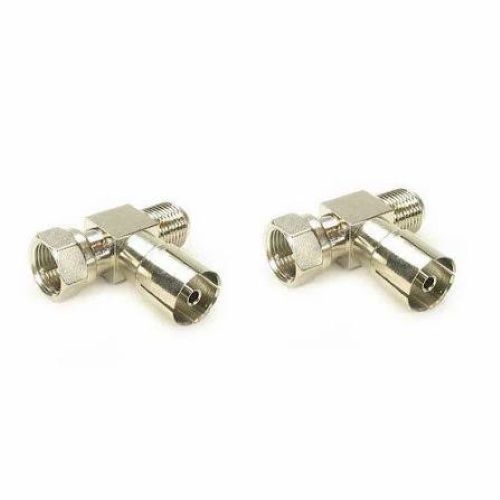

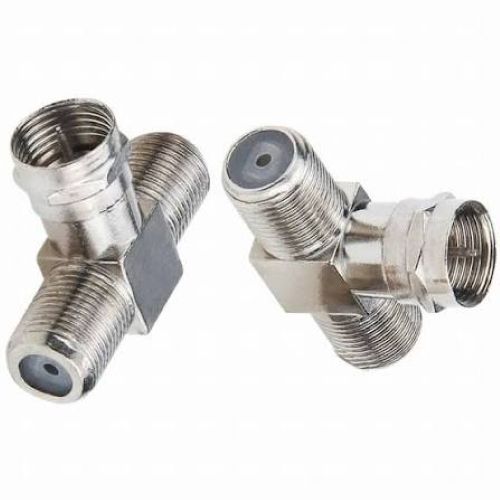

Send InquiryTV Cable Connector
Price 35.0 INR/ Unit
MOQ : 1 Unit
TV Cable Connector Specification
- Cable Type
- Coaxial cable adapter (F type to TV male)
- Conductor Type
- Solid
- Conductor Shape
- Round pin
- Features
- High-quality signal transmission, corrosion-resistant, easy installation, secure fit
- Core Material
- Brass
- Rated Temperature
- -20C to +60C
- Operating Temperature
- -20C to +60C
- Impedance
- 75 Ohms
- Dielectiric Strength
- Not applicable (connector only)
- Usage & Applications
- Television antenna connections, cable TV, RF signal distribution
- Install Type
- Screw-on
- Number of Conductor
- Single
- Locking Type
- Threaded (screw-on)
- Weight
- Approx 8-12g per connector
- Core Number
- Single core
- Tensile Strength
- Good mechanical strength (specific data not provided)
- Product Type
- TV Cable Connector (Coaxial F type to TV male adapter)
- Length
- Standard connector size (not for cable itself)
- Voltage
- Up to 12V DC (for typical TV applications)
- Insulation Material
- None (bare metal connector)
- Application
- TV signal connection, coaxial cable joining, set-top boxes, antenna interfaces
- Conductor Material
- Brass
- Jacket Material
- Nickel-plated brass
- Storage Temperature
- -30C to +70C
- Connector Color
- Silver
- Shield Material
- Nickel-plated brass
- Jacket Color
- Silver
- Dimension (L*W*H)
- Approximately 3cm x 2cm x 1.5cm
- Material
- Nickel-plated brass
- Color
- Silver
- Size
- Connects standard RG6/RG59 coaxial cable
- RoHS Compliance
- Yes
- Frequency Range
- DC to 1 GHz
- Contact Resistance
- 3m
- Contact Plating
- Nickel
- Packaging
- Polybag or as specified
- Connector Gender
- Male to Female adapter
- Humidity Tolerance
- Up to 95% RH, non-condensing
- Mating Cycles
- >500 cycles
About TV Cable Connector
We have all types of connectors ,audio video ,industrial connectors,cctv connectors ,pro audio connectors Xlr,bnc,specon,mono jacks ,mrs connectors,M 12 connectors ,Computer plugs.Enhanced Signal Reliability
Engineered with nickel-plated brass and a solid brass conductor, this adapter ensures high-quality signal transmission and durability. The threaded, screw-on design guarantees a tight, stable connection, reducing the risk of signal drop-out and interference common with loose connectors.
Adaptable & Easy Installation
This connector fits standard RG6/RG59 coaxial cables and is compatible with a variety of TV applications. The installation is simple-just screw the male connector onto the female port for a secure fit. No special tools or insulation materials are required, making setup quick and efficient every time.
FAQ's of TV Cable Connector:
Q: How do I install the male to female TV cable connector?
A: Simply screw the male end of the connector into your device's female input (such as a TV or set-top box), and attach the female side to your coaxial cable. The threaded, screw-on design ensures a secure and stable connection without the need for special tools.Q: What types of cables are compatible with this adapter?
A: The adapter is designed for standard RG6 and RG59 coaxial cables, making it suitable for most television, antenna, and cable TV signal applications.Q: Where can I use this connector for optimal performance?
A: The connector is ideal for indoor TV setups, antenna connections, RF signal distribution, and set-top box interfaces. It's best used in environments with temperatures between -20C to +60C and can handle humidity up to 95% RH (non-condensing).Q: What are the advantages of the nickel-plated brass material used in this connector?
A: Nickel-plated brass offers superior corrosion resistance and mechanical strength, ensuring long-lasting performance and maintaining signal quality even in demanding environments.Q: Is the installation process complicated for this TV cable connector?
A: No, installation is straightforward. The connector is designed with a screw-on locking mechanism for quick and easy attachment, ensuring a secure fit every time without extra equipment.Q: What is the lifespan of this connector in terms of mating cycles?
A: This connector has been tested for over 500 mating cycles, assuring reliable and repeated use without degradation in performance.Q: Does this adapter comply with environmental standards?
A: Yes, the connector is RoHS compliant, meeting current environmental standards for restricted substances in electronic components.
