SDI CABLE BNC To BNC Video Professional Cable

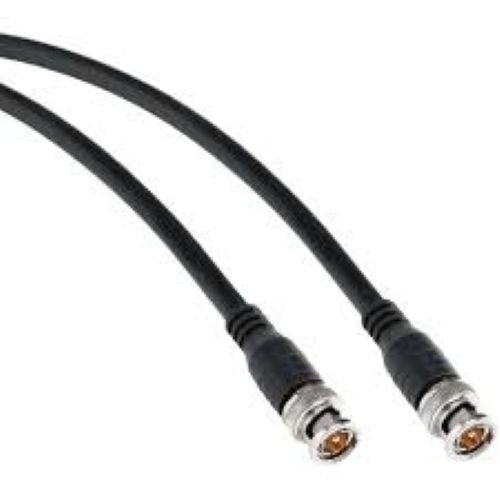

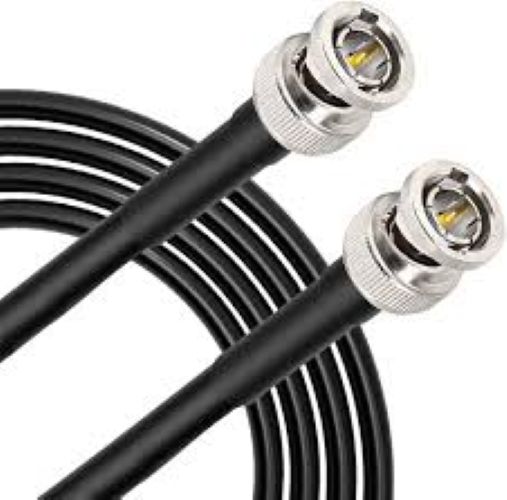

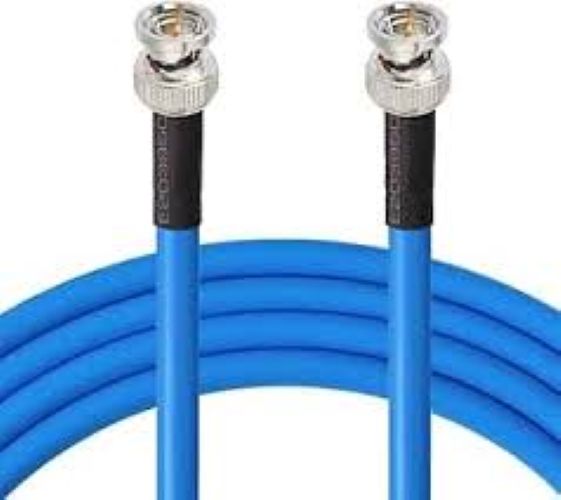

Name: SDI CABLE BNC To BNC Video Professional Cable
Brand: CHERRY CONNECTRONICS
Price: 750.0 INR
Availability: InStock

Price 750.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SDI CABLE BNC To BNC Video Professional Cable Specification

Usage & Applications
Studio camera, monitoring, digital video recorder, professional video transfer, TV broadcast.

Armored Material
Non-armored

Core Material
Copper

Install Type
Plug & Play, Panel Mount, Field Installable

Conductor Type
Stranded/Core

Dielectiric Strength
2000 V AC/min

Insulation
HDPE

Number of Conductor
1 (Coaxial)

Features
High-definition video transmission, low signal loss, durable build, professional-grade connectors, flexible cable structure, precision BNC to BNC locking.

Weight
Varies as per cable length (approx. 65g/meter)

Rated Temperature
-20C to +70C

Impedance
75 Ohms

Cable Type
SDI Coaxial Cable

Locking Type
BNC Twist Lock

Tensile Strength
High, suitable for frequent installation and removal

Diameter
6mm

Core Number
Single Core

Operating Temperature
-20C to +70C

Conductor Shape
Round

Product Type
Professional Video Coaxial Cable

Length
Customized (commonly available in 1.5M, 3M, 5M, 10M, 20M, and more)

Voltage
Rated up to 30V

Insulation Material
High-density Polyethylene (HDPE)

Application
Professional video transmission, broadcasting, CCTV, studios, video monitoring equipment

Conductor Material
Pure Copper

Jacket Material
PVC

Storage Temperature
-30C to +80C

Connector Color
Silver (metallic BNC connectors)

Shield Material
Tinned Copper Braiding

Jacket Color
Black

Dimension (L*W*H)
Varies as per cable length; typical diameter 6mm

Material
Copper, PVC, Metal BNC Connectors

Color
Black

Size
Standard 6mm OD

Fire Resistance
Flame retardant jacket

Suitable For
1080p, 720p, SDI, HD-SDI, 3G-SDI, SD cameras and devices

Connector Plating
Nickel-plated BNC

Bend Radius
Minimum 60mm

Return Loss
>= 23dB up to 1GHz

Frequency Range
Up to 3GHz (suitable for HD-SDI/3G-SDI signal)

Attenuation
0.5dB/100m at 1MHz

RoHS Compliance
Yes

Standards Compliance
Complies with SMPTE standards

Connector Type
Male BNC to Male BNC

About SDI CABLE BNC To BNC Video Professional Cable

SDI Cable available in all size as per requirement ,brands available in belden and prime with neutrik connectors . This cable is faster than others, it is efficient and low signal loss.

Professional-Grade Transmission

Engineered for high-fidelity HD and 3G-SDI video signals, this cable ensures minimal signal loss and distortion, making it an ideal choice for demanding broadcast and monitoring applications. With a pure copper core and high-density polyethylene insulation, it maintains exceptional signal integrity even over long distances.

Versatile, Flexible, and Robust

Designed with flexibility in mind, the SDI BNC to BNC Video Cable features a robust yet pliable PVC jacket and tinned copper braiding for superior shielding and flame resistance. Its minimum bend radius of 60mm allows for easy routing during installations in tight spaces, ensuring durability and performance without signal compromise.

Effortless Compatibility and Compliance

Each cable complies with SMPTE standards and comes RoHS certified, providing compatibility with a wide range of professional equipment including SDI, HD-SDI, 3G-SDI cameras, video monitors, DVRs, and TV broadcast systems. Featuring simple plug-and-play BNC Twist Lock connectors, it's suitable for rapid field deployment and studio setups alike.

FAQ's of SDI CABLE BNC To BNC Video Professional Cable:

Q: How is the SDI BNC to BNC Video Cable installed for professional video transmission?

A: The cable is designed for straightforward plug-and-play setup using BNC Twist Lock connectors, allowing quick and secure connections between cameras, monitors, DVRs, or other video equipment. The flexible structure and standard 6mm diameter make it easy to route and install in studio racks, control rooms, or field broadcast setups.

Q: What makes this SDI cable suitable for HD-SDI and 3G-SDI signals?

A: This cable supports up to 3GHz frequency range with impedance matched at 75 Ohms, meeting SMPTE standards for HD-SDI and 3G-SDI video transmission. The pure copper conductor and high-density polyethylene insulation ensure low signal loss (attenuation of 0.5dB/100m at 1MHz), preserving image clarity for high-definition applications.

Q: When should I choose a longer length for my SDI BNC to BNC Video Cable?

A: The appropriate length depends on the physical distance between your source and destination devices. Longer cables are ideal for large studios, OB vans, or broadcast environments, while shorter cables work well for rack-mounted or closely-located equipment. The cable provides reliable performance across all lengths due to low loss characteristics.

Q: Where can this cable be used effectively?

A: The SDI BNC to BNC Video Cable is suitable for a range of professional environments including TV broadcast studios, video monitoring systems, digital video recorders, CCTV installations, and OB (Outside Broadcast) field units. Its rugged build supports frequent installation and removal without compromising durability.

Q: What are the key benefits of using this professional SDI cable over standard video cables?

A: Key benefits include high-definition signal integrity, robust shielding against interference, flame-retardant construction, RoHS compliance, and SMPTE standards certification. Its nickel-plated BNC connectors, precision locking mechanism, and durable materials make it reliable for demanding, mission-critical video transfer tasks.

Q: How does the cable ensure safety and signal reliability in diverse environments?

A: The cable features flame-retardant PVC jacket, tinned copper braiding for superior EMI shielding, and a wide operating temperature range (-20C to +70C). These factors, along with its high tensile strength and insulation rated for 2000 V AC/min dielectric strength, ensure both safety and uninterrupted signal performance in challenging conditions.
