Name: Mini XLR Connector
Brand: CHERRY CONNECTRONICS
Price: 130.0 INR
Availability: InStock

Price 130.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mini XLR Connector Specification

Operating Temperature
-20C to +70C

Install Type
Panel mount or cable mount

Tensile Strength
30N (Cable Retention)

Impedance
110 Ohm (typical)

Core Number
3 or 4

Number of Conductor
3 to 5 (varies by variant)

Features
Compact design, secure locking mechanism, lightweight, low signal loss

Conductor Type
Stranded

Weight
Approx. 8g

Insulation
Polymer insulation

Locking Type
Push-button locking

Dielectiric Strength
500V AC/1min

Usage & Applications
Professional audio, stage equipment, mixers, wireless systems

Rated Temperature
-20C to +70C

Diameter
Approx. 12mm

Core Material
Copper

Cable Type
Balanced Audio Cable

Conductor Shape
Round

Product Type
Mini XLR Connector

Length
Varies (cable length determined by application)

Voltage
Rated at up to 50V

Insulation Material
Plastic (Polymer)

Application
Audio equipment, microphones, broadcast, professional audio interfacing

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-30C to +85C

Connector Color
Silver/Black

Shield Material
Metal (Nickel-plated brass)

Jacket Color
Black

Dimension (L*W*H)
Approx. 42mm x 12mm x 12mm

Color
Black & Silver

Material
Nickel-plated brass, engineering plastic

Size
Miniature/Small

Standard
IEC 61076-2-103 compatible

Protection Class
IP30

Current Rating
2-5A (depending on model)

Contact Resistance
5m

Connector Gender
Female

Contact Plating
Gold or silver plated

RoHS Compliance
Yes

Mounting Style
Cable Mount

Insulation Resistance
1000M at 500V DC

Insertion/Withdrawal Cycles
5000 cycles

About Mini XLR Connector

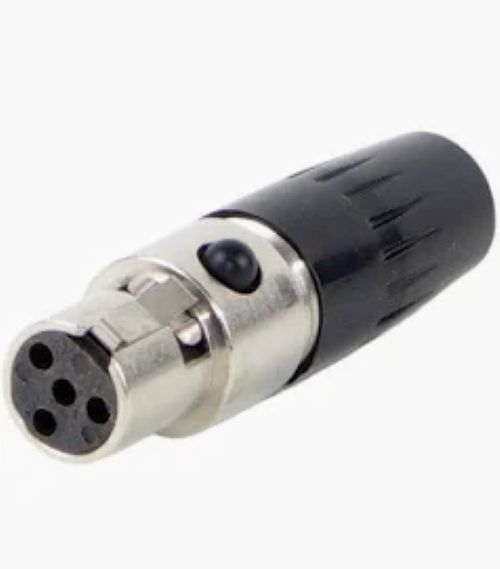

The 3/4/5-pin Mini XLR connector, a compact female plug, features a robust design with three pins, four pins and five pins for secure connectivity. Commonly used in audio applications, it offers a reliable connection for microphones, headsets, and other audio equipment.

Features:

Small, robust female plug.
Secure audio connections.
Ideal for mics, and headsets.

Superior Connection for Audio Professionals

Designed with both reliability and performance in mind, the Mini XLR Connector is an ideal choice for professionals across audio and broadcast industries. Its compact, lightweight build ensures easy integration in tight spaces, while the push-button locking mechanism guarantees secure signal transmission, even in demanding environments. Engineered with high-quality copper conductors and gold or silver-plated contacts, this connector minimizes signal loss and maximizes durability for repetitive use.

Versatile, Standards-Compliant Design

Meeting IEC 61076-2-103 compatibility and RoHS requirements, the Mini XLR Connector delivers peace of mind for integrators, manufacturers, and distributors. The IP30 protection class and sturdy construction, including nickel-plated brass shielding and robust polymer insulation, offer reliable performance across a wide range of temperature, mechanical, and electrical conditions. Available in multiple core variants for balanced audio transmission, it supports flexible configurations for microphones, stage equipment, and more.

FAQ's of Mini XLR Connector:

Q: How is the Mini XLR Connector typically used in professional audio setups?

A: The Mini XLR Connector is commonly used to connect microphones, wireless audio equipment, and mixers in professional audio, broadcast, and stage environments. Its compact size and secure cable mount design make it ideal for situations where space and reliability are crucial.

Q: What benefits does the low contact resistance and gold or silver plating provide?

A: Low contact resistance (5m) and the gold or silver-plated contacts ensure minimal signal loss and high conductivity, resulting in clear audio transmission with less potential for noise or degradation, even over many cycles of use.

Q: When should I choose the Mini XLR Connector over standard XLR connectors?

A: Choose the Mini XLR Connector when space-saving, lightweight solutions are required without sacrificing durability or performance. Situations like compact audio devices, portable systems, or wearables particularly benefit from its smaller footprint and robust locking design.

Q: Where can the Mini XLR Connector be installed?

A: It can be installed in any environment compatible with its temperature and protection ratings, such as studios, live stages, broadcast vans, and portable audio gear. Both panel mount and cable mount configurations are available, offering flexible installation methods.

Q: What is the process for connecting and disconnecting this Mini XLR Connector?

A: The connector features a push-button locking mechanism for quick and secure connections. Simply align, insert, and push until it locks; press the button to release the connector for disconnection, supporting up to 5000 insertion/withdrawal cycles.

Q: What safety and compliance standards does the Mini XLR Connector meet?

A: This connector complies with IEC 61076-2-103 and European RoHS standards, ensuring environmentally responsible design and manufacturing. It also provides adequate protection for audio signals with its IP30 classification and dielectric strength of 500V AC for one minute.
