Name: Mini Round Shell Connectors
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mini Round Shell Connectors Specification

Cable Type
Multi-core round cable

Conductor Type
Stranded

Core Number
2, 3, 4, 5, 6, 8

Core Material
Copper

Weight
Approx. 10-50g depending on configuration

Operating Temperature
-40C to +85C

Usage & Applications
Suitable for connections in control and automation, measuring equipment, power transmission, and signal interfaces

Rated Temperature
-40C to +85C

Diameter
Standard 12mm or customizable

Install Type
Panel mount / Inline mount

Tensile Strength
> 30N

Insulation
High-grade thermoplastic

Armored Material
Optional Steel Braiding

Features
Compact size, robust construction, quick-connect design, multi-pin configuration

Conductor Shape
Round

Dielectiric Strength
1500V AC/min

Number of Conductor
2 to 8 (depending on configuration)

Locking Type
Bayonet or threaded coupling

Impedance
Nominal 50 Ohms

Product Type
Mini Round Shell Connectors

Length
As per requirement (customizable)

Voltage
Up to 250V AC/DC

Insulation Material
Thermoplastic

Application
Industrial automation, sensors, control systems, medical equipment, instrumentation

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-55C to +105C

Connector Color
Black

Shield Material
Copper alloy

Jacket Color
Black or grey

Dimension (L*W*H)
Varies by model (typically mini round)

Material
Thermoplastic, Copper Alloy, PVC

Color
Black, grey

Size
Miniature

Sealing
360 EMI/RFI shielding

Contact Plating
Gold-plated contacts

Vibration Resistance
Meets IEC 60512-4 standard

Temperature Range
-40C to +85C (operating), -55C to +105C (storage)

IP Rating
IP67 (dustproof and waterproof)

Contact Resistance
10 m

Operating Frequency
DC to 1GHz

Mounting Type
Cable mount, panel mount, PCB mount (optional)

Mating Cycle Durability
500 cycles

Flame Retardant
Yes, UL94V-0 rated

Max Current
5A per contact

Wire Range
28-18 AWG

Environmental Compliance
Lead-free, halogen-free

Package Type
Individual polybag, bulk packing, or customized

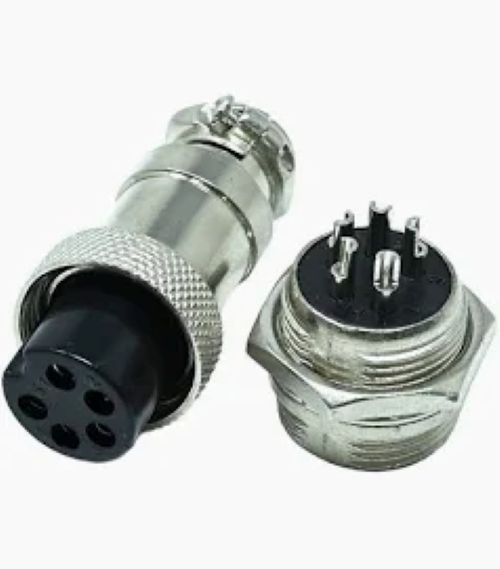

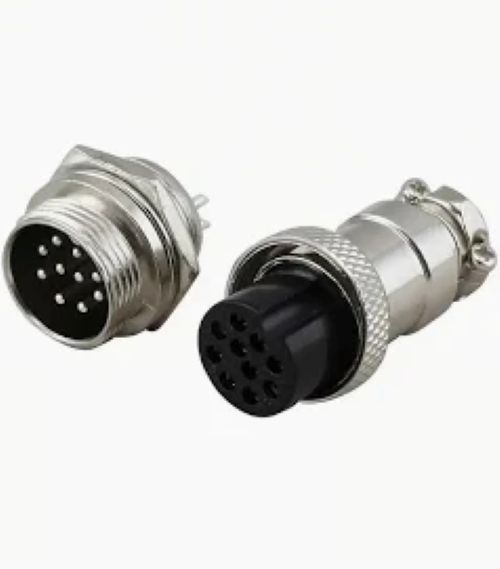

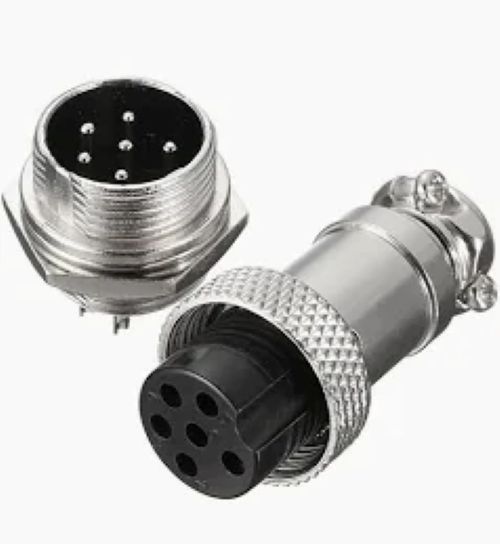

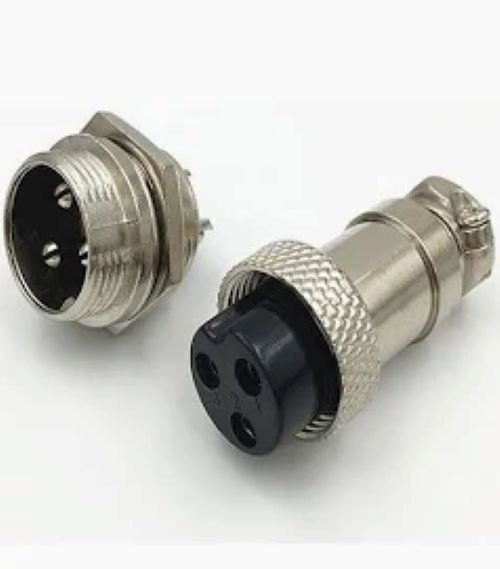

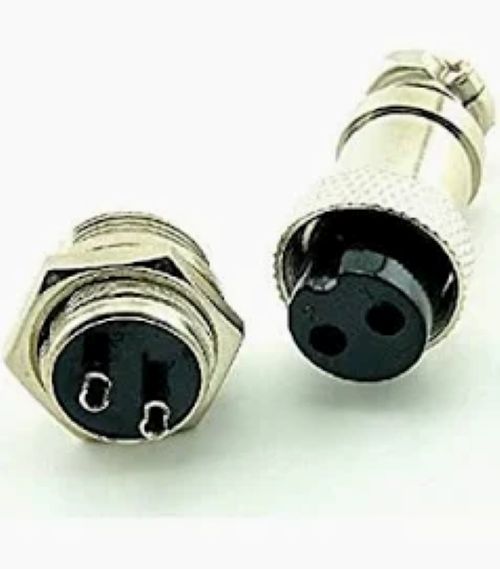

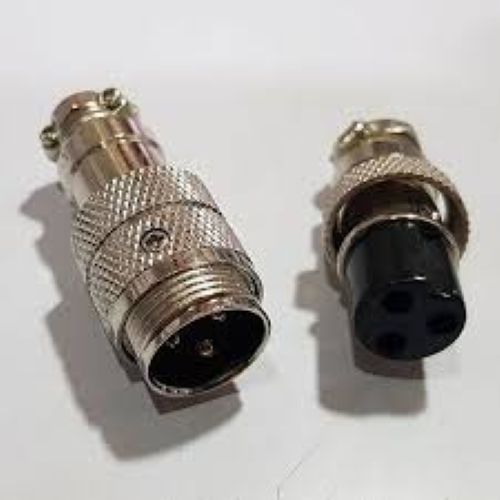

About Mini Round Shell Connectors

Mini round shell connectors (commonly termed MRS connectors or miniature circular aviation plugs) are compact multi-pin electrical interfaces used to establish secure, space-saving signal and low-voltage power connections. Known for their tight threaded or bayonet locking mechanisms, they prevent accidental disconnections caused by industrial vibrations or physical pulling.

Reliable Environmental Protection

With an IP67 ingress protection rating, these connectors are fully dustproof and can withstand immersion in water, making them ideal for outdoor and industrial use. The temperature range from -40C to +85C ensures reliable operation in challenging environments, while high flame retardancy (UL94V-0) and lead/halogen-free materials support compliance with safety and environmental standards.

Durable and Versatile Performance

Each connector guarantees robust performance over 500 mating cycles, supported by gold-plated contacts for low contact resistance and corrosion prevention. Their compact size, armored options, and multiple mounting styles-cable, panel, and PCB-enable flexible integration in equipment for automation, measurement, and medical applications. 360 EMI/RFI shielding ensures signal integrity even in high-interference settings.

Flexible Customization and Easy Installation

Offered in 2 to 8 conductor variations and supporting wire sizes from 28-18 AWG, these connectors can be tailored to fit diverse configuration needs. Secure locking mechanisms (bayonet or threaded) allow for quick, reliable connections, while multiple packaging and jacket color options meet specific project requirements.

FAQ's of Mini Round Shell Connectors:

Q: How do the Mini Round Shell Connectors ensure environmental protection in harsh conditions?

A: These connectors come with an IP67 rating, providing complete dustproofing and protection against temporary immersion in water. The robust thermoplastic insulation and 360 EMI/RFI shielding further protect against environmental hazards and signal interference, making them suitable for industrial and outdoor uses.

Q: What is the recommended usage for the Mini Round Shell Connectors?

A: They are ideal for industrial automation, sensors, control systems, medical equipment, instrumentation, and any application requiring reliable signal or power connections under tough conditions. Their flame-retardant and vibration-resistant design ensures safety and stability in demanding environments.

Q: When should I consider choosing gold-plated contacts for my connectors?

A: Gold-plated contacts are beneficial in environments where low contact resistance and long-term durability are needed. They prevent corrosion and wear, maintain low electrical resistance over 500 mating cycles, and are especially useful in high-reliability or low-signal applications.

Q: Where can these connectors be mounted in a system?

A: Mini Round Shell Connectors support various mounting types, including cable mount, panel mount, and PCB mount options. This flexibility allows installation in control panels, devices, enclosures, or directly onto printed circuit boards as required by your design.

Q: What process should be followed for customizing length and core configuration?

A: Customization involves selecting the appropriate number of cores (from 2 to 8), the required conductor size, and specifying the cable length. Additional choices include jacket color (black or grey), armored options, and specific mounting or packaging preferences. Discuss these specifications with your supplier or manufacturer to ensure optimal performance and fit.

Q: What benefits does the quick-connect design and locking mechanism provide?

A: The bayonet or threaded coupling allows for swift and secure connections. This quick-connect feature reduces installation time and ensures the connector is reliably locked in place, minimizing the risk of accidental disengagement during operation.

Q: How do these connectors meet safety and environmental compliance standards?

A: Made from lead-free, halogen-free thermoplastics and boasting a UL94V-0 flame retardancy rating, these connectors prioritize user safety and environmental responsibility. Their robust construction fulfills IEC 60512-4 vibration standards, ensuring they meet industry-specific safety expectations.
