Metal RCA Connector with Spring

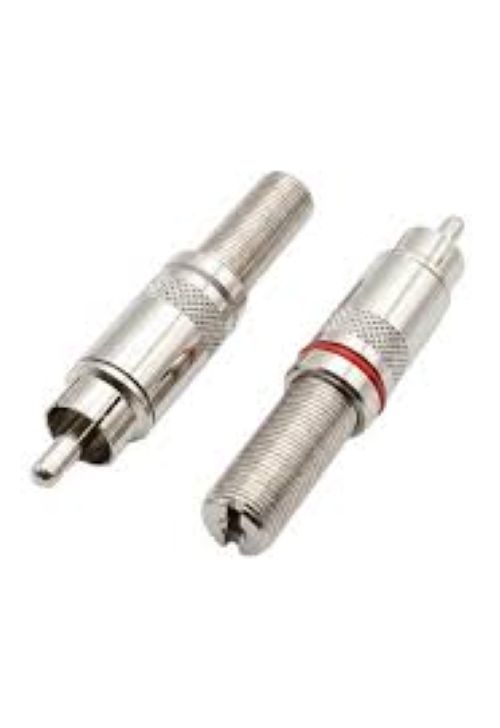

Name: Metal RCA Connector with Spring
Brand: CHERRY CONNECTRONICS
Price: 45.0 INR
Availability: InStock

Price 45.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Metal RCA Connector with Spring Specification

Rated Temperature
-20C to 70C

Diameter
Approx. 10 mm

Tensile Strength
High mechanical strength, suitable for multiple inserts/removals

Locking Type
Spring strain relief

Insulation
PVC

Impedance
75 Ohms

Operating Temperature
-20C to 70C

Usage & Applications
Professional AV equipment, home theaters, car audio, broadcasting, video surveillance

Features
Nickel-plated, corrosion-resistant, with spring strain relief, compact and durable design

Conductor Shape
Round

Dielectiric Strength
500V AC/min

Install Type
Solder type

Number of Conductor
1

Conductor Type
Solid

Weight
Approximately 12g

Core Number
Single-core

Core Material
Copper

Cable Type
Coaxial/Audio cable

Product Type
RCA Male Plug Connector

Length
Standard length or as required

Voltage
Up to 50V

Insulation Material
PVC

Application
Audio-video transmission, Home theater, Amplifier, Speaker, TV, DVD, Projector, Audio Equipment

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-25C to 85C

Connector Color
Silver

Shield Material
Copper

Jacket Color
Black

Dimension (L*W*H)
Approx. 60mm x 10mm x 10mm

Material
Metal (Nickel-plated brass and stainless steel spring)

Color
Silver & Black

Size
Standard RCA size (approx. 60 mm length)

Assembly Required
No soldering required (for some models)

Contact Plating
Nickel or gold-plated

Gender
Male

Mounting Type
Cable mount / Free hanging

Maximum Cable Diameter Supported
Up to 6mm

Compatibility
Standard RCA female jack

Contact Resistance
30m

Body Material
Nickel-plated brass

Environmental Compliance
Pb-Free, RoHS

Surface Finish
Nickel-plated

Insulation Resistance
100M at 500V DC

Flammability Rating
UL94V-0

Center Pin Material
Gold-plated brass

Frequency Range
DC - 4MHz

Packing Type
Individual polybag or bulk

About Metal RCA Connector with Spring

A metal RCA connector with a spring (commonly known as a spring-tail or strain-relief RCA plug) is a heavy-duty audio/video connector featuring an integrated coiled metal spring at the rear

Built for Precision and Reliability

With a solid copper conductor and gold-plated brass center pin, this RCA connector offers superior signal transmission and corrosion resistance. Its tough nickel-plated exterior and PVC insulation ensure longevity, while supporting up to 500V dielectric strength and 75-ohm impedance for clear audio-video performance.

Versatile Applications Across Industries

Designed for use with coaxial and audio cables, this connector fits seamlessly into home theaters, car audio systems, amplifiers, video surveillance, and professional AV setups. Its single-core design and round conductor make it suitable for a wide array of audio-video transmission needs.

Easy Installation and Enhanced Durability

The connector features a cable mount/free-hanging style, with some models requiring no soldering for swift assembly. Its spring strain relief adds flexibility and protects the cable from stress, making it suitable for environments with frequent plugging and unplugging. The product supports standard length and is individually polybagged or available in bulk packaging.

FAQ's of Metal RCA Connector with Spring:

Q: How do I install the Metal RCA Connector with Spring?

A: This connector is designed for easy cable mounting and free-hanging installation. Most models support solder-type connections; however, some versions can be assembled without soldering, making the process straightforward for both professionals and enthusiasts.

Q: What applications is this connector best suited for?

A: This RCA connector is ideal for audio-video transmission in home theaters, amplifiers, car audio systems, TVs, DVD players, projectors, and a variety of professional AV equipment. Its high mechanical strength and compact design make it suitable for both fixed and portable setups.

Q: When should I choose a gold or nickel-plated contact?

A: Gold-plated contacts are recommended when maximum corrosion resistance and signal clarity are needed, such as in high-end audio systems. Nickel-plated options provide solid durability and performance for standard applications and environments with moderate exposure to moisture.

Q: Where can the connector be used safely?

A: This connector can be utilized in environments with operating temperatures between -20C and 70C and stored safely from -25C to 85C. Its flammability rating of UL94V-0 and robust build make it safe for professional and home settings.

Q: What benefits does the spring strain relief provide?

A: The integrated stainless steel spring strain relief feature ensures that the connection withstands frequent bending and cable movement, reducing the risk of wire fatigue and extending product lifespan, especially in high-use environments.

Q: Is this RCA connector compliant with environmental standards?

A: Yes, the connector is manufactured to be Pb-Free and RoHS compliant, ensuring reduced environmental impact and suitability for markets with strict hazardous substance regulations.
