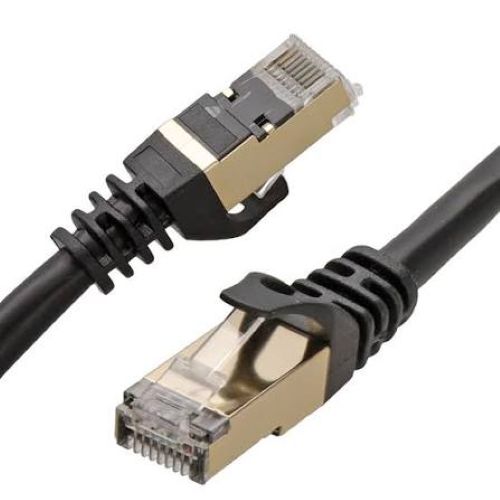

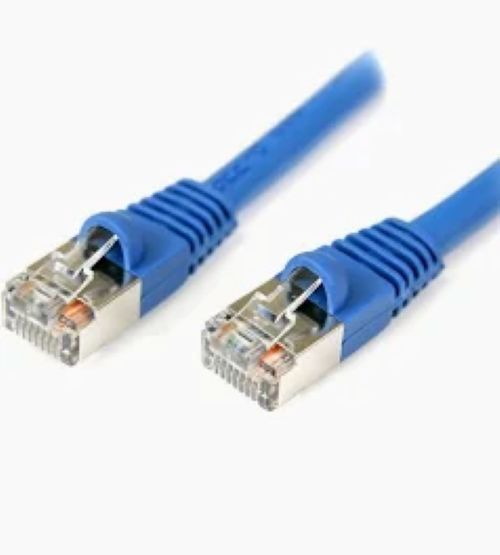

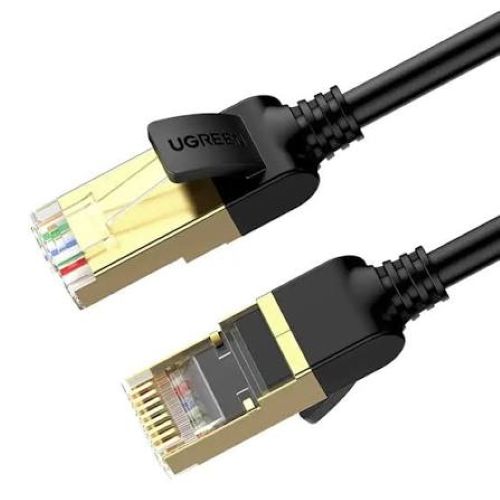

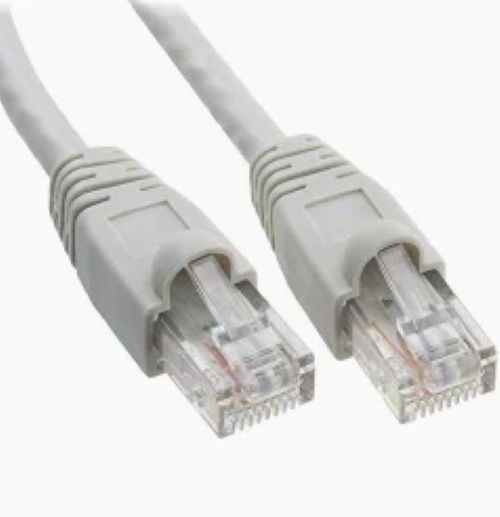

Cat 7 RJ 45 patch cord

Name: Cat 7 RJ 45 patch cord
Brand: CHERRY CONNECTRONICS
Price: 180.0 INR
Availability: InStock

Price 180.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Cat 7 RJ 45 patch cord Specification

Conductor Shape
Solid/Stranded

Insulation
HDPE

Locking Type
Clip Lock RJ45

Usage & Applications
LAN, Ethernet, High-speed internet, Telecom networking

Core Material
Copper

Install Type
Plug-and-play, Pre-terminated

Diameter
6.0 0.2 mm

Weight
Approx. 40g (for 1 meter)

Features
High-speed data transfer, S/FTP (Shielded Foiled Twisted Pair), Backward compatible with Cat 6, Cat 5e

Number of Conductor
8

Tensile Strength
Max 100N

Dielectiric Strength
1.5 kV/1min

Cable Type
Cat 7 S/FTP Patch Cord

Rated Temperature
-20C to +75C

Conductor Type
Twisted Pair

Operating Temperature
-20C to +75C

Impedance
100 Ohm 15%

Core Number
4 pairs (8 cores)

Product Type
Cat 7 RJ 45 Patch Cord

Length
1 Meter, 2 Meter, 3 Meter, 5 Meter, Custom lengths available

Voltage
300V max

Insulation Material
HDPE (High-Density Polyethylene)

Application
Networking, Data centers, Server rooms, Offices, Home networks

Conductor Material
Pure Copper

Jacket Material
PVC

Storage Temperature
-40C to +80C

Connector Color
Transparent

Shield Material
Aluminum Foil + Braided Shielding

Jacket Color
Blue

Dimension (L*W*H)
Varies with length, Standard RJ45 Connector size

Color
Blue

Material
Copper, PVC, Aluminum Foil

Size
Standard RJ45

Attenuation
<= 21 dB/100m at 600 MHz

Return Loss
>= 20 dB at 600 MHz

PoE Support
Yes (Power over Ethernet)

Connector Type
Shielded RJ45 8P8C plug

RoHS Compliance
Yes, RoHS compliant

Standards Compliance
ISO/IEC 11801 Class F, EN 50173-1, TIA/EIA-568-B.2-1

Frequency Range
600 MHz

Fire Rating
CM-rated jacket

Minimum Bend Radius
24 mm

Contact Plating
50 Micron Gold Plated Contacts

Packaging
Individual polybag

Data Rate
Up to 10 Gbps

About Cat 7 RJ 45 patch cord

We have cat 5 , cat 6 ,cat 7 patch cords in colours and different lengths,pure copper ,and heavy connector with warranty.Suitable for high-speed data transmission in networking environments

High-Speed Data Transfer & Exceptional Shielding

Cat 7 S/FTP patch cords support up to 10 Gbps data rates and advanced 600 MHz bandwidth, ensuring optimal performance for demanding applications. The shielded foiled twisted pair (S/FTP) construction with pure copper conductors and aluminum foil plus braided shielding protects against electromagnetic and radio frequency interference, delivering stable, high-quality connections in busy environments.

Durable Build & Versatile Application

Constructed with a rugged CM-rated PVC jacket and solid or stranded copper cores, this cable withstands temperatures from -20C to +75C with a tensile strength of up to 100N. Available in blue, the cord suits a range of environments-offices, data centers, home networks, and more-where dependable, high-bandwidth, and Power over Ethernet (PoE) support is essential.

FAQ's of Cat 7 RJ 45 patch cord:

Q: How does the Cat 7 RJ45 patch cord enhance network speed and reliability?

A: The Cat 7 patch cord supports speeds up to 10 Gbps at 600 MHz frequency due to its S/FTP shielding, pure copper conductors, and high-quality gold-plated connectors. This results in reduced signal loss and interference, assuring stable high-speed data transmission.

Q: What are the recommended applications for this Cat 7 patch cord?

A: This Cat 7 cable is ideal for networking, data centers, server rooms, office environments, and home networks. Its high bandwidth and Power over Ethernet (PoE) support make it suitable for fast internet connections, telecom networking, and advanced LAN setups.

Q: When is it beneficial to use Cat 7 cables over Cat 6 or Cat 5e?

A: Cat 7 cables are recommended when you require higher data rates (up to 10 Gbps), better noise immunity, and more robust shielding against interference. They are especially beneficial in environments with high electromagnetic interference or where maximum network performance is critical.

Q: Where can these Cat 7 patch cords be installed, and what lengths are available?

A: These cords are suitable for use in data centers, offices, homes, and server rooms. They come in standard lengths (1, 2, 3, and 5 meters) and custom sizes upon request, providing flexible installation options for varied network layouts.

Q: What is the process for connecting and using this Cat 7 RJ45 patch cord?

A: Simply use the pre-terminated, plug-and-play shielded RJ45 connectors to connect networking devices. The cable's clip-lock RJ45 ensures a secure fit and reliable performance with minimal setup effort.

Q: What are the benefits of the cable's CM-rated jacket and RoHS compliance?

A: The CM-rated PVC jacket provides fire resistance and safety compliance for in-building applications, while RoHS compliance assures the cable is free from hazardous materials, supporting environmentally-responsible installations.
