Coaxial Cable Rg58

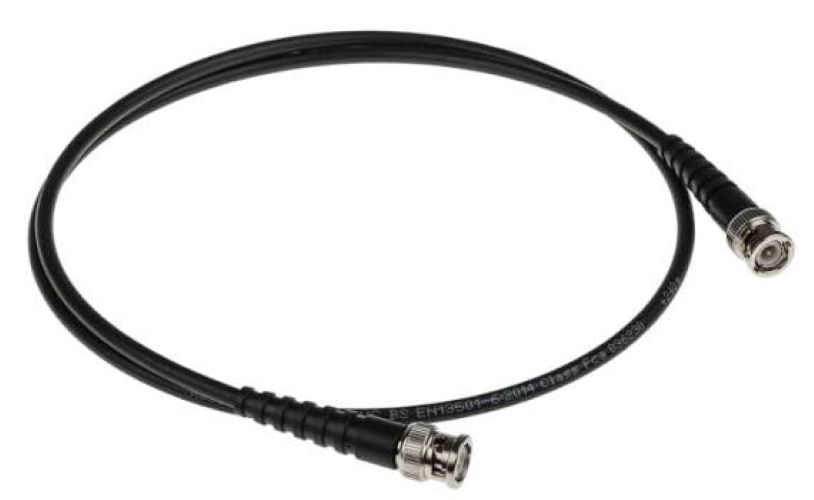

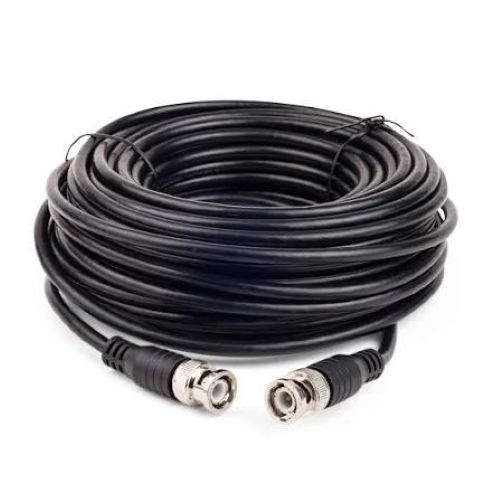

Name: Coaxial Cable Rg58
Brand: CHERRY CONNECTRONICS
Price: 48.0 INR
Availability: InStock

Price 48.0 INR/ Meter

Get a Price/Quote

MOQ : 1 Meter

Coaxial Cable Rg58 Specification

Impedance
50 Ohm

Number of Conductor
1

Conductor Type
Single core

Tensile Strength
Adequate for typical cable installations

Weight
Approx. 35 kg/km

Conductor Shape
Solid or Stranded

Dielectiric Strength
High - suitable for RF applications

Install Type
Indoor/Outdoor installation

Core Material
Copper

Insulation
Polyethylene

Operating Temperature
-40C to +80C

Diameter
4.95 mm

Armored Material
Typically not armored

Usage & Applications
Radio frequency (RF) communications, radio antennas, test lines, networking

Features
Flexible, lightweight, good signal transmission, easy to install, low signal loss.

Rated Temperature
-40C to +80C

Locking Type
Depends on connector (e.g., BNC); Cable itself is non-locking

Cable Type
Coaxial RG58

Core Number
1

Product Type
Coaxial Cable

Length
Available in various lengths (typically 100 meters per reel).

Voltage
Voltage rating up to 1.9 kV

Insulation Material
Polyethylene (PE), Foam PE

Application
RF signal transmission, CCTV, radio communications, data transmission, test equipment.

Conductor Material
Tinned Copper

Jacket Material
PVC (Polyvinyl Chloride)

Storage Temperature
-20C to +60C

Connector Color
Not applicable (depends on connector, cable itself is typically black)

Shield Material
Tinned copper braid, Aluminium foil

Jacket Color
Black

Dimension (L*W*H)
Diameter ~4.95 mm (round cable)

Material
Copper, PE, PVC

Color
Black

Size
Diameter ~4.95 mm

Fire Rating
RoHS compliant, low smoke

Inner Conductor Diameter
0.9 mm

Capacitance
Approx. 101 pF/m

Maximum Working Frequency
Up to 1 GHz

Packaging
Rolls or spools, custom lengths upon request

Minimum Bend Radius
Approximately 5 times cable diameter

Attenuation (at 100 MHz)
Approx. 11.1 dB/100m

Shield Coverage
Coverage typically >95%

Velocity of Propagation
66% (solid PE), 78% (foam PE)

About Coaxial Cable Rg58

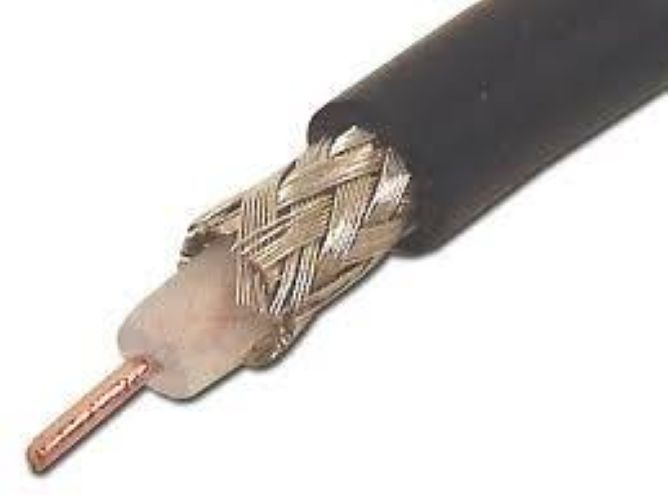

RG58 coaxial cable with a tin-plated copper braid is a 50-ohm cable commonly used for low-power signal and RF connections. It features a stranded tinned copper inner conductor, polyethylene (PE) insulation, a tinned copper braid shield, and a PVC jacket. The tin plating on the copper braid provides corrosion resistance and improved solderability. Provides moderate flexibility, making it suitable for various installation environments where the cable needs to be routed around corners or in tight spaces. Operates within a temperature range of -40C to +85C, allowing it to perform reliably in a wide range of environmental conditions.

High Shield Coverage for Enhanced Signal Integrity

The RG58 coaxial cable delivers exceptional shield coverage, typically exceeding 95%. This comprehensive shielding protects against external electromagnetic interference, enhancing overall signal performance and reliability in demanding electrical environments.

Versatile Electrical Performance

With a capacitance of approximately 101 pF/m and attenuation around 11.1 dB/100m at 100 MHz, this cable is engineered for efficient signal transmission across a broad range of applications. Its maximum working frequency of up to 1 GHz makes it suitable for many RF communication uses.

Flexible and Safe Installation Options

Designed for flexibility, RG58 offers a minimum bend radius of about five times the cable's diameter. It is RoHS compliant and emits low smoke, making it safe for indoor and densely populated settings. Custom lengths and various packaging options allow for tailored project solutions.

FAQ's of Coaxial Cable Rg58:

Q: How should I choose between solid PE and foam PE insulation for RG58 cable?

A: The decision between solid PE and foam PE insulation affects the cable's velocity of propagation-66% for solid PE and up to 78% for foam PE. Foam PE provides lower attenuation and faster signal transmission, making it preferable for longer runs or higher-frequency applications.

Q: What is the benefit of RG58 cable's high shield coverage?

A: The RG58's shield coverage, typically exceeding 95%, significantly reduces interference from external signals and crosstalk, resulting in more reliable data transmission and improved signal integrity for both commercial and industrial settings.

Q: When is RG58 cable typically used?

A: RG58 is often used in RF communication, instrumentation, and laboratory settings due to its broad frequency range (up to 1 GHz) and moderate attenuation, making it suitable for many signal transmission applications including amateur radio and test equipment.

Q: Where can I purchase RG58 coaxial cable, and in what packaging formats?

A: You can acquire RG58 coaxial cables through authorized dealers, distributors, manufacturers, and wholesalers. They are available in rolls, spools, or custom-cut lengths according to your project requirements.

Q: What is the standard process for bending and installing RG58 cable?

A: During installation, ensure bending is kept to a minimum radius of five times the cable diameter to maintain signal integrity and prevent damage to internal components. This helps retain both flexibility and performance over time.

Q: What are the safety and compliance features of RG58 coaxial cables?

A: RG58 cables comply with RoHS standards and are manufactured to emit low smoke. This ensures safer installation in indoor environments and areas with strict fire safety regulations.
