Neutrik Audio Connector

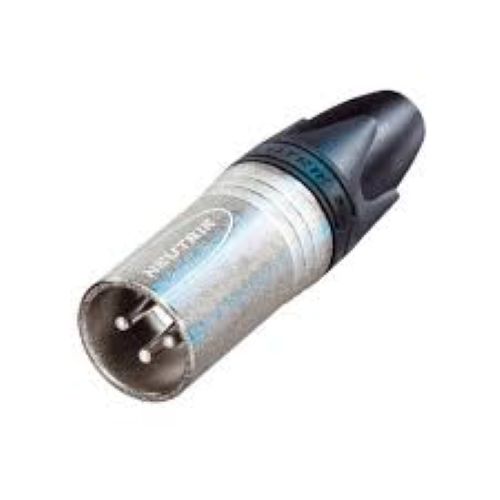

Name: Neutrik Audio Connector
Brand: CHERRY CONNECTRONICS
Price: 260.0 INR
Availability: InStock

Price 260.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Neutrik Audio Connector Specification

Diameter
13 mm (maximum body diameter)

Dielectiric Strength
1 kVdc (typically)

Operating Temperature
-20C ~ +65C

Impedance
Contact resistance <6 m, Insulation resistance >2 G (typically)

Install Type
Soldering type connection

Usage & Applications
Audio signal transmission, musical instruments, professional audio equipment

Insulation
Thermoplastic barrel

Conductor Type
Single core (for plug)

Tensile Strength
High mechanical strength

Cable Type
Suitable for shielded and unshielded audio cables

Weight
Approx. 12 grams

Locking Type
Push-in with friction lock

Core Number
3-pole (TRS)

Features
Robust construction, secure locking mechanism, gold-plated contacts for enhanced signal transmission, high durability

Core Material
Brass, Gold-Plated

Number of Conductor
3 (Stereo TRS: Tip, Ring, Sleeve)

Rated Temperature
-20C ~ +65C

Conductor Shape
Round

Product Type
TRS Audio Connector Plug

Length
Standard plug length, approximately 6.5 cm

Voltage
50V (max)

Insulation Material
Thermoplastic

Application
Professional audio, musical instruments, studio equipment, PA systems

Conductor Material
Brass, Gold-Plated

Jacket Material
Molded thermoplastic

Storage Temperature
-40C ~ +85C

Connector Color
Gold tip, black body

Shield Material
N/A (applies to cables, not connector)

Jacket Color
Black

Dimension (L*W*H)
65mm x 13mm x 13mm (Approx)

Material
Thermoplastic, Brass (gold plated contacts)

Color
Black and Gold

Size
1/4 inch (6.35 mm) TRS

Maximum Current
10A

Contact Resistance
<6 m

Contact Plating
24k Gold-plated contacts for corrosion resistance and optimal signal transfer

Contact Configuration
3-pole (Tip/Ring/Sleeve) stereo connector

Insertion Cycles
>1000 mating cycles

Environmental Compliance
RoHS compliant

Mounting Style
Cable mount

Connector Type
6.35mm (1/4 inch) TRS male plug

Compatibility
Fits standard 6.35mm (1/4 inch) stereo and mono sockets

About Neutrik Audio Connector

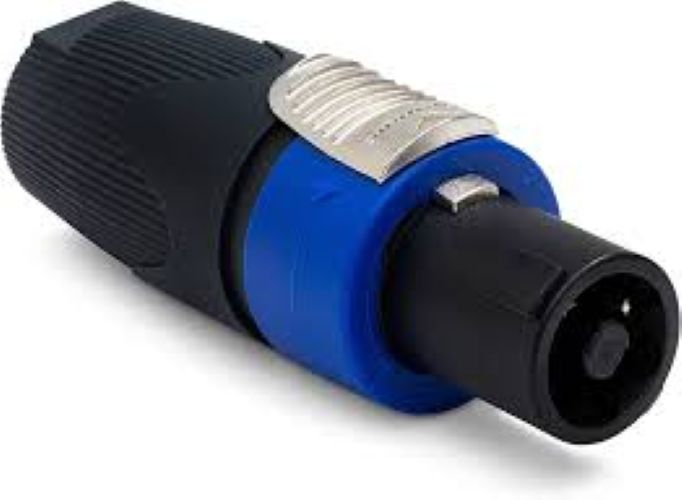

The industry-standard for loudspeaker connections
4 pole cable connector, chuck type strain relief, dark grey bushing
Current rating 40 A rms continuous
Easy and extremely precise locking system "Quick Lock"
High impact materials - long-lasting and reliable

High-Quality Gold-Plated Contacts

Engineered with 24k gold-plated contacts, this Neutrik connector offers excellent resistance to corrosion and exceptional signal clarity. The precision plating minimizes contact resistance (<6 m) and provides superb conductivity, ensuring your audio transmissions remain clear and free from signal loss over time.

Durable Design for Demanding Applications

Constructed from thermoplastic and brass, the connector delivers high mechanical strength and longevity-rated for over 1000 mating cycles. Its friction lock mechanism and robust molding make it ideal for professional musicians, studio technicians, and audio equipment installers who require reliability in every connection.

Universal Compatibility & Ease of Use

Designed to fit standard 6.35mm (1/4 inch) stereo and mono sockets, the plug works with a variety of audio devices, from studio gear to amplifiers. Installation is user-friendly, featuring a cable-mount style for both shielded and unshielded cables, and supports straightforward soldering for secure and stable connections.

FAQ's of Neutrik Audio Connector:

Q: How do I install the Neutrik 6.35mm audio connector to my cables?

A: This connector features a cable-mount design and is compatible with solder-type installation. Simply strip the audio cable, solder each conductor (tip, ring, sleeve) to the corresponding contacts, and securely fit the thermoplastic housing for durable assembly.

Q: What makes the gold-plated contacts beneficial in professional audio applications?

A: 24k gold-plated contacts offer superior corrosion resistance and minimize contact resistance, ensuring consistent, high-quality signal transmission. This results in clearer audio with reduced risk of degradation over time, which is particularly valuable for studio and live performance environments.

Q: What audio devices and setups are compatible with this connector?

A: The Neutrik connector is suitable for all standard 6.35mm (1/4 inch) stereo and mono sockets, making it ideal for musical instruments, professional audio or studio equipment, PA systems, and other applications requiring reliable audio connections.

Q: Where can this connector be used effectively?

A: This connector can be deployed in recording studios, live performance venues, broadcast setups, PA systems, and home audio configurations, wherever robust and dependable audio signal transmission is needed.

Q: What is the lifespan and durability of the Neutrik connector?

A: Designed for high durability, the connector supports over 1000 mating cycles and operates reliably between -20C and +65C. Its brass and thermoplastic construction enhance mechanical strength and environmental resilience.

Q: Does this connector comply with safety and environmental standards?

A: Yes, the Neutrik audio connector is RoHS compliant, signifying adherence to stringent environmental and safety standards, making it suitable for international professional audio markets.

Q: How does the locking mechanism enhance performance?

A: The push-in friction lock ensures a secure and stable connection during use, minimizing the risk of accidental unplugging or signal interruptions, which is important for stage setups and mobile audio use.
