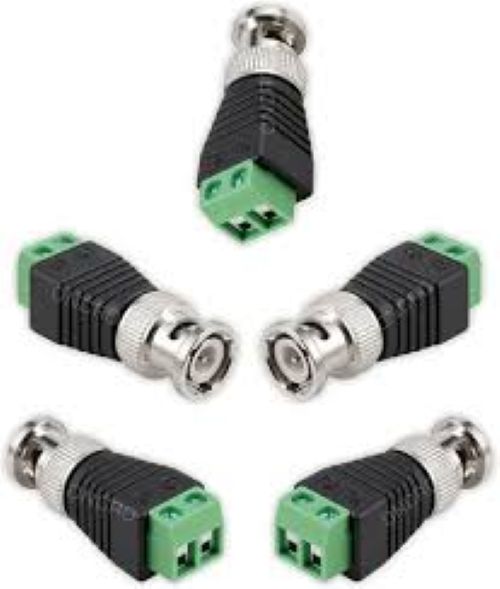

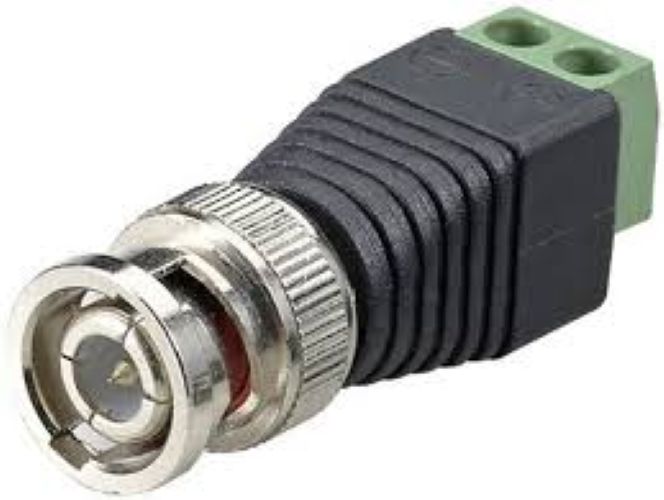

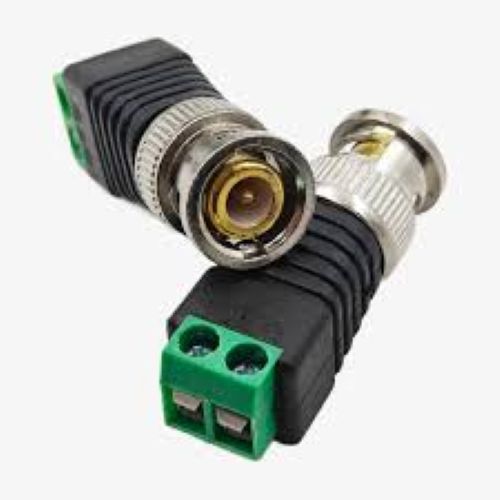

Cctv Bnc Connector

Name: Cctv Bnc Connector
Brand: CHERRY CONNECTRONICS
Price: 70.0 INR
Availability: InStock

Price 70.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cctv Bnc Connector Specification

Core Number
1

Conductor Type
Single core

Operating Temperature
-20C to 70C

Rated Temperature
-20C to 70C

Tensile Strength
High (suitable for regular CCTV handling)

Conductor Shape
Round

Usage & Applications
CCTV camera connection, DVR, VCR, Video transmission systems

Features
High-quality signal transmission, corrosion-resistant, easy to install, secure locking

Impedance
75 Ohms

Dielectiric Strength
>1000V RMS

Locking Type
Bayonet Lock

Cable Type
Coaxial

Install Type
Twist-on/Crimp-on/Solder type

Diameter
Approx. 13.5mm

Number of Conductor
1

Core Material
Copper

Weight
Approx. 10g

Insulation
PVC

Product Type
BNC Connector

Length
Universal (Depends on cable used)

Voltage
Up to 500V

Insulation Material
PVC

Application
CCTV camera connections, video transmission, security systems

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-25C to 85C

Connector Color
Silver

Shield Material
Nickel-plated Brass

Dimension (L*W*H)
Approx. 4.5 cm x 1.35 cm x 1.35 cm

Color
Silver

Material
Nickel-plated Brass and ABS Plastic

Size
Standard BNC size

Mounting Type
Cable Mount

Resistance
5 m (Center Contact)

RoHS Compliance
Yes

Durability
>500 mating cycles

Contact Material
Brass with Gold Plating

Contact Plating
Nickel

Frequency Range
Up to 4 GHz

Flame Retardant
Yes

Waterproof Rating
IP20

Return Loss
18 dB

Connector Gender
Male

About Cctv Bnc Connector

An N connector is a weatherproof, medium-sized RF coaxial connector designed for high-frequency applications in telecommunications, broadcasting, and microwave systems. It is known for its durability, secure threaded coupling, and excellent electrical performance up to 11 GHz or higher.

Features of N connectors

Weatherproof construction: Designed with gaskets and seals to protect against moisture, dust, and other environmental factors, making them suitable for outdoor installations like antenna systems.
High-frequency support: Standard N connectors handle frequencies up to 11 GHz, while precision and enhanced versions can go up to 18 GHz or more.
High power handling: N connectors can handle significantly higher power levels than smaller connectors like SMA, making them ideal for high-power radio and RF systems.
Threaded coupling: The secure, threaded connection resists vibration and ensures a stable, long-lasting physical and electrical connection.
Impedance options: Available in 50 Ohm and 75 Ohm versions, which are not cross-compatible due to differences in the center pin diameter. 50 Ohm is standard for most wireless applications, while 75 Ohm is used primarily for cable TV.

Reliable and Durable Construction

Built with nickel-plated brass and gold-plated contacts, this BNC connector delivers excellent signal transmission and corrosion resistance. Its high tensile strength and robustness make it suitable for frequent handling in security setups, ensuring operational reliability and an extended lifespan exceeding 500 mating cycles.

Versatile Applications and Mounting

Perfectly suited for CCTV camera connections, DVRs, VCRs, and a wide range of video transmission systems, this connector supports twist-on, crimp-on, or solder installation methods. Its universal length is determined by the cable used, offering flexibility in different security installations and maintenance processes.

Superior Performance and Safety

Supporting frequencies up to 4 GHz and rated for up to 500V, this connector meets stringent standards with a 75 Ohm impedance and excellent dielectric strength. It is flame retardant, RoHS compliant, and offers excellent insulation, ensuring both user safety and system integrity under demanding conditions.

FAQ's of Cctv Bnc Connector:

Q: How do I install this CCTV BNC connector on my coaxial cable?

A: You can install this connector using twist-on, crimp-on, or soldering techniques, depending on your preference or the installation requirement. The cable mount design provides flexibility, and the secure bayonet lock ensures a firm connection to your CCTV equipment.

Q: What are the main benefits of using this BNC connector for video transmission systems?

A: This BNC connector provides high-quality signal transmission, is corrosion-resistant, and offers a secure, easy-to-install connection. Its durability, with over 500 mating cycles, and robust construction guarantee long-term reliability and minimal signal loss in demanding environments.

Q: When should I consider using this specific male BNC connector?

A: Use this connector when setting up new CCTV camera systems, performing maintenance or upgrades, or whenever a reliable and secure video connection is required for DVR, VCR, or transmission systems operating up to 4 GHz.

Q: Where can this BNC connector be applied in security systems?

A: It is suitable for connecting CCTV cameras, DVRs, video monitors, and all standard coaxial cable-based video transmission components used in security and surveillance networks.

Q: What process ensures the connector remains corrosion-resistant and durable?

A: The use of nickel-plated brass for the body and gold plating for the contact maintains high resistance to corrosion, while the PVC insulation and IP20 rating safeguard against dust and minor environmental exposure.

Q: How does the connector's design contribute to safety in use?

A: It is flame retardant, RoHS compliant, and rated for voltages up to 500V, ensuring safe operation under typical security system conditions. The robust dielectric strength and reliable insulation further protect during extended use.
