Most Popular Product

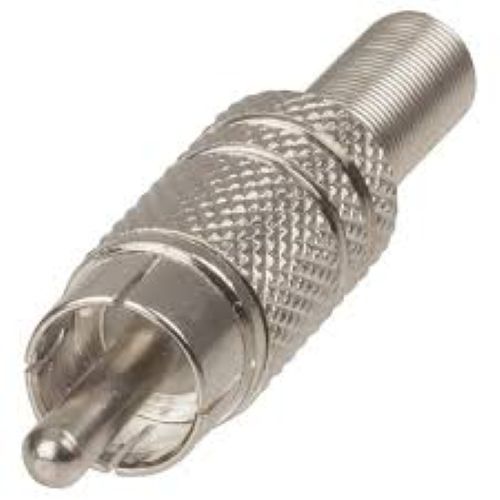

Send InquiryRca Metal Plug
Price 90.0 INR/ Piece
MOQ : 1 Piece
Rca Metal Plug Specification
- IP Rating
- Not Rated
- Surface Finish
- Nickel Plated
- Operating Temperature
- -20C to +70C
- Overheating Protection
- NO
- Mounting Type
- Cable Mount
- Shape
- Cylindrical
- Connector Type
- RCA Male Plug
- Insulation Material
- Plastic (Internal)
- Humidity %
- Up to 85% RH
- Feature
- Rugged Metal Shell, Corrosion Resistant
- Product Type
- RCA Metal Plug
- Application
- Audio/Video Signal Transmission
- Protection Level
- None (Indoor Use)
- Frequency (MHz)
- DC to 100 MHz
- Rated Voltage
- Up to 24 V
- Output Type
- Analog Audio/Video Signal
- Color
- Silver
- Dimension (L*W*H)
- Approx. 38mm x 10mm x 10mm
- Weight
- Approx. 8-15g
- Input Voltage
- Up to 24 V
- Size
- Standard RCA plug size (~10mm OD)
- Connection Type
- Solder Type
- No Of Poles
- 2 (Mono)
- Material
- Metal (Nickel-plated Brass)
- Grounding
- Single Point Ground
- Mating Cycles
- >5000 cycles
- Contact Resistance
- 30m
- RoHS Compliance
- Yes
- Lead-Free
- Yes
- Insulation Resistance
- >=100M at 500VDC
- Compatible Cable Diameter
- Up to 6mm
- Usage
- Professional Audio, Home Theater Systems, Instrument Cables
Rca Metal Plug About

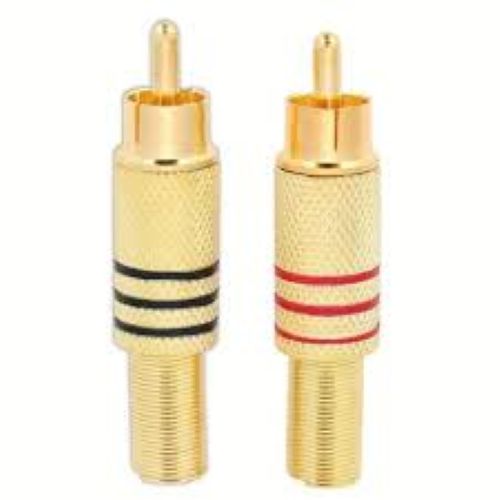

An RCA plug is a common electrical connector used to carry analog audio and video signals. It features a central pin that connects to a solid core conductor and an outer shell that connects to the braided shield of a coaxial-style cable. RCA plugs are typically color-coded to identify the signal they carry, making them simple to connect. Standard RCA audio plugsThese are used to connect audio equipment like CD players, amplifiers, and turntables.- Red (Right Channel) and White or Black (Left Channel): The standard color-coding for stereo audio signals.
- Monoprice Gold Plated RCA Plug (Red & White): Standard RCA connectors with gold plating for corrosion resistance, suitable for soldering.
- MX RCA Male Pin Plug: A connector available in red and white for soldering, used for custom audio cables and speaker wires.
Durable Construction for Professional Applications
The RCA Metal Plug features a sturdy, nickel-plated brass body with a rugged shell, ensuring long-lasting performance and resistance to corrosion. With its standard size and reliable solder-type connection, it's engineered to withstand frequent use, making it an excellent choice for professional AV setups and high-frequency applications.
Wide Compatibility and Easy Installation
Supporting cables up to 6mm in diameter, this plug fits standard RCA jacks and works seamlessly with a variety of audio and video systems. Its solder connection process offers strong electrical performance and durability, suited for both experienced installers and DIY enthusiasts handling custom cabling projects.
FAQ's of Rca Metal Plug:
Q: How is the RCA Metal Plug installed onto a cable?
A: Installation involves soldering the audio or video cable's core and shield wires to the internal contacts of the plug. The solder-type design ensures a secure and reliable connection, ideal for custom assembly and professional use.Q: What are the main benefits of using this RCA Metal Plug?
A: Key benefits include robust build quality, corrosion resistance due to the nickel-plated brass shell, high mating cycle endurance, RoHS compliance, and strong signal transmission with low contact resistance, making it suitable for demanding professional or home audio/video environments.Q: When should I use this RCA plug over other connector types?
A: This RCA plug is most appropriate for analog audio or video signal connections where stable quality, easy handling, and compatibility with standard RCA jacks are needed, such as in home theaters, studio setups, and musical instruments.Q: What is the process for ensuring a secure and low-resistance connection?
A: For optimal results, carefully strip the cable insulation, tin the conductor ends, insert them into the plug, and solder securely to the contacts. A single-point ground helps prevent interference and keeps signal quality high.Q: Where can the RCA Metal Plug be used and what environments is it suited for?
A: Designed for indoor environments, it can operate in temperatures from -20C to +70C and up to 85% relative humidity, making it suitable for studios, homes, and other controlled-use locations.Q: What usage scenarios is the RCA Metal Plug intended for?
A: It's ideal for wiring custom instrument cables, DIY home theater interconnects, and professional patch panels requiring high reliability and frequent mating cycles.
