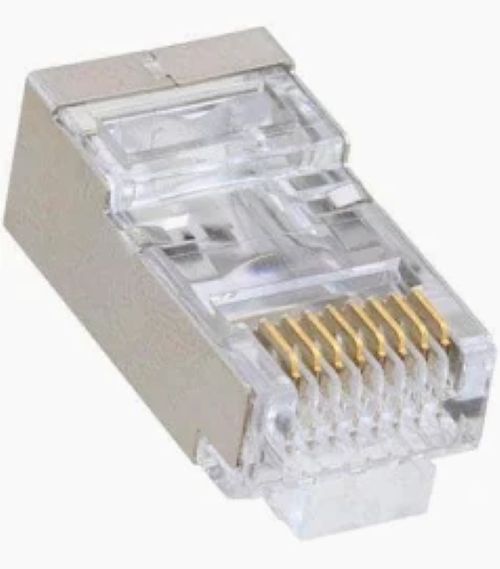

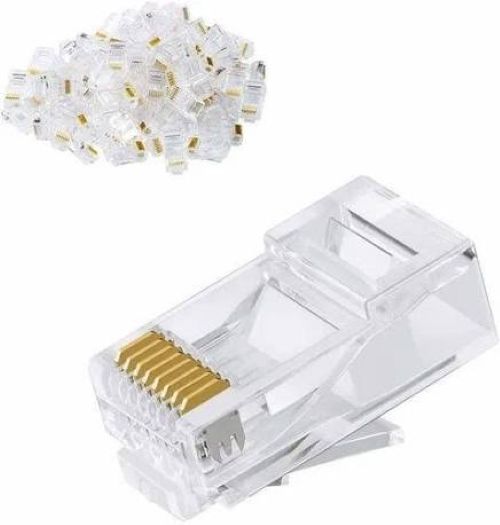

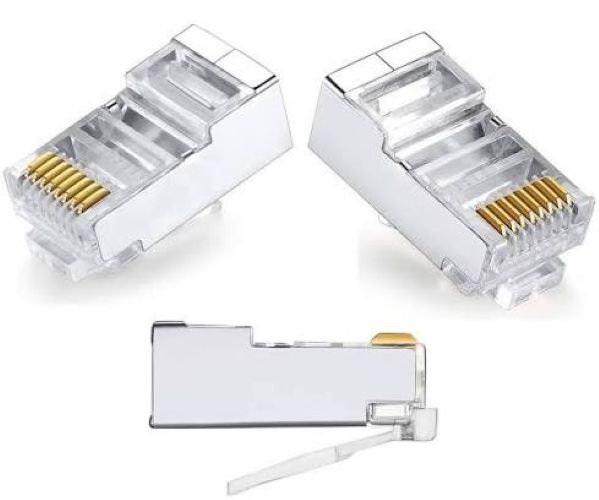

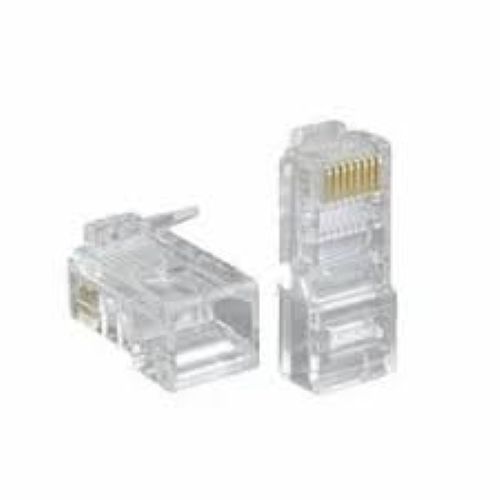

Name: Cat5e D Link RI 45 Connector , Shielded
Brand: CHERRY CONNECTRONICS
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cat5e D Link RI 45 Connector , Shielded Specification

Tensile Strength
NA (dependent on cable used)

Dielectiric Strength
>1000V AC, 60Hz, 1min

Features
Shielded, high transmission performance, reduces electromagnetic interference (EMI), durable design, easy termination

Diameter
Suitable for up to 24 AWG cables

Usage & Applications
Ethernet networks, LAN, data centers, patch cable assembly

Cable Type
Cat5e UTP/FTP/STP cable

Number of Conductor
Accommodates 8 conductors (8P8C)

Conductor Type
Solid or Stranded

Install Type
Manual crimping

Insulation
PC insulation in contact areas

Weight
Approx. 3g

Impedance
100 Ohms (when paired with Cat5e cable)

Rated Temperature
-40C to +70C

Operating Temperature
-40C to +70C

Conductor Shape
N/A (connector only, square entrance for flat or round cable)

Locking Type
Standard RJ45 snap-in lock

Product Type
Cat5e RJ45 Shielded Connector

Length
Standard connector; length typically 21 mm

Voltage
Rated up to 125V

Insulation Material
Polycarbonate (PC)

Application
Data networking, Ethernet cabling, network installations, patch panels

Conductor Material
Compatible with copper cables

Jacket Material
N/A (connector only, no cable)

Storage Temperature
-40C to +70C

Connector Color
Transparent with metallic shield

Shield Material
Metal (nickel-plated brass)

Dimension (L*W*H)
Approx. 21mm x 12mm x 8mm

Color
Transparent/silver

Material
Polycarbonate with nickel-plated brass shield

Size
Standard RJ45 size

Insertion Cycles
750 mating/unmating cycles

Contact Plating
Gold plated contacts (typically 50'' gold over nickel)

Pack Size
Commonly available in bag of 100 pieces

RoHS Compliance
Yes

Insulation Resistance
500M

Compliance
TIA/EIA-568-C.2 and ISO/IEC 11801 Cat5e standards

Fire Rating
UL 94V-0 rated polycarbonate body

Contact Resistance
20m

Compatibility
Works with solid and stranded Cat5e cables

About Cat5e D Link RI 45 Connector , Shielded

Seize the lowest price on the magnificent Cat5e D Link RI 45 Connector - an offer ending soon! Renowned for reliability, this top-tier shielded connector boasts gold-plated contacts-typically 50 micro-inches of gold over nickel-ensuring superior signal integrity and durability. Engineered with a polycarbonate body rated UL 94V-0, it supports 750 insertion cycles while meeting TIA/EIA-568-C.2 and ISO/IEC 11801 standards. Perfect for solid and stranded Cat5e cables, the connector also complies with RoHS and offers 500M insulation resistance. Available in bags of 100, it's trusted by dealers and experts worldwide.

Premium Construction & Versatile Application

Crafted using a UL 94V-0 rated polycarbonate body, the Cat5e D Link RI 45 Connector, Shielded, provides exceptional fire resistance and longevity. Its gold-plated contacts minimize signal loss and corrosion, making it ideal for both solid and stranded Cat5e cables. The connector is easily crimped for seamless connectivity in networking, data centers, or home systems, ensuring reliable media transmission with every use.

Streamlined Payment, Samples, and Order Processing

Payment terms for the Cat5e D Link RI 45 Connector are flexible and competitive, often finalized upon receiving a formal quotation and purchase order. Sample units may be requested to help assess compatibility and quality before full-scale procurement. Our sample policy is designed to support informed decisions, with quick processing to accelerate your order placement and delivery, ensuring a smooth, hassle-free purchase experience for all clients.

FAQ's of Cat5e D Link RI 45 Connector , Shielded:

Q: How is the Cat5e D Link RI 45 Connector, Shielded installed?

A: The connector can be easily installed using a standard crimping tool, making it suitable for both solid and stranded Cat5e cables. It securely attaches to the cable ends for robust and reliable connections.

Q: What benefits does the gold-plated contact provide?

A: Gold-plated contacts deliver excellent conductivity and minimize signal loss, ensuring reliable, long-lasting performance with reduced risk of corrosion.

Q: When should I request a sample of the Cat5e connector?

A: Samples are recommended before bulk purchases, particularly if you need to verify product compatibility and quality for your application. You can request a sample as part of our customer-friendly sample policy.

Q: Where can these connectors be used?

A: They are ideal for structured cabling in offices, data centers, and residential network installations where shielded, high-performance connections are essential.

Q: What is the process for placing an order for this product?

A: Begin by requesting a quotation. Upon approval, submit your purchase order. Orders are processed quickly to ensure prompt shipment, and samples can be provided prior to bulk order confirmation.
