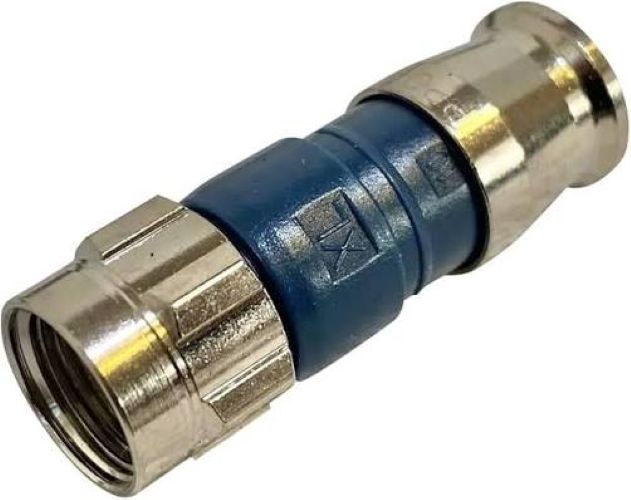

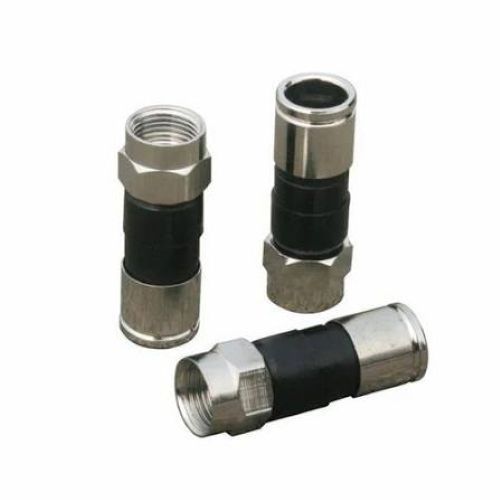

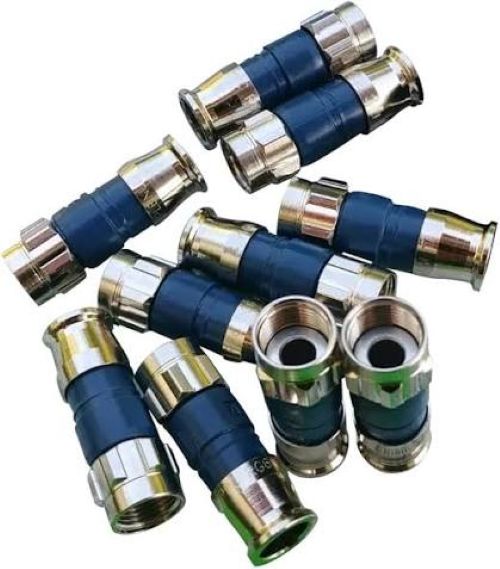

RG 6 PPC F Connector

Name: RG 6 PPC F Connector
Brand: CHERRY CONNECTRONICS
Price: 16.0 INR
Availability: InStock

Price 16.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

RG 6 PPC F Connector Specification

Insulation
Integrated plastic insulation sleeve

Cable Type
Coaxial (RG-6)

Dielectiric Strength
Suitable for standard RF applications

Number of Conductor
One (for single RG-6 cable)

Conductor Type
Not Applicable (Connector only)

Tensile Strength
High, supports secure cable locking

Impedance
75 Ohms

Weight
Approx. 12 grams

Usage & Applications
Used for digital cable TV, satellite TV, internet, CCTV, and broadband cable termination

Diameter
Approx. 1.2cm

Rated Temperature
-40C to +60C (typical operating range)

Locking Type
Threaded, compression fit

Operating Temperature
-40C to +60C

Conductor Shape
Not Applicable (Connector only)

Features
Compression type, weatherproof, corrosion-resistant, high RF shielding, easy installation, stable signal transmission

Install Type
Compression-fit

Product Type
RG-6 PPC F Connector (Compression Type)

Length
Standard for RG-6 cable applications

Voltage
Suitable for RF signals (up to 90V DC typical for cable applications)

Insulation Material
Plastic/Polymer

Application
Coaxial cable connections for TV, satellite, broadband, CCTV, and CATV installations

Conductor Material
Not Applicable (Connector only)

Jacket Material
Not Applicable (Used with RG-6 Cable)

Storage Temperature
-40C to +70C

Connector Color
Blue/Metallic Silver

Shield Material
Nickel-plated brass

Jacket Color
Not Applicable (Connector only)

Dimension (L*W*H)
Approx. 3.5cm x 1.2cm x 1.2cm

Material
Nickel-plated brass, polymer/plastic body

Color
Blue and metallic silver

Size
Standard RG-6 connector size

Sealing Method
Dual O-ring compression

Insertion Loss
Low (<0.1 dB @ 1GHz)

Cable Retention
Strong compression grip to prevent signal loss

Typical Use Life
Over 500 mating cycles

Frequency Range
Up to 3 GHz (suitable for most cable and satellite applications)

Connector type
F-Type Male (Compression)

Corrosion Resistant
Yes, nickel-plated surface

Brand Compatibility
Compatible with RG-6/U coaxial cables

Connector Gender
Male

Waterproof Rating
Weather sealed for outdoor use

Finish
Nickel Plating

RoHS Compliance
Yes

Center Pin Material
Brass, gold-plated/standard

RG 6 PPC F Connector About

RG 6 PPC F connector for cable tv compression type . RG 6 PPC F Connector (primarily manufactured under the Belden PPC EX series) is a premium, professional-grade 75 Ohm coaxial compression connector. It is widely considered an industry standard by telecom and satellite providers for terminating RG6 coaxial drop cables

Engineered for Durability and Performance

Constructed from robust nickel-plated brass and featuring a corrosion-resistant finish, this RG 6 PPC F Connector guarantees longevity and stable operation, even in outdoor environments. Its dual O-ring compression seals and weatherproof design make it ideal for external cable runs, ensuring the integrity of your connections regardless of weather conditions.

Seamless Installation and Superb Signal Quality

With its precision compression-fit mechanism, this connector enables effortless attachment to RG-6/U coaxial cables, providing a secure, threaded, and reliable locking system. The integrated gold-plated (or standard) brass center pin, along with high RF shielding, minimizes insertion loss to less than 0.1 dB, ensuring optimal signal clarity and minimal interference across cable, satellite, and security applications.

FAQ's of RG 6 PPC F Connector:

Q: How do I install the RG 6 PPC F Connector onto an RG-6 cable?

A: Simply strip your RG-6 cable to the recommended length, insert the cable end into the connector, and use an appropriate compression tool to secure the fit. The compression-fit mechanism and dual O-ring sealing provide a weather-tight, long-lasting connection with minimal effort.

Q: What applications is this F-Type connector suitable for?

A: This connector is ideal for digital cable TV, satellite receivers, broadband internet, CATV, and CCTV installations-any application requiring robust, reliable RG-6 coaxial cable terminations.

Q: When should I choose this connector over standard twist-on F connectors?

A: Opt for this compression-type connector when you require improved weather resistance, stronger cable retention, and lower insertion loss. Its design is particularly suitable for outdoor, high-frequency, or professional-grade installations.

Q: Where can the RG 6 PPC F Connector be installed?

A: It can be utilized in both indoor and outdoor settings, including residential, commercial, and industrial environments. Its weather-sealed design supports use in harsher conditions and external cable runs.

Q: What are the benefits of the nickel plating and gold-plated center pin feature?

A: The nickel plating and optional gold-plated brass center pin guard against corrosion and oxidation, resulting in enhanced electrical conductivity and long-lasting, stable signal transmission.

Q: Is the connector compatible with all RG-6 cables and devices?

A: Yes, it is designed to fit standard RG-6/U coaxial cables and is compatible with most devices requiring a 75 Ohm F-Type male connection, such as set-top boxes, TVs, and satellite receivers.

Q: How does this connector ensure minimal signal loss and interference?

A: With high RF shielding and a tight compression-sealed fit, this connector offers low insertion loss (less than 0.1dB at 1GHz), maintaining strong signal strength and reducing the likelihood of interference or degradation.
