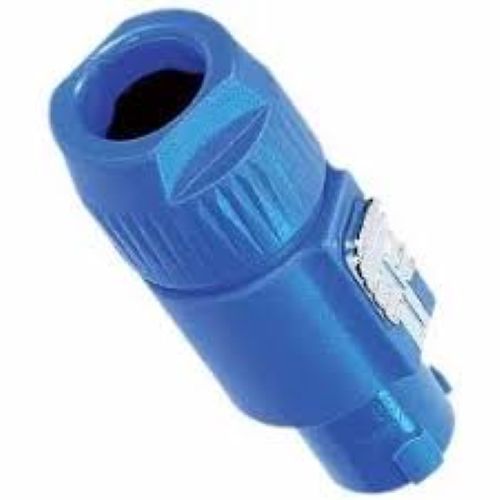

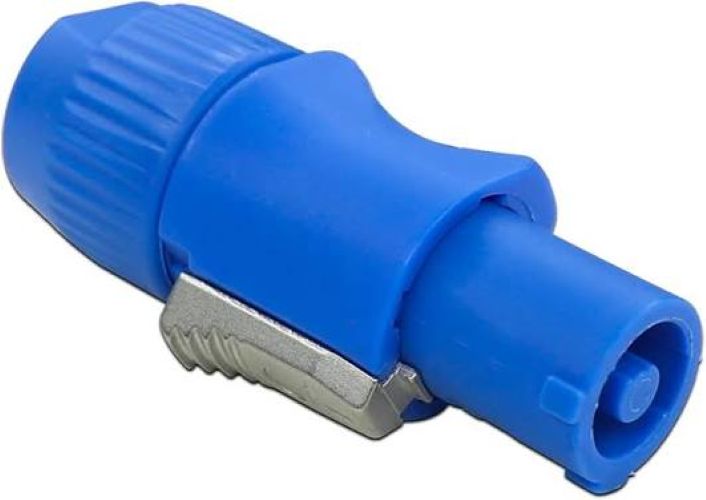

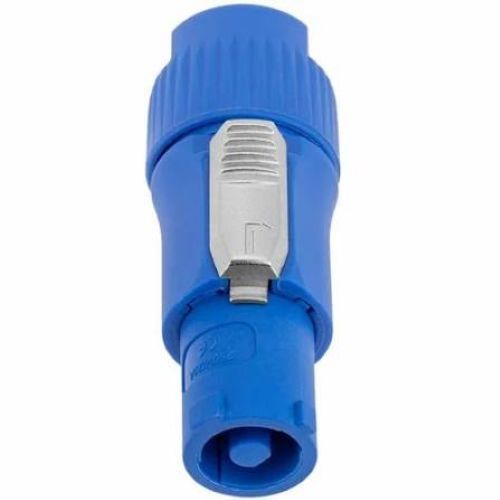

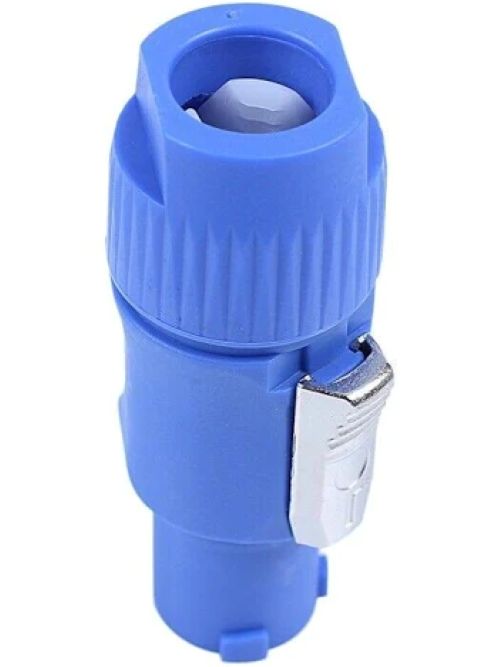

3-Pole Powercon Connector

Name: 3-Pole Powercon Connector
Brand: CHERRY CONNECTRONICS
Price: 90.0 INR
Availability: InStock

Price 90.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3-Pole Powercon Connector Specification

Locking Type
Twist-Lock mechanism

Core Number
3

Conductor Shape
Round

Diameter
Approx. 25 mm

Features
High current capacity, Quick locking system, Durable design, Easy connection and disconnection, Reliable performance

Operating Temperature
-30C to +80C

Rated Temperature
-30C to +80C

Cable Type
Power supply cable

Insulation
Polyamide PA6

Tensile Strength
High, suited for stage and touring reliability

Install Type
Panel mount or cable mount

Dielectiric Strength
2.5 kV AC (1 min)

Usage & Applications
Professional audio, stage lighting, power distribution

Number of Conductor
3

Conductor Type
Stranded

Core Material
Copper

Weight
Approx. 45 g

Product Type
3-Pole Locking Power Connector

Length
Customizable as per application

Voltage
250 V AC

Insulation Material
Polyamide PA6

Application
Audio, video, lighting power interconnects

Conductor Material
Copper

Jacket Material
Polyvinyl Chloride (PVC)

Storage Temperature
-40C to +85C

Connector Color
Blue/Gray

Shield Material
None (unshielded)

Jacket Color
Black

Dimension (L*W*H)
Approx. 75 x 25 x 25 mm

Color
Blue/Gray Body, Black Cable Jacket

Material
High-impact Thermoplastic

Size
Standard (as per model)

Contact Resistance
3 m

Gender
Male/Female available

Flame Retardance
UL94-V0 rated housing

Wire Gauge Compatibility
Up to 12 AWG

Connector Standard
Compatible with Neutrik NAC3MP/FC series

Ingress Protection
IP20

Withstand Voltage
4 kV AC (peak, 1 min)

Mounting Style
Cable and chassis mount options available

Contact Plating
Silver plated contacts

Mating Cycles
>1000 insertions/extractions

Current Rating
20A continuous

About 3-Pole Powercon Connector

Name: 3-Pole Powercon Connector
Material:pure copper + ABS materials
Color: Blue, Orange And White Available
Rated current: 20A
Rated voltage: 250V
Due to the difference between different monitors,the picture may not reflect the actual color of the item
Please allow 0.1-1cm differs due to manual measurement,thanks

Exceptional Electrical Conductivity

This connector ensures minimal contact resistance of 3 milliohms, thanks to its silver-plated contacts. Designed to handle up to 20A continuous current, it delivers reliable and stable power transfer for professional applications such as stage lighting, AV equipment, and industrial machinery.

Versatile Installation and Compatibility

Engineered to be compatible with Neutrik NAC3MP/FC series, the 3-Pole Powercon Connector is available in both cable and chassis mount options. Accommodating up to 12 AWG wires and offering both male and female configurations, it provides flexibility for a variety of installation needs.

Safety and Durability First

With a UL94-V0 flame retardant housing and IP20 ingress protection, this connector prioritizes operator and equipment safety. Its robust construction allows for over 1000 mating cycles, providing sustained performance and reduced maintenance over time.

FAQ's of 3-Pole Powercon Connector:

Q: How do I install the 3-Pole Powercon Connector for cable and chassis mounting?

A: The 3-Pole Powercon Connector is designed for both cable and chassis mounting. Simply select the appropriate version (male or female) and follow the wiring instructions using wires up to 12 AWG. Secure the connector per the installation guidelines to ensure safe operation.

Q: What are the key benefits of using this connector for power distribution?

A: This connector offers excellent conductivity due to silver-plated contacts, reliable 20A continuous current handling, UL94-V0 flame retardant housing, and over 1000 mating cycles. These features contribute to consistent performance, safety, and long-term cost savings.

Q: Where can this Powercon Connector be used?

A: It is ideally suited for professional audio/visual, stage lighting, industrial machinery, and other environments where dependable power connections are required. The IP20 rating makes it suitable for indoor use where moisture and dust exposure are minimal.

Q: What is the compatibility standard for this connector?

A: This model is built to be compatible with the Neutrik NAC3MP/FC series, ensuring interchangeability for new or replacement installations involving standardized Powercon connections.

Q: When should I consider replacing the connector?

A: Replacement is recommended after exceeding 1000 mating cycles or if there is visible wear or compromised connection performance to maintain reliable power transfer and safety.

Q: What level of safety certification does the housing meet?

A: The housing meets UL94-V0 flame retardance and IP20 ingress protection, providing both fire resistance and basic protection against solid foreign objects for safe indoor use.

Q: How does the connector enhance operational reliability in demanding environments?

A: The combination of silver-plated contacts, low contact resistance, robust mating cycles, and high withstand voltage ensures stable connections, lower maintenance needs, and dependable safety in frequent-use situations.
