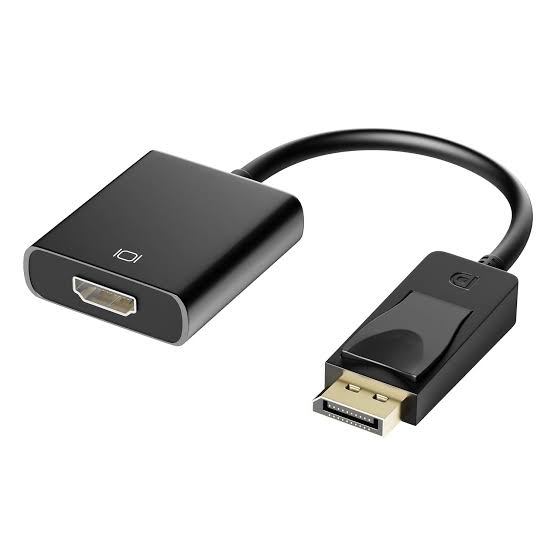

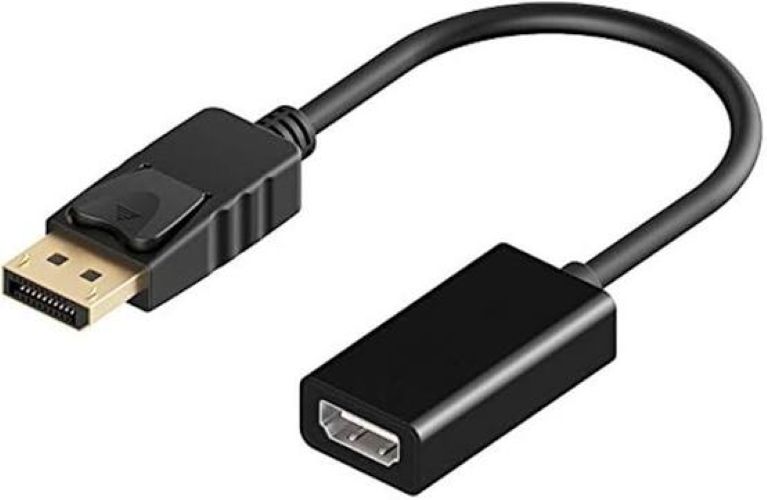

Send InquiryDisplay Port To HDMI Cable
Price 200.0 INR/ Unit
MOQ : 1 Unit
Display Port To HDMI Cable Specification
- Locking Type
- DisplayPort Latch Lock
- Rated Temperature
- -20C to 60C
- Weight
- Approx. 30g
- Install Type
- Direct insert and use
- Usage & Applications
- Desktop Computers, Laptops, Projectors, Monitors, TVs
- Operating Temperature
- 0C to 50C
- Dielectiric Strength
- 500V AC/min
- Conductor Shape
- Round
- Core Number
- 4 pairs
- Conductor Type
- Stranded
- Core Material
- Copper
- Diameter
- Approx. 5mm (cable)
- Features
- Plug & Play, No Driver required, Supports Video and Audio output
- Tensile Strength
- Normal for patch cables (Not designed for heavy pulls)
- Insulation
- PVC insulated
- Number of Conductor
- Multi-core
- Impedance
- 100 Ohms (Differential)
- Cable Type
- Adapter Cable
- Product Type
- Display Port to HDMI Cable Adapter
- Length
- Approximately 15-20 cm (adapter length)
- Voltage
- 5V (Typical for signal transmission)
- Insulation Material
- PVC
- Application
- Connecting DisplayPort source to HDMI display/projector
- Conductor Material
- Copper
- Jacket Material
- PVC
- Storage Temperature
- -10C to 80C
- Connector Color
- Gold-plated (DisplayPort), Silver-plated (HDMI)
- Shield Material
- Aluminum/Mylar Shield
- Jacket Color
- Black
- Dimension (L*W*H)
- Cable approx. 15-20 cm; Adapter head 4cm x 2cm x 1.5cm
- Material
- PVC, Copper, ABS housing
- Color
- Black
- Size
- Compact, Lightweight
- Transmission Speed
- Up to 10.8Gbps
- Plug Material
- Gold-plated connectors for corrosion resistance
- Directionality
- Unidirectional (DisplayPort to HDMI Only)
- RoHS Compliant
- Yes
- Connector 1
- DisplayPort Male
- Connector 2
- HDMI Female
- Packaging
- Polybag or blister retail packaging
- Maximum Supported Resolution
- 1920x1080p @ 60Hz (Full HD)
- Compliance Standards
- DisplayPort v1.1a, HDMI v1.3
- Audio Support
- Yes (up to 7.1 Channel)
- Hot Plug Support
- Yes
- HDCP Support
- Yes
About Display Port To HDMI Cable
Display port to Hdmi Cable Converts the Display port to hdmi output.A DisplayPort to HDMI cable combines a male DisplayPort (DP) plug on one end and a male HDMI plug on the other into a single, seamless wire. This eliminates the need for a separate adapter block when connecting a computer directly to a monitor or TV.Seamless Connectivity for Your AV Setup
With a unidirectional DisplayPort to HDMI design, this adapter cable connects PCs, laptops, or workstations sporting a DisplayPort output to HDTVs, monitors, or projectors with HDMI input. Its Full HD resolution and audio support allow for both video and immersive sound transfer, making it suitable for work presentations, home theaters, or gaming environments.
Robust Construction, Universal Compatibility
Built with corrosion-resistant gold-plated connectors and internal copper wiring, this adapter provides stable signal transmission up to 10.8Gbps. Its compact, lightweight construction and compatibility with DisplayPort v1.1a and HDMI v1.3 standards ensure easy use with various devices. The PVC jacket and aluminum/mylar shield guard against distortion and wear.
FAQ's of Display Port To HDMI Cable:
Q: How do I use the DisplayPort to HDMI cable with my devices?
A: To connect, simply insert the DisplayPort male end into your computer or laptop's DisplayPort output and plug your HDMI cable into the adapter's HDMI female connector, then into your display or projector. This plug & play device requires no drivers-just connect and start using.Q: What video and audio quality can I expect from this adapter?
A: The adapter delivers crisp Full HD video up to 1920x1080p @ 60Hz and transmits audio support for up to 7.1 channels, ensuring high-quality visuals and immersive sound for both work and entertainment.Q: Can I use this adapter to connect an HDMI source to a DisplayPort monitor?
A: No, this adapter is unidirectional and works only from DisplayPort source (such as a PC or laptop) to an HDMI display. It does not support the reverse direction (HDMI to DisplayPort).Q: Where is this DisplayPort to HDMI cable typically used?
A: It's commonly used for connecting desktop computers, laptops, or workstations to TVs, monitors, or projectors in offices, classrooms, conference rooms, and home theaters-wherever a DisplayPort output device needs to be displayed on an HDMI screen.Q: What are the main benefits of using gold-plated connectors and aluminum/mylar shielding?
A: Gold-plated connectors resist corrosion and enhance signal reliability, while the aluminum/mylar shield minimizes signal loss and interference, ensuring consistent video and audio quality over time.Q: What compliance and safety standards does this adapter meet?
A: This product is compliant with DisplayPort v1.1a, HDMI v1.3, HDCP, and RoHS standards, and features PVC insulation and robust construction for safe, long-lasting use.
