VGA Male Connector

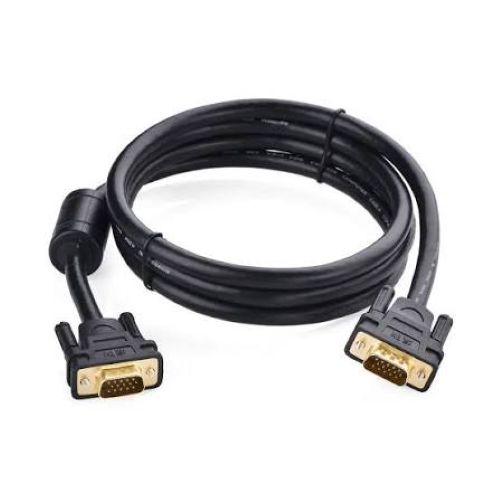

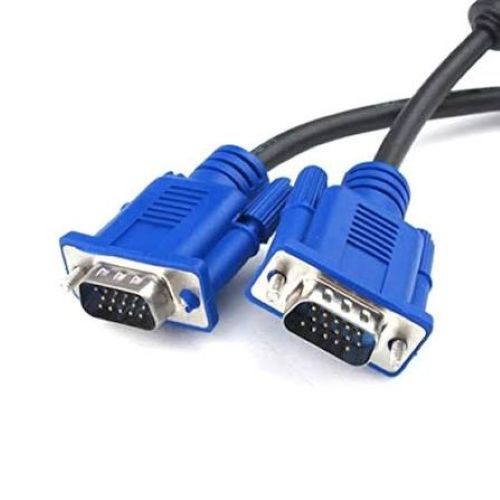

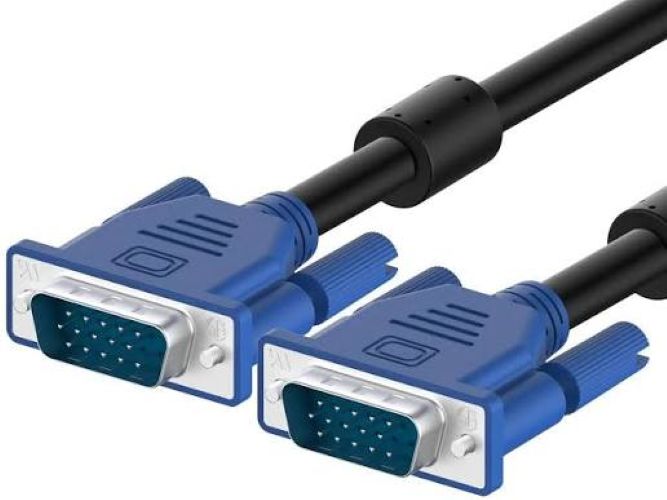

Name: VGA Male Connector
Brand: CHERRY CONNECTRONICS
Price: 10.0 INR
Availability: InStock

Price 10.0 INR/ Unit

Get a Price/Quote

MOQ : 100 Units

VGA Male Connector Specification

Weight
Approx. 10g

Core Number
15

Conductor Shape
Round

Locking Type
Screw Lock

Install Type
Panel Mount, Easy Plug & Play

Features
High Durability, Corrosion Resistant, Easy Installation, Firm Connectivity, Reliable Performance

Conductor Type
Solid or Stranded

Tensile Strength
High, based on design

Rated Temperature
-15C to +70C

Number of Conductor
15

Impedance
75 ohm

Insulation
PVC

Dielectiric Strength
1500V AC for 1 minute

Cable Type
VGA/D-sub 15-pin

Operating Temperature
-15C to +70C

Armored Material
Not Armored

Usage & Applications
PC, Laptop, Monitor, LCD, Projector, KVM Switch, and other multimedia devices

Diameter
Approx. 15mm

Core Material
Copper

Product Type
VGA Male Connector

Length
Standard, customizable as required

Voltage
250V Max

Insulation Material
PVC

Application
Computer Monitor, Projector, Display adapter, Video transmission, Audio Visual Equipment

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-40C to +80C

Connector Color
Blue

Shield Material
Aluminum Foil + Braiding

Jacket Color
Blue

Dimension (L*W*H)
Approx. 38mm x 15mm x 32mm

Color
Blue, Silver (pins & screws)

Material
Plastic, Metal (Shell)

Size
Standard VGA Size (DE-15)

Humidity
85% RH

Mounting Type
Cable Mount / Panel Mount

Mating Cycles
500 Times

Contact Resistance
30m Max

Gender
Male

Housing Material
Thermoplastic

Contact Plating
Gold-plated / Nickel-plated

Insulation Resistance
1000M at 500V DC

Pin Configuration
3 Rows x 5 Pins / 15 Pin Male

Used For
Signal Transmission for RGB, Video, Audio, Synchronization

Flame Retardancy
UL94V-0 Rated

About VGA Male Connector

Important Note- After plug the VGA cable , Please set the screen resolution in display settings for best display quality.
This double-shielded cable is designed to handle analog VGA and extended VGA resolutions, great for connecting high resolution analog displays
Come with durable moulded connectors with thumbscrews for a secure connection

Superior Signal Integrity

Engineered with a gold-plated or nickel-plated contact finish, this VGA Male Connector ensures minimal contact resistance and enhanced signal clarity. Its 15-pin layout supports comprehensive video and audio transmission, making it a reliable choice for professional and industrial use.

Robust Construction and Safety

The connector's thermoplastic housing is UL94V-0 flame retardant rated, offering excellent defense against fire hazards. With a high insulation resistance and durability for up to 500 mating cycles, it is suitable for environments with higher safety demands and frequent use.

Flexible Installation Options

Designed for both cable and panel mounting, the VGA Male Connector offers flexibility in installation for diverse setups. Whether assembling custom cables or integrating into devices, its practical design supports a broad range of applications in signal transmission.

FAQ's of VGA Male Connector:

Q: How do I install the VGA Male Connector for cable or panel mounting?

A: To install the VGA Male Connector, attach it to the corresponding cable using soldering or crimping methods, following the pin layout for proper signal mapping. If panel mounting, secure the connector onto your device panel using the provided mounting holes, ensuring a firm and reliable connection.

Q: What makes this VGA connector suitable for signal transmission in demanding conditions?

A: This connector features gold-plated or nickel-plated contacts for low resistance and thermoplastic housing rated UL94V-0 for flame retardancy. With high insulation resistance and operability in up to 85% RH humidity, it maintains signal integrity even in challenging environments.

Q: When should I choose gold-plated contacts over nickel-plated in a VGA connector?

A: Gold-plated contacts are preferable when maximum corrosion resistance and low electrical resistance are critical, such as in high-quality video or audio installations. Nickel-plated contacts offer good performance in less demanding environments and are a cost-effective alternative.

Q: Where is this VGA Male Connector typically used?

A: The connector is commonly used in computers, monitors, projectors, and other audio-visual equipment for transmitting RGB, video, audio, and synchronization signals. Its robust construction also makes it suitable for industrial signal transmission applications.

Q: What are the benefits of using a UL94V-0 rated housing in VGA connectors?

A: A UL94V-0 rated housing ensures the connector is highly flame retardant, providing additional safety where fire hazards are a concern. This makes it ideal for installations in public facilities, industrial environments, or where safety regulations are stringent.

Q: How many mating cycles can this VGA Male Connector withstand?

A: The connector is designed for up to 500 mating cycles, allowing for repeated connections and disconnections without degradation in performance, which is ideal for testing, maintenance, or setups requiring frequent hardware changes.
