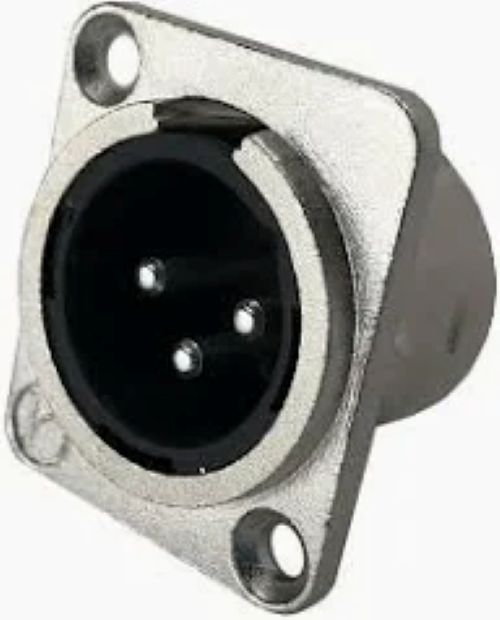

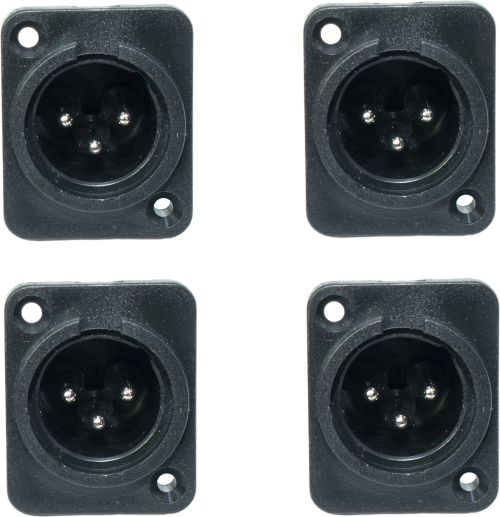

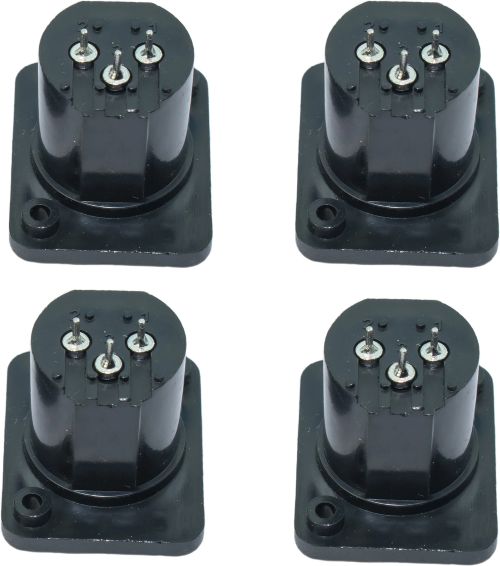

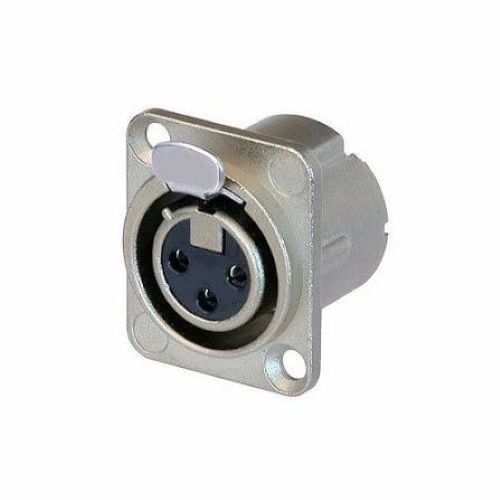

Send InquiryPlate Mount XLR Connector
Price 80.0 INR/ Unit
MOQ : 1 Unit
Plate Mount XLR Connector Specification
- Number of Conductor
- 3 (XLR 3-pin configuration)
- Diameter
- Outer flange: approx. 26 mm
- Install Type
- Panel / Plate mount
- Rated Temperature
- -30C to +80C
- Usage & Applications
- Audio, Broadcasting, Sound systems, Recording studios
- Impedance
- 110 ohms (typical for audio)
- Insulation
- Polymer insulation between contacts
- Weight
- Approx. 25 grams
- Conductor Shape
- Round pin
- Conductor Type
- Solid pin
- Operating Temperature
- -30C to +80C
- Core Number
- 3
- Dielectiric Strength
- 1000V AC (1 Minute)
- Cable Type
- Not Applicable (connector only)
- Features
- Rugged design, Easy panel mounting, Solder terminals, Balanced connection support
- Locking Type
- Latching (spring-latch mechanism)
- Core Material
- Brass (contact pins)
- Product Type
- Panel mount XLR connector (male)
- Voltage
- 250V AC max
- Insulation Material
- Thermoplastic
- Application
- Microphone, Audio equipment, Stage lighting, Professional audio systems
- Conductor Material
- Brass (plated)
- Storage Temperature
- -40C to +85C
- Connector Color
- Black
- Dimension (L*W*H)
- Approx. 31 mm x 26 mm x 30 mm (panel section)
- Color
- Silver/Black
- Material
- Zinc alloy (housing), Thermoplastic (insulator)
- Size
- Standard XLR panel-mount size
- Compliance
- RoHS, CE Certified
- Mounting Hole Spacing
- 23 mm (center to center)
- Contact Resistance
- 5 m
- Panel Thickness Compatibility
- Up to 3 mm
- Number of Pins
- 3 (standard male XLR)
- Mating Cycles
- >1000 insertions
- Insulation Resistance
- >= 1000 M at 500V DC
About Plate Mount XLR Connector
Backed by a team of skilled professionals, we are engaged in offering our clients a wide range of XLR Connector Plate Mount. Safe to use and needs low maintenance, this connector plate mount is precisely manufactured with superior quality raw material in accordance with industry norms. Our connector plate mount is valued among customers for its better quality. Features:Dimensional accuracy Easy usage Long life.Secure Audio Connections with Enduring Performance
Engineered for professional audio and broadcast systems, this panel-mount XLR connector guarantees dependable signal transfer and balanced connections through solid brass pins and secure latching. Its 23 mm mounting hole spacing and rugged construction ensure a seamless fit and long-lasting performance, even with frequent use.
Easy Installation and Versatility
Compatibility with up to 3 mm panel thickness and solder terminals facilitate quick, straightforward wiring for installers, technicians, and manufacturers. Its standard panel-mount size and robust latch mechanism make it perfect for both new installations and replacements in audio, stage, or studio setups.
FAQ's of Plate Mount XLR Connector:
Q: How do I install the Plate Mount XLR Connector on my audio panel?
A: Simply align the mounting holes (23 mm center-to-center) with your panel's pre-drilled holes, insert the connector through the panel, and secure it using screws. Solder your audio wires to the corresponding terminal pins, ensuring a balanced connection for optimal signal integrity.Q: What is the benefit of the spring-latch mechanism on this XLR connector?
A: The spring-latch mechanism ensures a reliable and secure connection by preventing accidental unplugging during performances or operation, maintaining audio continuity and reducing the risk of signal interruption.Q: Which applications are best suited for this plate mount XLR connector?
A: This connector is ideal for use in professional audio equipment, microphones, sound and broadcasting systems, recording studios, stage lighting, and other setups where balanced, secure XLR connections are required.Q: What is the maximum panel thickness the connector supports?
A: The XLR connector is compatible with panel thicknesses up to 3 mm, making it suitable for most standard audio and equipment panels.Q: What makes this XLR connector durable for repeated use?
A: It is built with a rugged zinc alloy housing, thermoplastic insulator, and solid brass contact pins. The design supports over 1,000 insertion and removal cycles, ensuring lasting functionality.Q: Where can I use this connector in my setup?
A: You can install this connector in audio racks, mixing boards, patch panels, wall plates, stage boxes, or any professional audio device requiring a reliable, balanced XLR input or output.Q: Is the Plate Mount XLR Connector compliant with safety and environmental standards?
A: Yes, the connector is both RoHS and CE certified, ensuring it meets industry safety, environmental, and performance requirements for professional installations.
