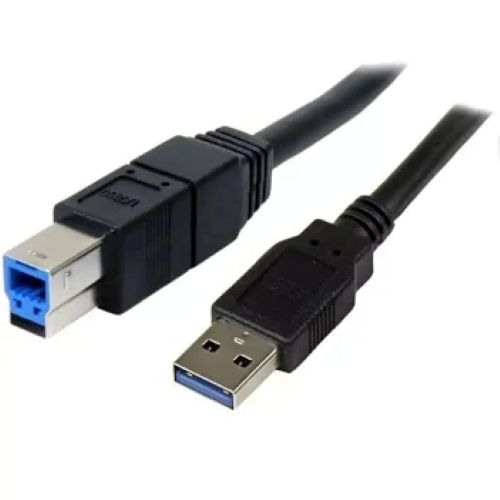

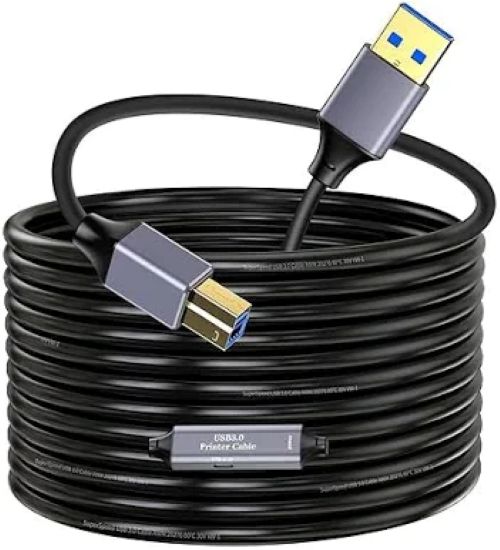

Send InquiryUSB cable active 10 mtr a to b 3 version
Price 2200.0 INR/ Piece
MOQ : 100 Pieces
USB cable active 10 mtr a to b 3 version Specification
- Features
- Active USB repeater integrated, enhanced signal quality, supports high-speed data transfer, backward compatible with USB 2.0/1.1 devices
- Usage & Applications
- Connecting USB 3.0 devices over extended distances, ideal for Printer/Scanner/External Drive
- Conductor Type
- Stranded
- Number of Conductor
- 4 (D+, D-, VBUS, GND)
- Operating Temperature
- 0 to 60C
- Insulation
- PVC
- Tensile Strength
- Standard USB tensile rating
- Core Number
- 4 Core
- Cable Type
- Active USB 3.0 A to B
- Diameter
- Approx. 5-7mm
- Locking Type
- Standard fit, no locking mechanism
- Core Material
- Copper
- Conductor Shape
- Round
- Weight
- Approx. 400-500g
- Armored Material
- Not Armored
- Install Type
- Plug and Play
- Impedance
- 90 Ohm (Differential Pair)
- Rated Temperature
- Up to 60C
- Dielectiric Strength
- Tested up to 300V/min
- Product Type
- USB 3.0 Active Extension Cable (Type A to B)
- Length
- 10 meter
- Voltage
- 5V DC (Standard USB voltage)
- Insulation Material
- PVC Insulation
- Application
- Printers, Scanners, External Hard Drives, USB Devices
- Conductor Material
- Tinned Copper
- Jacket Material
- PVC
- Storage Temperature
- -20C to 70C
- Connector Color
- Blue and Gold-plated
- Shield Material
- Aluminum Foil & Braided Shield
- Jacket Color
- Black
- Dimension (L*W*H)
- 10 meter length, diameter approx 5-7mm
- Material
- Copper core, PVC jacket, Aluminum shielding
- Color
- Black (Cable), Blue (USB 3.0 Connector)
- Size
- 10 meter length
- Cable Flexibility
- Flexible and durable for repeated use
- Repeater Function
- Built-in signal booster to maintain data integrity over long distances
- Connector 2
- USB Type B Male
- Compliance
- RoHS, CE, FCC Certified
- Plug and Play
- Yes, no drivers required
- Package Includes
- 1 x 10m USB 3.0 Active Cable
- Backward Compatibility
- Yes, supports USB 2.0 & USB 1.1
- Maximum Data Transfer Rate
- Up to 5Gbps (SuperSpeed)
- Connector Material
- Gold-plated for corrosion resistance
- Compatible Devices
- Printers, Scanners, DACs, External Hard Drives, Audio Interfaces
- Connector 1
- USB Type A Male
- Error Correction
- Integrated repeater to minimize data loss
About USB cable active 10 mtr a to b 3 version
USB 3.0 type A to B cable-Data transfer speed up to 5Gbps, 10x faster than USB 2.0 printer cable, perfect fit with USB 3.0 B port in your devices. A 10-meter (32.8 ft) USB 3.0 Type-A to Type-B cable requires an active repeater/equalizer chip to boost the signal. Standard passive USB cables suffer from severe data loss or drop connection past 3 meters.Exceptional Data Integrity Across Long Distances
This 10-meter USB 3.0 Active A to B cable incorporates a built-in repeater to ensure strong, reliable data transmission even over extended lengths. Its gold-plated connectors and premium shielding minimize interference, making it a dependable solution for high-speed device connections without compromise.
Universal Compatibility and Effortless Setup
Designed to connect with a wide variety of USB 3.0 devices-including printers, scanners, and external storage-this cable offers backward compatibility with USB 2.0 and 1.1. Plug-and-play installation means you can get started instantly across different operating systems and devices.
FAQ's of USB cable active 10 mtr a to b 3 version:
Q: How does the built-in signal booster benefit long USB connections?
A: The built-in signal repeater amplifies data signals along the 10-meter cable, preserving high-speed performance and minimizing data loss or errors over extended distances compared to standard passive cables.Q: What devices can I use with this USB 3.0 Active A to B cable?
A: This cable supports printers, scanners, external hard drives, audio interfaces, DACs, and any other equipment with a USB Type B port requiring robust, high-speed data transfers.Q: When is an active USB extension required instead of a regular cable?
A: Active USB cables like this one are essential when you need to connect USB devices beyond the standard cable length limit (typically 5 meters for USB 3.0) while maintaining reliable, fast data transmission.Q: Where can I use this 10 meter USB cable?
A: This cable is suitable for office setups, print stations, music studios, industrial equipment connections, or any environment where high-speed USB connections are required over longer distances.Q: What is the installation process for this cable?
A: No complex process is involved; simply connect the USB Type A end to your computer or hub and the Type B end to your device. The cable is plug-and-play, needing no additional drivers or power supply.Q: Does this cable support older USB devices?
A: Yes, it is fully backward compatible and works with USB 2.0 and USB 1.1 devices, ensuring reliable operation even with equipment that does not utilize SuperSpeed.Q: What are the key benefits of using an active USB 3.0 cable?
A: This active cable provides stable, high-speed data transfer over long distances, integrated error correction, broad device compatibility, and robust durability, all while offering seamless setup and operation.
