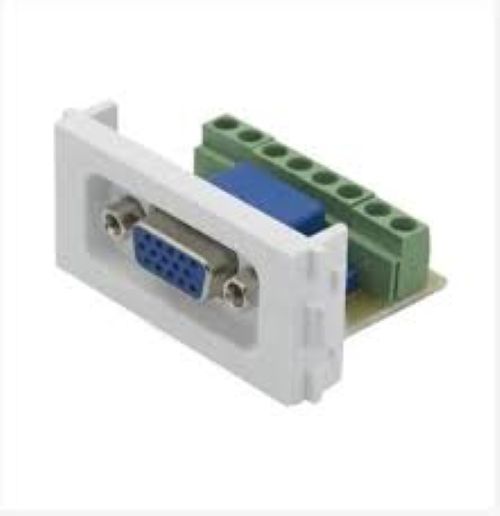

VGA Female Connector for Wall Plate Screw Fitting Connector

Name: VGA Female Connector for Wall Plate Screw Fitting Connector
Brand: CHERRY CONNECTRONICS
Price: 110.0 INR
Availability: InStock

Price 110.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

VGA Female Connector for Wall Plate Screw Fitting Connector Specification

Cable Type
Not applicable (Device-side connector)

Usage & Applications
Computer to monitor connections through wall plates, AV installations, projectors

Operating Temperature
-20C to +70C

Rated Temperature
-20C to +70C

Insulation
High Quality Plastic Insulation

Features
Screw fitting, easy installation, durable construction, stable connection, suitable for wall plate mounting

Number of Conductor
15 (VGA standard pin count)

Diameter
18mm (approx., at widest point)

Conductor Type
Solid

Weight
Approx. 10 grams

Install Type
Screw Fitting (for wall plate mount)

Locking Type
Screw Lock (with thumb screws)

Conductor Shape
Round

Product Type
VGA Female Connector for Wall Plate Screw Fitting

Insulation Material
Plastic (High Quality Insulation)

Application
VGA signal connection in wall plate installations, computer monitor connection, projector interfaces

Conductor Material
Brass (with gold or nickel plating)

Storage Temperature
-40C to +80C

Connector Color
Blue

Shield Material
Metal

Dimension (L*W*H)
Approx. 25mm x 18mm x 15mm (main connector body)

Material
ABS Plastic and Metal Alloy

Color
Blue (connector), Silver (metal)

Size
Standard VGA size, fits wall plate aperture

Flame Retardance
UL94V-0 rated plastic

Compatibility
VGA D-sub 15-pin cables and devices

Package Content
1 x VGA Female Connector for Wall Plate Screw Fitting

Insulation Resistance
Minimum 1000M at 500V DC

Gender
Female

Pin Plating
Nickel or Gold plated for improved conductivity and corrosion resistance

Contact Resistance
Maximum 30m

Housing Material
ABS Plastic

Mount Type
Wall Plate Mount

Connector Style
Right Angle for wall attachment

About VGA Female Connector for Wall Plate Screw Fitting Connector

Soldering free, easy installation
One module for one group of VGA signal transmission
VGA TO RJ45 Converter
Integrate one port VGA with backside screw connection
Fits for both input and output VGA signal transmission

Enhanced Conductivity and Safety

The VGA Female Connector features high-quality pin plating in either nickel or gold, optimizing electrical conductivity and minimizing signal loss. Its ABS housing is UL94V-0 flame retardant, providing both safety and longevity, crucial for installations in demanding environments. These qualities ensure stable video connections over time.

Versatile Wall Plate Design

Specially designed for wall plate mounting, the connector's right-angle style allows for a streamlined, flush installation. This makes it an excellent choice for offices, classrooms, home theaters, and other settings requiring discrete yet accessible VGA connectivity.

FAQ's of VGA Female Connector for Wall Plate Screw Fitting Connector:

Q: How is the VGA Female Connector for Wall Plate installed?

A: The connector is designed for wall plate mounting via a simple screw fitting. Secure it directly into the wall plate using standard screws, ensuring the right-angle style provides a flush finish and easy access to VGA cables.

Q: What types of devices or cables is this connector compatible with?

A: It is fully compatible with VGA D-sub 15-pin cables and devices, such as monitors, projectors, and computers, making it suitable for a wide range of audio-video applications.

Q: When should I consider using a wall plate VGA connector?

A: A wall plate VGA connector is ideal when you need a neat, permanent, and professional-looking installation, such as in meeting rooms, classrooms, auditoriums, or home theaters to avoid cable clutter and promote durability.

Q: Where can this connector be installed?

A: The connector can be installed wherever a wall plate can be mounted, such as drywall partitions, AV panels, conference rooms, or multimedia stations, ensuring easy accessibility and a tidy finish.

Q: What are the benefits of the nickel or gold pin plating?

A: Nickel or gold plating on the pins enhances electrical conductivity and significantly resists corrosion. This ensures longer-lasting connections and reduces the risk of signal degradation over time.

Q: How does the ABS plastic housing and flame retardance benefit users?

A: The ABS housing is UL94V-0 rated for flame retardance, adding an extra layer of safety by minimizing ignition risk in case of electrical faults, making it suitable for use in commercial and institutional environments.
