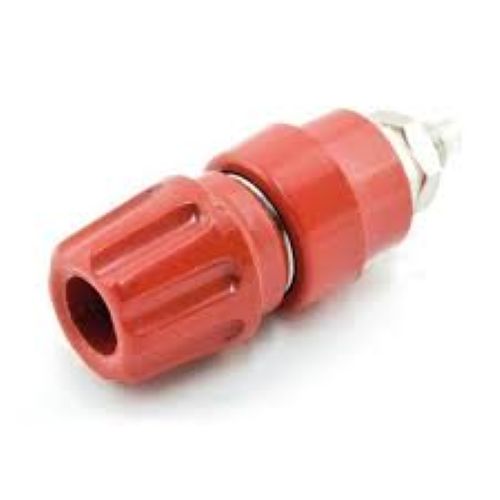

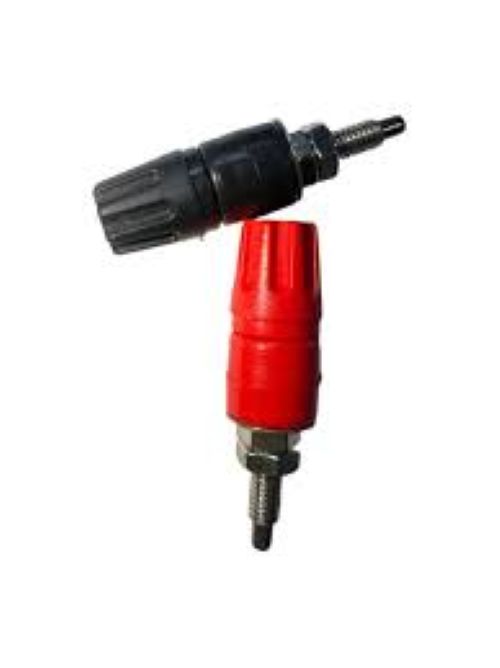

15 Amp Bakelite Terminals

Name: 15 Amp Bakelite Terminals
Brand: CHERRY CONNECTRONICS
Price: 20.0 INR
Availability: InStock

Price 20.0 INR/ Pack

Get a Price/Quote

MOQ : 1 Pack

15 Amp Bakelite Terminals Specification

Features
High insulating strength, Durable, Corrosion resistant, Easy to install

Rated Temperature
Up to 100C

Core Number
Single

Locking Type
Threaded/screw locking

Tensile Strength
High mechanical strength

Dielectiric Strength
High, due to bakelite body

Insulation
Insulated via bakelite body

Conductor Shape
Round threaded stud

Diameter
Approx. 6 mm

Operating Temperature
-10C to 100C

Weight
Approx. 10 grams per piece

Usage & Applications
Test equipment, lab benches, electrical boards

Install Type
Panel Mount, Screw Fix

Core Material
Metal (Brass/Steel)

Conductor Type
Solid metal terminal

Number of Conductor
Single terminal

Product Type
Bakelite Terminal (Screw Type)

Length
Standard size, approx. 4-5 cm

Voltage
Up to 250V

Insulation Material
Bakelite

Application
Electrical wiring, connection, test benches, electrical panels

Conductor Material
Nickel plated brass/steel

Jacket Material
None (Thermoplastic bakelite body)

Storage Temperature
-10C to 60C

Connector Color
Red, Black

Jacket Color
Red, Black

Dimension (L*W*H)
Approx. 50mm x 15mm x 15mm

Color
Red, Black

Material
Bakelite with metallic parts

Size
Standard, M4 thread

Contact Resistance
Very low

Body Type
Ribbed/Grip design for ease of handling

Pin Diameter
Approx. 4 mm

Thread Size
M4 standard

Surface Finish
Nickel plated metal

Flammability
Bakelite is self-extinguishing

Compliance
RoHS compliant (on request)

Mounting Hole Size
6 mm

Maximum Current
15 Amps continuous

About 15 Amp Bakelite Terminals

A 15 Amp Bakelite terminal strip is a heat-resistant and durable electrical component used to securely connect and organize multiple wires within a circuit. This 12-way, double-row screw terminal strip is ideal for industrial control panels, junction boxes, inverters, stabilizers, and home electrical wiring. It provides a reliable and insulated connection for various applications. Features at a glance

12-way design: Provides 12 pairs of connection points, allowing you to easily connect and organize multiple wires.
15 Amp rating: Safely handles electrical loads up to 15 amperes, making it suitable for general electrical equipment and appliances.
Bakelite construction: Made from high-quality Bakelite, a thermosetting plastic known for its excellent electrical insulation and high heat resistance.
Screw terminals: Uses brass screws to provide secure and long-lasting wire terminations.
Double-row configuration: Organizes connections neatly while maximizing density and ensuring proper spacing for easy installation.
Closed-type design: Offers enhanced safety and protection against accidental contact.

Superior Electrical Insulation and Safety

Made with a high-strength bakelite body, these terminals provide outstanding electrical insulation and self-extinguishing properties. This ensures safety and reliability in environments where protecting against electrical leakage, sparks, or overheating is critical. The high dielectric strength of bakelite helps maintain low contact resistance and stable electrical performance over time.

Durable, Corrosion-Resistant Construction

Each terminal features nickel-plated brass or steel conductors within a robust bakelite shell, delivering excellent durability, resistance to corrosion, and mechanical stress. This construction allows stable connections and consistent performance, even in challenging or high-use environments such as laboratories and control panels.

Easy Panel Mount Installation

Designed for simplicity, these terminals fit standard panel mount holes (approx. 6 mm diameter) using M4 threaded hardware. The ribbed grip design supports quick screw-fix installation, reducing assembly time while ensuring a secure locking interface. Perfect for fast integration into test setups, equipment, or electrical distribution boards.

FAQ's of 15 Amp Bakelite Terminals:

Q: How do I install the 15 Amp Bakelite Terminal into an electrical panel?

A: The terminal is designed for standard panel mounting with a 6 mm mounting hole and M4 threaded screw fix. Simply insert the terminal into the panel hole and secure it with the appropriate fastening hardware, ensuring a tight grip using the ribbed body for ease of handling.

Q: What are the main benefits of using bakelite as the insulation material?

A: Bakelite offers self-extinguishing properties, high dielectric strength, and superior mechanical durability. These features provide excellent safety, minimize the risk of electrical faults, and ensure the terminal operates reliably over a wide temperature range (-10C to 100C).

Q: Where can these terminals typically be used?

A: These terminals are commonly used in test benches, laboratory equipment, electrical panels, and control boards. They're suitable for dealer, distributor, manufacturer, fabricator, and wholesaler operations requiring secure, high-current single-terminal connections.

Q: What is the maximum continuous current and voltage the terminal can handle?

A: The terminal is rated for a maximum continuous current of 15 Amps and can safely operate at voltages up to 250V, making it ideal for most standard electrical wiring and connection requirements.

Q: How does the nickel plating enhance the terminal's performance?

A: Nickel plating provides enhanced corrosion resistance to the metallic components, leading to longer-lasting electrical connections, lower maintenance needs, and more stable performance in diverse operating environments.

Q: When should I request RoHS compliance certification?

A: If your organization or project requires evidence of RoHS compliance for health, safety, or export reasons, you can request the necessary certification documentation when ordering these terminals from your supplier.
