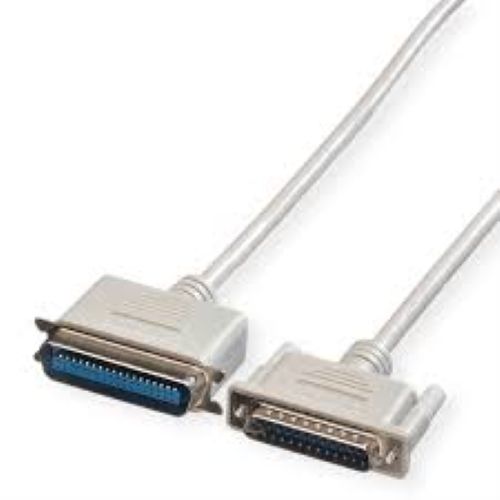

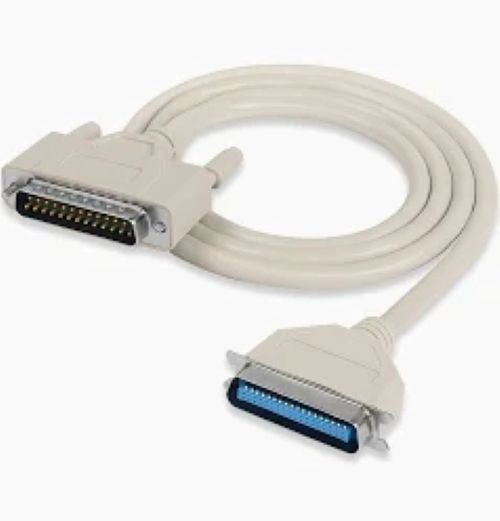

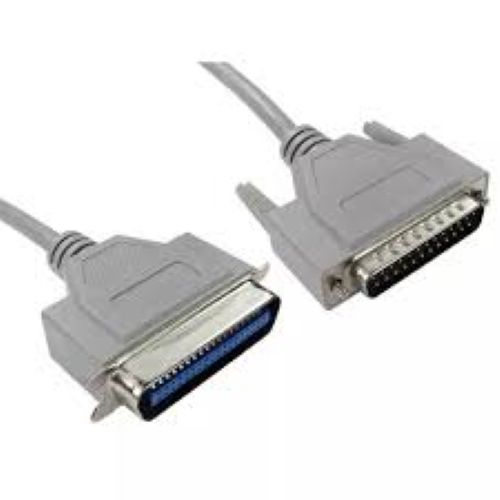

Name: Parallel Printer Cable
Brand: CHERRY CONNECTRONICS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Parallel Printer Cable Specification

Usage & Applications
Connecting printers, scanners, other parallel port devices

Operating Temperature
-20C to +60C

Core Material
Copper

Features
High-quality connectivity, Reliable data transfer, Molded connectors for durability

Conductor Shape
Stranded

Diameter
Approx. 6mm

Cable Type
Parallel Cable

Impedance
100 Ohm approx.

Weight
Approx. 80-120g (for 1.5 meter cable)

Conductor Type
Multi-core

Armored Material
Not armored

Insulation
PVC insulated

Locking Type
Screw lock/Clip lock depending on connector type

Rated Temperature
-20C to +60C

Tensile Strength
Not specified, standard for similar printer cables

Core Number
25 cores

Number of Conductor
25 (for DB25 configuration)

Install Type
Plug and play

Dielectiric Strength
500V AC/min

Product Type
Parallel Printer Cable

Length
1.5 meters (custom lengths available)

Voltage
30V (standard for signal cables)

Insulation Material
PVC

Application
Parallel printer, Data communication, Peripheral device connection

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-25C to 70C

Connector Color
Metallic/Silver with blue inserts

Shield Material
Aluminum Foil

Jacket Color
Grey

Dimension (L*W*H)
Cable diameter approx. 6mm; connector size varies

Material
Copper, PVC, Metal shell connectors

Color
Grey

Size
Standard for DB25 to Centronics ($~$36-pin)

Environmental Protection
Basic moisture and dust resistance

Contact Plating
Nickel-plated contacts for corrosion resistance

RoHS Status
Compliant

Compatible Devices
Printers, Scanners, Parallel port accessories

Connector Type
DB25 Male to Centronics 36-pin Male

Flexibility
High, suitable for frequent connection/disconnection

Pin Configuration
25-pin to 36-pin

Data Transfer Rate
Up to 2 Mbps (IEEE 1284, parallel)

Current Rating
1A max per contact

Flame Retardant
Yes, meets UL standards

Outer Shield
Foil shielded for noise reduction

About Parallel Printer Cable

Connecting desktop to printer. A parallel printer cable (also known as an LPT or Line Printer Terminal cable) is a legacy data cable used to transmit multiple bits of data simultaneously between a computer and a peripheral device

Optimal Connectivity for Parallel Devices

Designed specifically for connecting parallel printers, scanners, and compatible accessories, this cable ensures seamless communication across legacy and industrial equipment. With a DB25 male to Centronics 36-pin male configuration, it bridges classic interfaces, delivering uninterrupted, high-speed data transfer up to 2 Mbps. Its sturdy, molded construction and flexible design make it suitable for installations where regular plugging and unplugging are essential.

Quality Build and Enhanced Reliability

Featuring stranded copper conductors, nickel-plated pins, and robust PVC insulation, this cable promises long-lasting performance and consistent connectivity. The aluminum foil shielding minimizes electromagnetic interference, while molded connectors safeguard against wear during frequent handling. Suitable for demanding environments, its design confers resistance to basic moisture, dust, and flame, ensuring user safety and maximum longevity.

FAQ's of Parallel Printer Cable:

Q: How do I connect the DB25 to Centronics 36-pin parallel printer cable to my devices?

A: Simply align the DB25 male connector with your computer or device's parallel port and the Centronics 36-pin male connector with the corresponding port on your printer or scanner. Secure both ends using the screw or clip locks if provided for a snug, reliable fit.

Q: What are the main benefits of using this parallel printer cable?

A: This cable offers high-quality, reliable data transfer up to 2 Mbps, corrosion resistance due to nickel plating, effective noise reduction through aluminum foil shielding, flame retardancy, and robust mechanical design for frequent connections and disconnections.

Q: Where can this cable be used and what devices are compatible?

A: It is ideal for connecting desktop or industrial printers, scanners, and other parallel port accessories in offices, workshops, or production environments where parallel (DB25 or Centronics) interfaces are present.

Q: What process ensures the cable's durability and safety?

A: The cable uses molded connectors for structural integrity, fire-retardant PVC insulation that meets UL standards, and nickel-plated contacts for corrosion resistance. Its RoHS compliance and basic moisture and dust resistance provide extra protection for long-term operational safety.

Q: When should I choose a parallel printer cable over USB or other interfaces?

A: A parallel printer cable is necessary when interfacing with legacy printers, scanners, or peripherals equipped only with DB25 or Centronics parallel ports, especially in environments that rely on robust, interference-resistant data transmission.

Q: What features enhance this cable's usage and reliability for frequent connections?

A: High flexibility, robust PVC jacket, and stranded copper conductors combine to support frequent plugging/unplugging and movement. Molded connectors and secure locking mechanisms further guarantee long-term, consistent performance.
