Name: Optical Patch Cord
Brand: CHERRY CONNECTRONICS
Price: 65.0 INR
Availability: InStock

Price 65.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Optical Patch Cord Specification

Armored Material
Optional Steel Tube (for armored type)

Number of Conductor
1 or 2 (Simplex, Duplex options)

Dielectiric Strength
> 3 KV/mm

Operating Temperature
-20C to +70C

Conductor Shape
Round

Core Number
1 or 2 cores

Weight
Approx. 15g/m

Usage & Applications
Telecom, Networking, FTTH, Data Centers

Cable Type
Single Mode (OS2), Multi Mode (OM1/OM2/OM3/OM4)

Core Material
High-Purity Silica Glass

Tensile Strength
>90N (Short term), >50N (Long term)

Features
Low Insertion Loss, High Return Loss, Excellent Repeatability and Exchangeability, Stable Performance, Flexible Construction, Easy to Install

Conductor Type
Single Mode / Multi Mode

Install Type
Indoor/Outdoor

Rated Temperature
-20C to +70C

Locking Type
Push-Pull (Standard SC/LC connectors)

Insulation
PVC/LSZH Outer Jacket

Diameter
2.0mm or 3.0mm

Product Type
Fiber Optic Patch Cord

Length
1 Meter (standard); Custom lengths available

Insulation Material
PVC or LSZH

Application
Telecommunication, Data Center, LAN, FTTH, CATV, Active Device/Transceiver Interface, Fiber Optic Testing

Conductor Material
Optical Fiber Glass

Jacket Material
PVC, LSZH

Storage Temperature
-40C to +85C

Connector Color
Beige (SC), Blue (LC/UPC), Green (LC/APC)

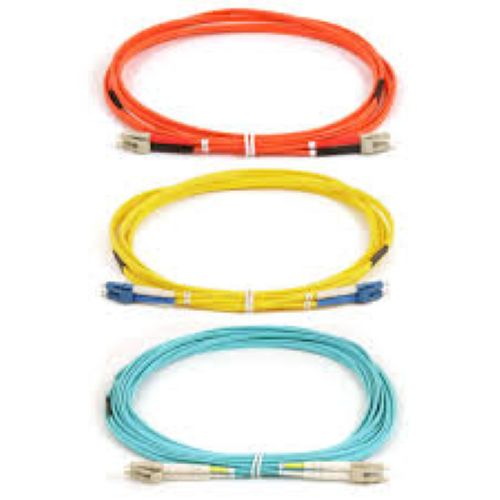

Jacket Color
Yellow (Single Mode), Orange (Multi Mode), Aqua (OM3)

Dimension (L*W*H)
1 m (length), diameter as per fiber count/type

Material
Fiber Glass, PVC, LSZH

Color
Yellow, Orange, Aqua, Custom

Size
Standard: 1m, 2m, 3m, Customized

Polish Type
UPC, APC

Flame Retardant Grade
IEC 60332-1

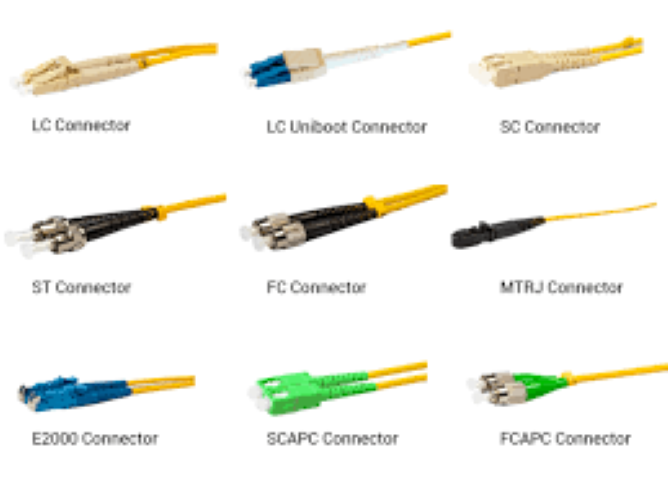

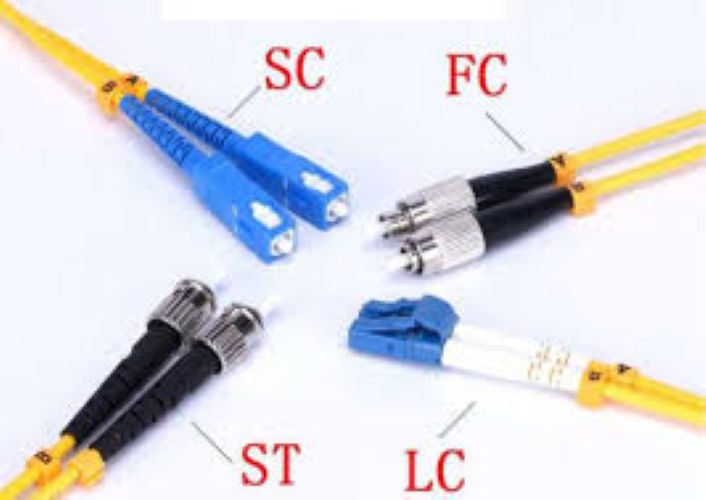

Connector Type
SC/LC/FC/ST (UPC/APC)

Fiber Count
Simplex/Duplex

Connector Durability
>1000 Mating Cycles

Insertion Loss
< 0.3 dB typical

Packaging
Individual Polybag Pack

Return Loss
> 50 dB (UPC), > 60 dB (APC)

Standards Compliance
IEC, TIA/EIA, RoHS

Outer Diameter
2.0mm or 3.0mm

RoHS Compliance
Yes

Minimum Bend Radius
10xCable Diameter

About Optical Patch Cord

A Fiber Optic Patch Cord is a fiber-optic cable capped at either end with fiber connectors, designed to connect equipment to the fiber optic cabling link.

It features a thicker protective layer and is commonly used for connecting optical transceivers to terminal boxes.

Patch cords find applications in various fields, such as optical fiber communication systems, optical fiber access networks, optical fiber data transmission, and local area networks.

This blog post will introduce you to the concept and classification of Fiber Optic Patch Cords.

Precision Engineering for Reliable Network Performance

Built using high-purity silica glass and available in single mode or multi mode fibers, these optical patch cords deliver excellent repeatability and exchangeability. The connectors come in standard colors (such as beige for SC and blue or green for LC variants) for easy identification during installation and maintenance.

Flexible Construction and Application Versatility

Suitable for both indoor and outdoor environments, this patch cord withstands a temperature range from -20C to +70C and offers a minimum bend radius of 10x the cable diameter. Optional armored steel tubing enhances physical protection, making it ideal for various network setups including telecom rooms and data centers.

Safety, Compliance, and Customization

Compliant with global safety and environmental regulations (IEC, TIA/EIA, RoHS, IEC 60332-1), the patch cord comes in multiple jacket materials (PVC/LSZH) and lengths (standard or custom). Its flame-retardant grade ensures added safety, while custom options meet unique project requirements.

FAQ's of Optical Patch Cord:

Q: How do I choose the correct connector type for my Optical Patch Cord application?

A: Selection depends on the equipment or interface; SC, LC, FC, and ST connectors match specific ports. Confirm compatibility with your device or patch panel, and choose UPC for general use or APC where maximum return loss is critical.

Q: What benefits does a high return loss and low insertion loss provide?

A: High return loss (>50 dB UPC, >60 dB APC) and low insertion loss (<0.3 dB) ensure minimal signal reflection and attenuation, resulting in improved signal integrity and reduced transmission errors in high-performance networks.

Q: When should I use armored patch cords instead of standard ones?

A: Armored patch cords, featuring an optional steel tube, are recommended in environments where cables are exposed to potential mechanical damage or require extra durability, such as harsh industrial settings or exposed cabling routes.

Q: Where can this patch cord be used?

A: It is suitable for telecommunication networks, data centers, fiber to the home (FTTH), CATV, LAN setups, active device/transceiver interfaces, and fiber optic testing, both for indoor and outdoor installations.

Q: What is the installation process for this optical patch cord?

A: Simply align the connector with the port and use the push-pull locking mechanism (standard for SC/LC connectors) for secure attachment. Its flexible design and color-coded connectors simplify routing and placement in complex networks.

Q: How does the product comply with safety and environmental standards?

A: The patch cord adheres to IEC, TIA/EIA, and RoHS standards, features flame-retardant jacket material rated to IEC 60332-1, and uses environmentally safe materials for safer operation in public and critical installations.

Q: What customization options are available for length and jacket material?

A: Standard lengths include 1m, 2m, or 3m, with custom lengths available upon request. Choose between PVC or LSZH jacket material to meet application-specific fire safety and environmental requirements.
