RCA Socket Gold Plated Panel Mount

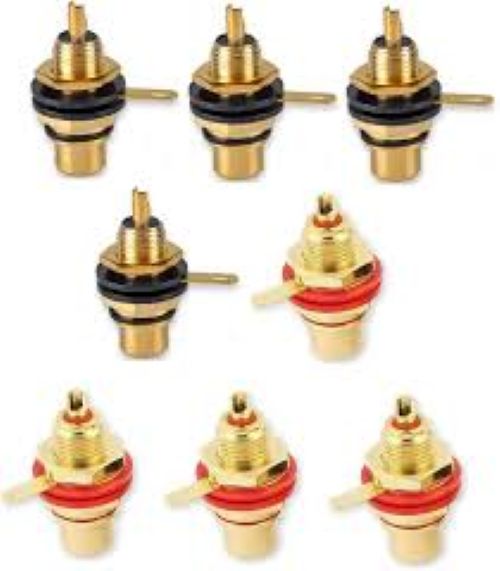

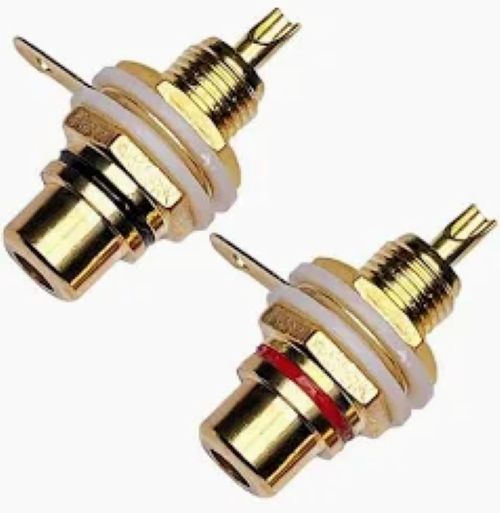

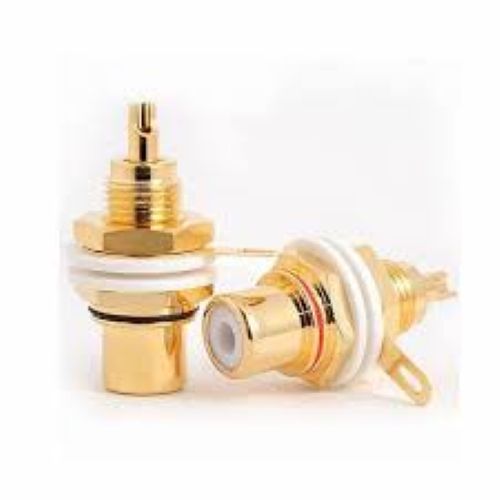

Name: RCA Socket Gold Plated Panel Mount
Brand: CHERRY CONNECTRONICS
Price: 110.0 INR
Availability: InStock

Price 110.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RCA Socket Gold Plated Panel Mount Specification

Overheating Protection
NO

Connector Type
RCA Socket

Humidity %
Up to 85% RH

Feature
Gold plated corrosion resistant, secure panel mount

Surface Finish
Gold plated

Shape
Round

Operating Temperature
-20C to +70C

IP Rating
Not rated

Mounting Type
Panel mount

Insulation Material
High quality plastic

Product Type
RCA Socket Panel Mount

Application
Audio/Video signal connection

Protection Level
Standard

Frequency (MHz)
DC-100 MHz

Rated Voltage
Up to 30V AC/DC

Energy Consumption
Passive component, not applicable

Output Type
RCA female

Color
Gold/Red or Gold/White (as per code)

Dimension (L*W*H)
Approx. 25mm x 10mm x 10mm

Weight
Approx. 5g

Size
Standard RCA socket size (approx. 10 mm dia.)

Phase
Single phase

Input Voltage
Up to 30V

Connection Type
Solder type panel mount

No Of Poles
2

Material
Brass body with gold plating, plastic insulator

Contact Resistance
<30 m

Durability (Mating Cycles)
>5000 cycles

Mounting Hole Diameter
Approx. 6 mm

Insulation Resistance
>1000 M at 500V DC

RoHS Compliance
Yes

Center Pin Material
Gold plated Brass

Body Plating
Gold over Nickel

About RCA Socket Gold Plated Panel Mount

Rca Socket Gold Plated Teflon High end quality.Can be fitted on panel.A gold-plated RCA socket panel mount (also known as a chassis-mount phono jack) is a high-end audio/video connector designed to be mounted directly onto an equipment enclosure, wall plate, or custom amplifier chassis. The 24K gold plating provides superior electrical conductivity and maximum resistance to oxidation, which prevents signal degradation over years of use in humid environments. [1, 2, 3, 4, 5]

Reliable, Corrosion-Resistant Connection

This RCA socket boasts a gold-plated brass construction, enhancing signal transmission while minimizing corrosion, even in demanding environments. The gold-over-nickel finish preserves contact quality over time, securing consistent audio/video performance. Its robust design ensures a lasting connection and reduced signal degradation for professional installations.

Effortless Installation and Versatility

Designed with a standard 6 mm mounting hole and secure solder-type panel mount, this connector easily integrates into custom panels, audio equipment, or AV devices. Its compatibility with a wide range of devices and color-coded options (Gold/Red or Gold/White) make it is an excellent choice for both DIY enthusiasts and professionals.

FAQ's of RCA Socket Gold Plated Panel Mount:

Q: How is the RCA Socket Gold Plated Panel Mount typically installed?

A: This socket is designed for panel mounting using a standard 6 mm hole. The connection is made through soldering, making it suitable for secure integration in custom audio/video equipment panels or chassis.

Q: What are the main benefits of gold plating on the RCA socket?

A: Gold plating significantly reduces contact resistance and protects the connector from corrosion, ensuring reliable signal transmission and prolonged durability-even in environments with high humidity (up to 85% RH).

Q: When should I use this RCA panel mount connector?

A: Use this connector when you require a dependable, low-resistance RCA interface for audio/video signal transfer, particularly in professional and custom setups. Its durability and superior signal performance make it ideal for frequent connections and disconnections.

Q: What is the frequency range and rated voltage of this RCA socket?

A: The socket handles frequencies from DC up to 100 MHz and operates at voltages up to 30V AC/DC, suitable for most audio and video applications.

Q: Where can this RCA socket be used?

A: It is ideal for use in audio/video equipment, custom electronics enclosures, amplifiers, and any application needing a robust RCA female connection.

Q: What materials are used in the construction of this connector?

A: Key materials include a gold-plated brass center pin and body with a nickel base layer, and a high-quality plastic insulator, offering both mechanical strength and excellent electrical properties.

Q: How many mating cycles can this RCA socket endure?

A: This connector is rated for over 5000 mating cycles, ensuring dependable long-term performance in applications that involve frequent connecting and disconnecting.
