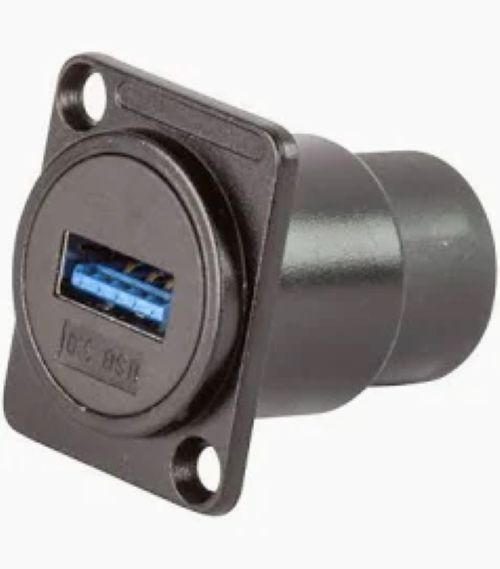

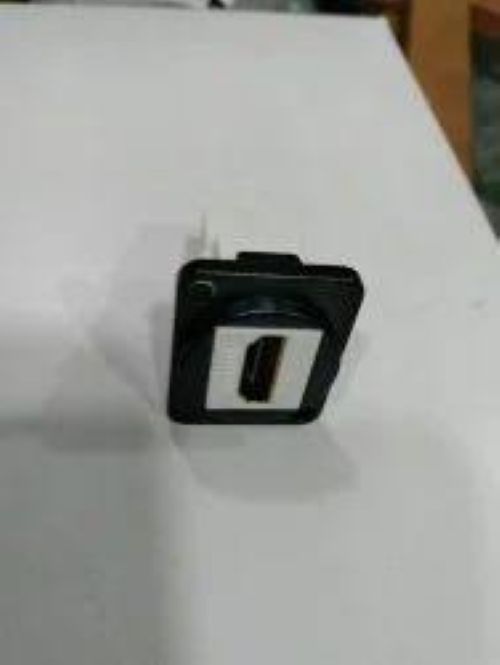

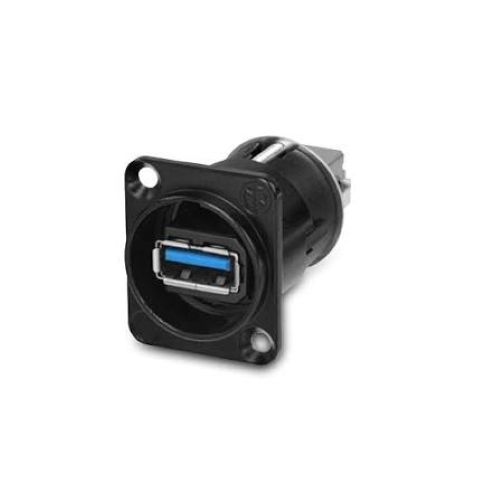

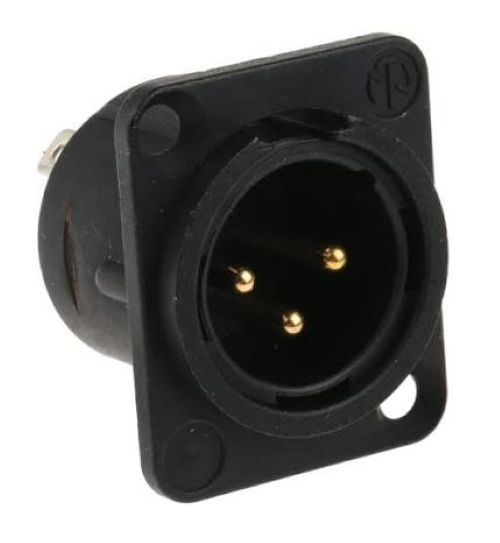

Panel mount connectors Neutrik

Name: Panel mount connectors Neutrik
Brand: CHERRY CONNECTRONICS
Price: 290.0 INR
Availability: InStock

Price 290.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Panel mount connectors Neutrik Specification

Impedance
110 ohms (typical for AES/EBU compatible models)

Usage & Applications
Stage, studio, live sound, installations, industrial control panels

Dielectiric Strength
> 1 kV AC (between contacts)

Features
Robust and reliable panel mount connectors designed for professional audio and industrial applications

Cable Type
N/A for panel connector

Conductor Shape
Round pins/sockets

Diameter
Panel hole: approx. 24 mm

Number of Conductor
3 (typically XLR); varies by model

Install Type
Panel mount with screw fixing

Core Material
Copper alloy

Operating Temperature
-30C to +80C

Locking Type
Locking latch mechanism

Rated Temperature
-30C to +80C

Weight
Approx. 20g (varies with type)

Tensile Strength
Not specified; designed for secure panel retention

Armored Material
None (panel mount only)

Core Number
3 (standard), 4, 5 (other variants)

Insulation
Non-conductive thermoplastic

Conductor Type
Solid contacts

Product Type
Panel Mount Connector

Length
Standard panel-mount form factor (custom lengths available)

Voltage
Up to 50V (depending on connector type)

Insulation Material
High-quality thermoplastic

Application
Audio equipment, stage lighting, video, broadcast, industrial devices

Conductor Material
Copper alloy (for internal contacts)

Jacket Material
Thermoplastic (for compatible mating cables)

Storage Temperature
-40C to +85C

Connector Color
Black (main housing)

Shield Material
Nickel-plated brass (for referenced metal components)

Jacket Color
N/A for panel mount; cable variants may use black

Dimension (L*W*H)
Standard D-shape panel cut out, approx. 24 x 28 mm front plate

Color
Black housing, silver contact pins

Material
Thermoplastic with metal alloy inserts

Size
Standard Neutrik D-series panel mount

Protection Class
Class III (depending on mounting and installation)

Contact Plating
Gold- or silver-plated contacts for superior signal integrity

Flammability
UL 94 V-0 rated housing

Ingress Protection
IP40 (typical for unsealed models)

Mounting Holes
M3 thread holes for secure panel attachment

Shell Material
Zinc alloy with nickel plating (for metal models)

Mating Cycles
>1000 insertion/withdrawal cycles

Current Rating
Up to 16A (variants dependent)

Panel Thickness Compatibility
1 mm to 4 mm panel thickness

Contact Resistance
<10 m

About Panel mount connectors Neutrik

These panel mounted XLR connectors may be mounted in either the front or rear of a panel. With a simple screw mount frame, these XLR connectors are easy to install, and feature a locking mechanism that ensures a reliable mating. Sometimes known as a cannon jack, these XLR connectors are ideal for studio and stage applications.

Robust Construction for Lasting Performance

Neutrik panel mount connectors combine durable zinc alloy shells with nickel plating, providing exceptional resistance to wear and corrosion in demanding environments. They are designed to accommodate repeated insertions and withdrawals-supporting over 1000 cycles without performance degradation. This resilience makes them a suitable choice for professional and industrial applications where reliability is vital.

Superior Electrical Integrity and Versatile Applications

Gold- or silver-plated contacts ensure high signal fidelity and reduced resistance, up to <10 m. These connectors support up to 16A depending on the variant, making them versatile for audio, power, and signal connections. Their design supports installation by dealers, distributors, fabricators, and more, across a range of industries requiring secure and efficient panel mounting solutions.

FAQ's of Panel mount connectors Neutrik:

Q: How are Neutrik panel mount connectors securely attached to panels?

A: Neutrik panel mount connectors use M3 thread holes, allowing for secure fastening to panels ranging from 1 mm to 4 mm in thickness. This threaded design ensures a stable and robust connection, suitable for various installation environments.

Q: What advantages do gold- or silver-plated contacts offer in these connectors?

A: Gold- or silver-plated contacts provide superior signal integrity by minimizing contact resistance (less than 10 m), reducing the risk of signal loss and ensuring reliable electrical transmission in critical applications.

Q: When should I choose an IP40-rated connector?

A: IP40-rated connectors are ideal for indoor or unsealed environments where basic ingress protection against solid objects is sufficient, but water resistance is not required. This rating suits control panels and audio installations where exposure to moisture is minimal.

Q: Where can these panel mount connectors be used effectively?

A: They are well-suited for professional audio systems, industrial control panels, power distribution units, and other equipment that demands stable panel attachment and secure electrical connectivity. Their UL 94 V-0 flammability rating also makes them safe for use in various commercial settings.

Q: What is the process for installing these connectors on a panel?

A: Begin by preparing the panel with appropriately sized cutouts, align the connector with M3 threaded mounting holes to the panel, and secure it using compatible screws. Connect the internal wiring according to application needs, ensuring proper contact engagement.

Q: How do users benefit from the connector's high mating cycle rating?

A: Withstanding over 1000 mating cycles, these connectors maintain performance and durability through frequent connections and disconnections, reducing maintenance and replacement costs over time.

Q: What protection class do these connectors offer, and what does it mean?

A: They can qualify for Protection Class III (depending on mounting and installation), indicating they are designed for applications with low voltage, ensuring safety for users and sensitive equipment.
