Neutrik XLR Connectors

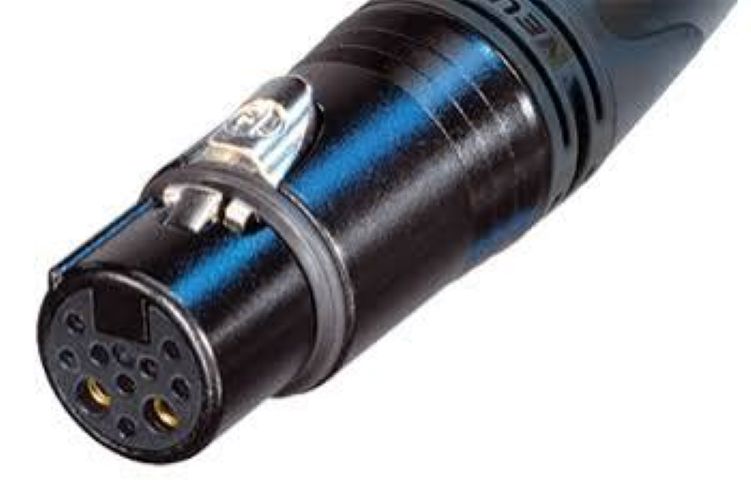

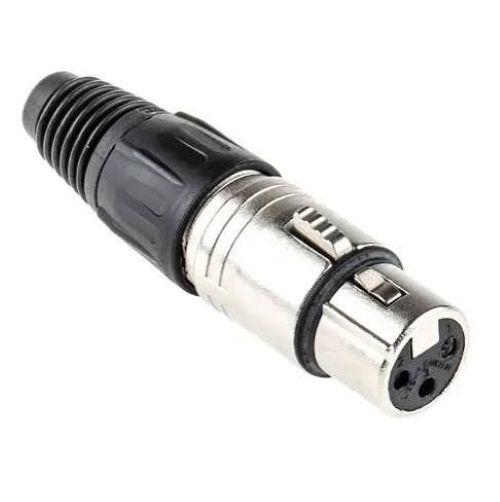

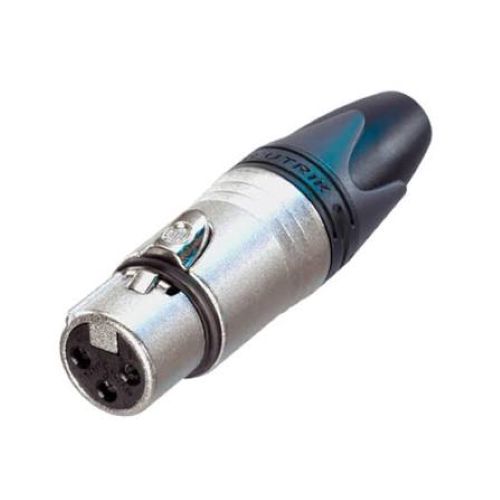

Name: Neutrik XLR Connectors
Brand: CHERRY CONNECTRONICS
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Neutrik XLR Connectors Specification

Weight
Approx. 45g.

Dielectiric Strength
Standard insulation for connector; 1.5 kV DC (typical).

Install Type
Cable-mount, panel/chassis-mount.

Conductor Shape
Not directly applicable, circular for cable.

Diameter
Approx. 20mm (outer body).

Armored Material
Not applicable for connector.

Operating Temperature
-30C to +80C.

Number of Conductor
For 3-pin XLR, 3 conductors (pins).

Features
Robust and durable housing, precise fit, secure locking mechanism, professional audio quality, easy cable assembly, reliable signal transmission, corrosion-resistant contacts.

Insulation
Plastic (Polyamide PA66).

Usage & Applications
Audio signal transmission, microphone connections, stage sound.

Cable Type
Balanced audio cable, microphone cable.

Locking Type
Latch lock mechanism.

Rated Temperature
-30C to +80C (connector).

Core Number
3 (for standard 3-pin XLR); available in 4, 5, 6, 7-pin variants.

Core Material
Not directly applicable, cable dependent.

Conductor Type
Not directly applicable.

Impedance
>5000 M @ 60 V DC (contact resistance <3m).

Tensile Strength
High mechanical durability-up to 1000 mating cycles.

Product Type
XLR Cable Connector (Male/Female).

Length
Standard connectors; custom cable lengths applicable.

Voltage
Rated up to 50V.

Insulation Material
Polyamide/Glass Fiber Reinforced.

Application
Professional audio, recording studios, live sound, broadcasting equipment, sound systems.

Conductor Material
Not directly applicable, cable dependent.

Jacket Material
Not applicable for connector; dependent on cable type.

Storage Temperature
-25C to +70C.

Connector Color
Black (Housing), Silver (Contacts).

Shield Material
Nickel or silver-plated brass (shielding in cable, not connector).

Jacket Color
Not applicable for connector.

Dimension (L*W*H)
Approx. 75mm (L) x 20mm (D) for typical connector.

Material
Die-cast zinc shell, plastic insulation insert.

Color
Standard: Black and silver.

Size
Standard XLR chassis/cable-mount dimensions.

Contact Plating
Silver-plated contacts for low contact resistance and high conductivity.

Mounting
Cable mount, Chassis mount, and Printed circuit board (PCB) mount options.

Gender
Male (plug) and Female (socket) available.

Ingress Protection
IP40 (standard).

Number of Pins
Available in 3-pin, 4-pin, 5-pin, 6-pin, and 7-pin configurations.

Flammability Rating
UL94 V-0 for plastic parts.

Mating Cycles
Tested for >1000 insertion/removal cycles.

Compatibility
Universal with all standard XLR connectors and sockets.

About Neutrik XLR Connectors

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Versatile Pin Configurations for Every Application

Neutrik XLR connectors come in 3, 4, 5, 6, and 7-pin options, making them suitable for diverse audio, video, and lighting setups. Whether you require basic mono connectivity or complex multi-channel solutions, you have flexibility in choosing the ideal connector for your system.

Enhanced Durability and Safety Features

Designed to withstand more than 1000 insertion and removal cycles, these connectors promise longevity in high-usage environments. With a UL94 V-0 flammability rating for plastic parts and standard IP40 ingress protection, they ensure both safety and reliability in demanding applications.

FAQ's of Neutrik XLR Connectors:

Q: How do silver-plated contacts benefit my setup?

A: Silver-plated contacts in Neutrik XLR connectors reduce contact resistance, improving electrical conductivity and ensuring consistent, high-quality audio or signal transmission in your systems.

Q: What mounting options are available for these XLR connectors?

A: You can choose from cable mount, chassis mount, and PCB mount options, allowing flexibility in how and where the connectors are installed depending on your equipment needs.

Q: When should I choose different pin configurations?

A: The choice of 3, 4, 5, 6, or 7 pins depends on your application's requirements-3-pin is standard for audio, while higher pin counts are suitable for complex audio networks and data transmission.

Q: Where can these connectors be used?

A: Neutrik XLR connectors are universally compatible with all standard XLR sockets, making them ideal for professional audio equipment, lighting controls, broadcasting hardware, and sound reinforcement systems.

Q: What is the durability of these connectors under frequent use?

A: Tested to withstand over 1000 mating cycles, these connectors offer outstanding durability, ensuring longevity even in environments with heavy connect/disconnect routines.

Q: How does the UL94 V-0 rating benefit my installation?

A: The UL94 V-0 flammability rating means the plastic parts resist flame propagation, contributing to safer installations, especially where fire safety standards are crucial.
