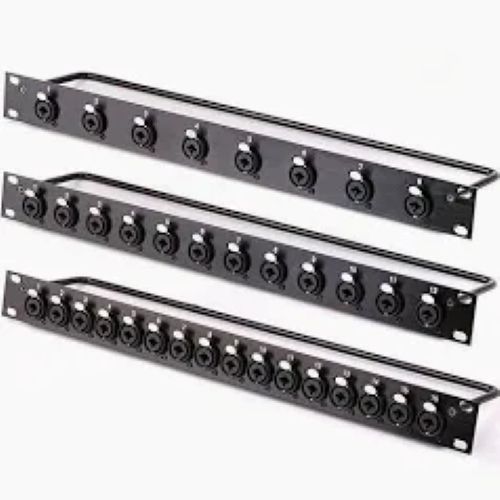

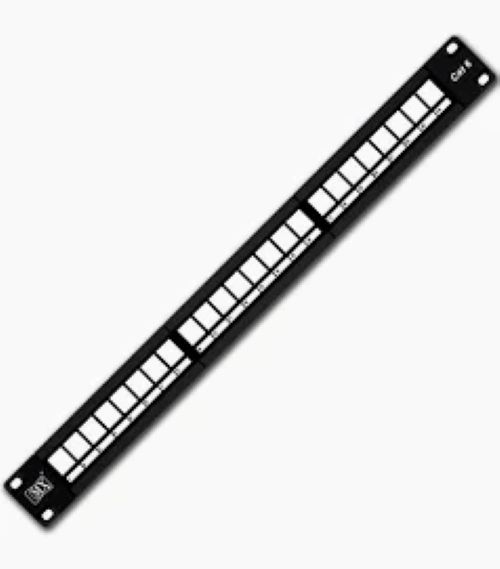

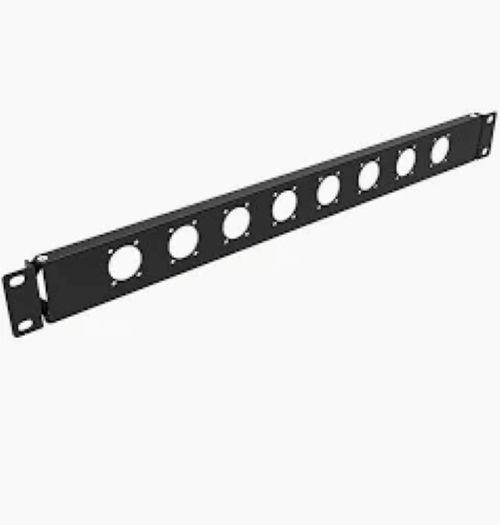

Panel for Rack Mounting Connector

Name: Panel for Rack Mounting Connector
Brand: CHERRY CONNECTRONICS
Price: 800.0 INR
Availability: InStock

Price 800.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Panel for Rack Mounting Connector Specification

Dielectiric Strength
1.5kV for 1 minute

Weight
Approx. 0.55 kg

Tensile Strength
>250 MPa

Install Type
Rack Mount

Insulation
Insulated mounting points

Diameter
Hole diameter 24 mm (standard)

Operating Temperature
-20C to +70C

Features
Designed for secure and organized rack mounting of connectors, sturdy construction, quick installation, supports various connector types

Locking Type
Screw-mount, fastened with rack screws

Usage & Applications
Holding connectors in 19-inch rack systems

Rated Temperature
-20C to +70C

Product Type
Panel for Rack Mounting Connector

Length
Standard 19-inch rack compatible; custom lengths available

Voltage
Up to 250V AC

Insulation Material
High-grade Polycarbonate (PC)

Application
Server racks, network enclosures, telecom cabinets, data centers

Jacket Material
N/A (Panel type; jacket does not apply)

Storage Temperature
-40C to +85C

Connector Color
Black

Shield Material
Steel (Powder coated)

Dimension (L*W*H)
483 mm (L) x 44 mm (W) x 20 mm (H)

Color
Black

Material
Powder-Coated Cold Rolled Steel

Size
1U Standard

Accessories Included
Mounting screws, earthing tags optional

Panel Thickness
1.5 mm

Flame Rating
UL94-V0

RoHS Compliance
Yes

Compatible Rack Units
1U (can be custom made for different units)

Corrosion Resistance
Excellent, salt spray tested

Mounting Holes
12 pre-punched holes (universal type)

Surface Treatment
Phosphate base before coating

Finish
Antistatic powdercoating

About Panel for Rack Mounting Connector

We are leading firms in the industry, offering wide range of Panel for Rack Mounting Connector that is dimensionally accurate. These products further, in ensures smooth operations. This Panel for Rack Mounting Connector products offered by us require minimum maintenance and is delivered in standard grades and dimensions. The offered range of panels have been developed utilizing high grade material in conformation set with set industry norms. Our line of panels is also robust in construction and aesthetic in design.

Features:

High impact strength
Easy installation
High grade materials

Robust Build and Premium Protection

Engineered from powder-coated cold rolled steel with a phosphate base, this panel features high corrosion resistance, tested under salt spray conditions. Its antistatic coating and UL94-V0 flame rating guarantee resilience in challenging environments while maintaining safety compliance. The integrated insulation safeguards connectors and personnel alike, making it an optimal choice for demanding applications.

Ease of Installation and Flexibility

Pre-punched with twelve universal 24 mm diameter holes, this panel streamlines the connector mounting process, accommodating diverse interface options. Mounting screws are supplied for immediate installation, and earthing tags are available if needed. Its 1U standard dimension ensures compatibility within most 19-inch racks, while custom lengths and unit options cater to specific requirements.

Optimal Application Environments

Perfectly suited for server racks, network enclosures, telecom cabinets, and data centers, this panel supports organized, secure cable management and connector integration. Operating safely between -20C to +70C- and built for long-term reliability- it is a trusted solution for fabricators, installers, system integrators, and infrastructure providers worldwide.

FAQ's of Panel for Rack Mounting Connector:

Q: How does this rack mounting panel help organize and secure my connectors?

A: This panel features twelve pre-punched universal holes, designed to accommodate a variety of connector types for neat, secure installation in 19-inch racks. The sturdy construction and insulated mounting points help to manage cables efficiently, reducing clutter and supporting long-term reliability.

Q: What is the recommended installation process for this mounting panel?

A: Installation is straightforward: simply align the panel within a 19-inch rack's 1U slot, secure it with the provided mounting screws, and fit your connectors into the 24 mm holes. Optional earthing tags are available for enhanced safety. No specialized tools are required beyond a standard screwdriver.

Q: Where should this panel ideally be used?

A: This rack mounting panel is ideal for use in server racks, network enclosures, telecom cabinets, and data centers. Its durable, corrosion-resistant construction is tailored for both commercial and industrial environments demanding high performance and organization.

Q: What are the benefits of the antistatic powder coating and UL94-V0 flame rating?

A: The antistatic powder coating helps prevent electrostatic discharge, protecting sensitive equipment. The UL94-V0 flame rating ensures the panel is flame retardant, thereby enhancing safety in environments where fire resistance is crucial.

Q: When should I consider opting for custom sizes or configurations?

A: If your installation requires more than the standard 1U size, different hole arrangements, or specific panel lengths, custom options are available to perfectly fit your project's needs. Customization ensures optimal compatibility and support for unique connector types or layouts.

Q: What accessories are included with the panel, and how do they enhance installation?

A: Each panel is supplied with mounting screws for immediate rack installation. Earthing tags are available as an optional accessory, which can be especially beneficial in environments with stringent grounding or safety requirements.

Q: How does the panel's material and surface treatment contribute to its durability?

A: Constructed from powder-coated cold rolled steel, treated with a phosphate base before coating, the panel provides excellent corrosion resistance and mechanical strength. This makes it particularly durable in environments exposed to moisture, ensuring reliable long-term performance.
