Neutrik Bnc Connectors

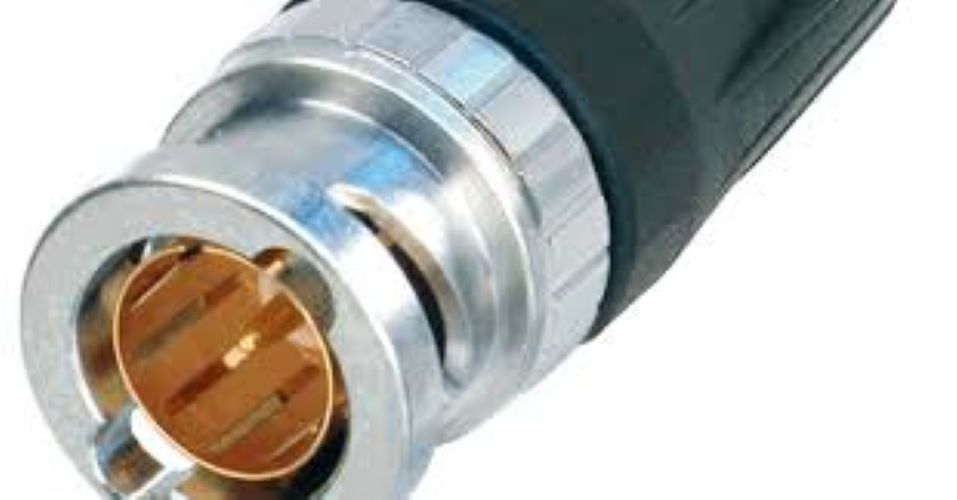

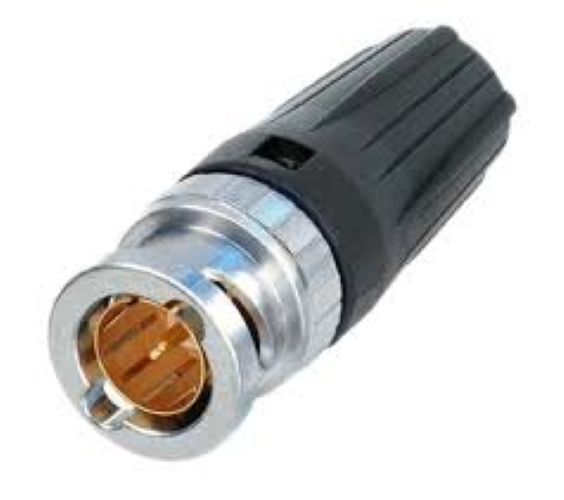

Name: Neutrik Bnc Connectors
Brand: CHERRY CONNECTRONICS
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Neutrik Bnc Connectors Specification

Usage & Applications
Audio, video, RF, instrumentation, CCTV, broadcast

Cable Type
For coaxial cables (RG58, RG59, etc.)

Locking Type
Bayonet lock

Features
Precision design, secure fit, and easy bayonet coupling with reliable signal transmission

Insulation
Polymer insulator

Conductor Type
Solid pin

Impedance
50 Ohm

Tensile Strength
Standard industrial rating

Core Number
Single-core

Rated Temperature
-30C to +85C

Core Material
Brass, gold plated

Weight
Approx. 20g

Dielectiric Strength
>1000V RMS (sea level)

Conductor Shape
Round pin

Install Type
Cable-mountable, crimp or solder

Diameter
Approx. 16mm

Operating Temperature
-30C to +85C

Number of Conductor
Single pole

Product Type
BNC connector (male plug)

Length
Standard connector; no cable included

Voltage
Up to 500V

Insulation Material
Polymer Insulator

Application
Audio/video, broadcast, instrumentation, RF connections

Conductor Material
Gold-plated brass

Jacket Material
Not applicable (connector body only)

Storage Temperature
-40C to +85C

Connector Color
Silver (metallic), black housing

Shield Material
Nickel-plated brass

Jacket Color
Black (rear grip section)

Dimension (L*W*H)
Approx. 40mm x 16mm x 16mm

Color
Silver and black

Material
Nickel-plated brass, polymer

Size
Standard BNC male

Contact Plating
Gold over nickel

Cable Clamp
Integrated strain relief

Body Plating
Nickel

Frequency Range
0-4 GHz

RoHS Compliance
Yes

Flame Retardant
Complies with UL 94V-0

Humidity Tolerance
Up to 95% non-condensing

Mating Cycles
>500 cycles

Shell Type
Straight male

Insulation Resistance
>5 GOhms

Contact Resistance
Center contact 5 mOhms

About Neutrik Bnc Connectors

From Neutrik, this Tiny BNC Cable Connector is designed for use with tiny or multicore cables, with an additional leading ferrule to ease the assembly of smaller cable diameters. The connector also features a unique rearTWIST cable boot for easy and assured locking and unlocking.

Reliable Signal Transmission

Designed with a gold-over-nickel solid center pin and nickel-plated brass shell, Neutrik BNC connectors ensure low contact resistance and exceptional signal clarity across audio, video, RF, and broadcast installations. The robust connection helps mitigate signal loss, even in challenging environments.

Durable and Long-Lasting

Engineered to withstand more than 500 mating cycles and stringent environmental conditions (humidity up to 95% and temperatures from -30C to +85C), these connectors are ideal for professional setups that demand consistent performance over time. Their high-grade materials and precise design offer outstanding reliability.

Effortless Bayonet Coupling

Neutrik's bayonet lock design allows for quick and secure connections, eliminating the need for special tools. The integrated strain relief and crimp/solder mounting options make installation swift and adaptable to a range of coaxial cables.

FAQ's of Neutrik Bnc Connectors:

Q: How do I install the Neutrik BNC connector onto a coaxial cable?

A: To install the Neutrik BNC connector, you can either crimp or solder it to compatible coaxial cables such as RG58 or RG59. The connector features an integrated strain relief and standard cable-mountable design. Detailed installation guidelines are typically provided with the product or can be requested from the supplier.

Q: What are the primary applications for these BNC connectors?

A: These connectors are ideal for audio, video, broadcast, CCTV, RF, and instrumentation applications. Their robust design and precise signal handling make them suitable for both studio and field environments requiring secure and low-loss connections.

Q: When should I replace a Neutrik BNC connector?

A: With a rated mating cycle of over 500 insertions, you should consider replacing the connector after repeated cycling or if you observe any physical wear, loss of secure fit, or increased signal loss to maintain optimal performance.

Q: Where can I use Neutrik BNC connectors in high humidity or temperature environments?

A: These connectors can be reliably used in conditions with up to 95% non-condensing humidity and temperatures ranging from -30C to +85C. Their rugged construction and flame-retardant polymer insulator ensure safe operation in demanding settings.

Q: What are the benefits of the gold-plated brass center contact and nickel-plated shell?

A: The gold-plated brass center ensures low electrical resistance (below 5 mOhms), enhancing signal quality and longevity. The nickel-plated shell provides sturdy protection against corrosion and wear, supporting long-term reliability.

Q: How does the bayonet locking mechanism work and what are its advantages?

A: The bayonet lock allows you to quickly and securely connect or disconnect the connector with a simple twist. This mechanism helps prevent accidental unplugging and assures a consistent, stable connection even with repeated use.

Q: What RoHS and safety certifications does this connector meet?

A: Neutrik BNC connectors are RoHS compliant and flame retardant, conforming to UL 94V-0 standards, ensuring they are safe for use in a variety of professional audio, video, and RF applications.
