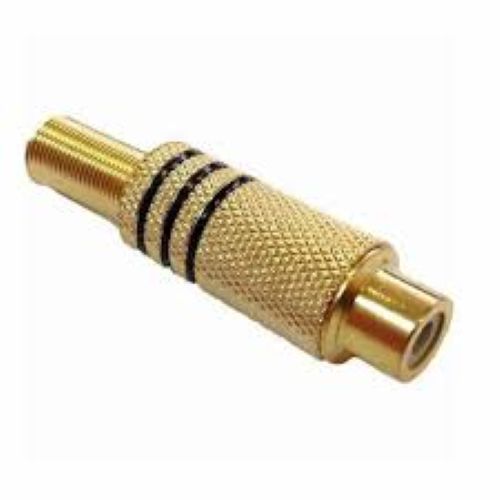

Send InquiryRCA Socket Gold Plated Extention Type
Price 125.0 INR/ Piece
MOQ : 1 Piece
RCA Socket Gold Plated Extention Type Specification
- Cable Type
- RCA Extension
- Usage & Applications
- Audio/Video Devices, Speakers, Amplifiers, Home Audio Setups
- Insulation
- PVC
- Core Number
- Single core
- Dielectiric Strength
- Standard for RCA connectors
- Impedance
- 75 Ohm (typical)
- Tensile Strength
- Sufficient for connector use
- Features
- Gold plated for optimum signal transfer, Minimal signal loss, Corrosion resistant, Long life, Easy extension installation
- Rated Temperature
- -20C to 70C approx.
- Weight
- Approx. 5 grams
- Conductor Type
- Solid/Stranded
- Diameter
- Approx. 12 mm
- Number of Conductor
- Single conductor
- Locking Type
- Push-fit, Non-locking
- Core Material
- Copper
- Install Type
- Panel Mount/Chassis Mount
- Operating Temperature
- -20C to 70C
- Conductor Shape
- Round
- Product Type
- RCA Socket Gold Plated Extension Type
- Length
- Extension/Custom as required
- Voltage
- Low voltage signal transmission
- Insulation Material
- PVC
- Application
- Audio/Video Signal Connection, Home theater, Amplifiers, Mixers
- Conductor Material
- Copper
- Jacket Material
- PVC
- Storage Temperature
- -30C to 85C
- Connector Color
- Gold and Black
- Shield Material
- Nickel/Brass
- Jacket Color
- Black
- Dimension (L*W*H)
- Standard RCA Size (approx. 12mm x 28mm)
- Color
- Gold/Black
- Material
- Brass, Gold Plated, PVC Insulation
- Size
- Standard RCA socket size
- Mounting Type
- Through-hole, Extended tail
- Corrosion Resistance
- Excellent due to Gold Plating
- Environmental Compliance
- RoHS Compliant
- Compatibility
- Standard RCA Plug
- Insulation Resistance
- >1000M @ 500V DC
- Termination Type
- Solder type ends
- Gender
- Female
- Contact Resistance
- Less than 30m
- Plating
- Gold Plated Contact Surface, Nickel Plated Outer
About RCA Socket Gold Plated Extention Type
RF (Radio Frequency) cable accessories are components used to prepare, terminate, protect, and adapt coaxial cables for optimal performance in telecommunications, broadcasting, and wireless networking. These tools and components ensure a high-integrity signal path by minimizing interference and signal loss. RF adapters and connectorsAdapters are used to convert between different types of RF connectors, which is essential when connecting devices with mismatched interfaces. Connector kits are also available for maximum versatility.- Inter-series RF adapter kit: This type of kit contains various adapters to connect different series of connectors, such as BNC, UHF, N, and SMA.
- RS PRO RF Connector Kit: A kit with 30 RF adapters for interconnecting various connector types.
- In-line adapters: These are used to change a connector's gender, extend a cable's length, or combine signals.
- UHF to BNC, SMA to BNC, N to SMA: Specific adapters to convert between common RF connector types are widely available.
- BOOBRIE 20PCS RF Coaxial Connector Kit: Includes UHF adapters for converting to SMA, BNC, N, and F connectors.
Excellent Signal Transmission
Thanks to its gold-plated contact surfaces, the RCA Socket Extension Type minimizes signal loss and guarantees clear audio or video transfer. Its outstanding conductivity ensures stable, long-lasting performance in electronic devices and communication systems alike.
Robust and Versatile Design
Featuring an extended tail and through-hole mounting, this socket supports secure installation on circuit boards. Its female design and compatibility with standard RCA plugs make it functional for a range of electronics-from home theaters to professional sound systems.
Environmentally Safe and Corrosion-Resistant
The connector is RoHS-compliant, ensuring adherence to environmental safety standards. Its gold and nickel plating provide excellent protection against oxidation and corrosion, extending product life even in demanding conditions.
FAQ's of RCA Socket Gold Plated Extention Type:
Q: How do I install the RCA Socket Gold Plated Extension Type on a circuit board?
A: This RCA socket is designed for through-hole mounting. Begin by inserting the extended tail into the appropriate slot on your circuit board, then solder the ends for a secure and stable electrical connection.Q: What makes gold plating beneficial for RCA sockets?
A: Gold plating increases conductivity and notably improves resistance to corrosion. This ensures long-lasting signal clarity and protects the socket from oxidation, making it ideal for electronic and audio/video applications.Q: When should I use this extension type RCA socket over other connector types?
A: Choose this gold-plated extension type socket when you require superior corrosion resistance, high conductivity, and a secure, soldered connection-especially in high-performance audio, video, or sensitive signal transmission scenarios.Q: Where can this RCA socket be commonly found?
A: It is prevalent in audio/video equipment, amplifiers, musical instruments, and professional broadcasting devices, as well as industrial setups demanding reliable and secure RCA interfacing.Q: What is the process for terminating the wires on this socket?
A: After securely mounting the socket to the board, solder the wire to the solder-type ends of the connector, ensuring a stable and robust electrical connection for optimal performance.Q: Is this RCA socket compatible with standard RCA plugs?
A: Yes, the socket is designed to accept standard RCA plugs, making it universally adaptable to most audio and video devices requiring RCA connectivity.
