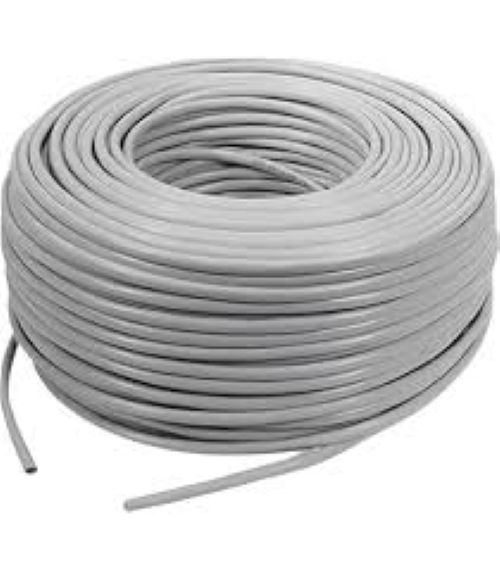

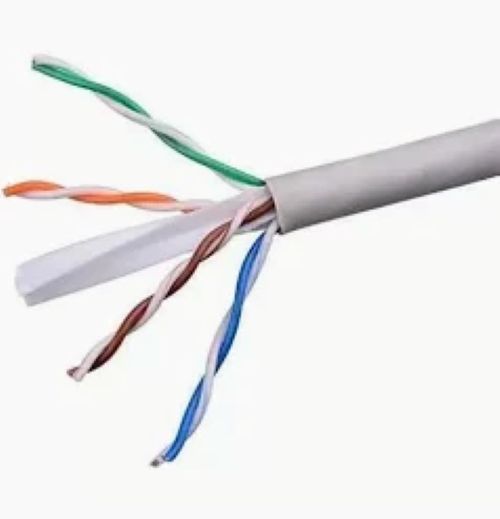

D'link Cat 6 Cable

Price 9500.0 INR/ Box

Get a Price/Quote

MOQ : 1 Box

D'link Cat 6 Cable Specification

Tensile Strength
11.5 Mpa

Rated Temperature
-20C to 75C

Conductor Shape
Solid

Features
High-speed data transmission, up to 1 Gbps, suitable for Gigabit Ethernet, low attenuation, enhanced crosstalk protection, RoHS compliant, PVC jacket, superior performance for networking.

Usage & Applications
Used for 10/100/1000 Base-T (Gigabit Ethernet), Networking, Internet, Telecommunication, CCTV

Core Material
Copper

Weight
~11.5 kg/box (305m)

Insulation
HDPE (High Density Polyethylene)

Diameter
~6.0 mm (0.2 mm)

Install Type
Indoor

Impedance
100 Ohm 15 Ohm

Conductor Type
Single core

Number of Conductor
8 (4 twisted pairs)

Cable Type
Category 6 UTP (Unshielded Twisted Pair)

Dielectiric Strength
1.5 kV for 2 seconds

Operating Temperature
-20C to 75C

Core Number
4 pairs (8 cores)

Armored Material
Not Applicable (Standard UTP)

Product Type
CAT6 UTP Networking Cable

Length
305 meters (1000 feet per roll) (other lengths may be available)

Voltage
300 V max

Insulation Material
High-density Polyethylene (HDPE)

Application
LAN Networking, Office and Home Networking, Structured Cabling, Data Centers

Conductor Material
Bare Copper

Jacket Material
PVC (Polyvinyl Chloride)

Storage Temperature
-20C to 75C

Connector Color
Typically clear (dependent on connector, not included in bulk cable)

Shield Material
Unshielded (UTP)

Jacket Color
Grey

Dimension (L*W*H)
305m (L) x Standard cable diameter (W/H) (typically ~6.0 mm )

Material
Copper, PVC, HDPE

Color
Grey

Size
23 AWG (American Wire Gauge)

Return Loss at 100 MHz
20.1 dB min

Packaging
305m Pull Box

Minimum Bending Radius
23 mm (4 x overall diameter)

Ampacity
1A max continuous

Standards Compliance
ANSI/TIA/EIA-568-B.2-1, ISO/IEC 11801 Edition 2.2

Flame Retardant
Yes

Frequency Range
Up to 250 MHz

Cross Section Construction
4 pairs, color coded

NEXT at 100 MHz
44.3 dB min

Attenuation at 100 MHz
20.9 dB/100m max

About D'link Cat 6 Cable

A Cat 6 Ethernet cable provides a more reliable and higher-performing wired internet connection than older standards like Cat 5e. It is ideal for high-bandwidth activities like online gaming, HD video streaming, and fast data transfers. The cable is backward compatible and equipped with standard RJ45 connectors. Features at a glance

Faster speed and bandwidth: Supports network speeds up to 10 gigabits per second (Gbps) over short distances and operates at up to 250 MHz, more than double the bandwidth of Cat 5e.
Reduced interference: Features a spline separator inside to isolate twisted pairs, which significantly reduces crosstalk and improves signal quality for a more stable connection.
Universal connectivity: Equipped with RJ45 connectors for connecting a wide range of devices, including PCs, laptops, routers, switches, printers, and gaming consoles.
Durable and reliable: Built with a protective jacket and reliable connectors to resist wear and tear and ensure a long-lasting, secure connection.
Backward compatible: Works with all devices that use older Ethernet standards, such as Cat 5 and Cat 5e.

High-Performance Networking Solution

D-Link Cat 6 UTP cables are engineered for seamless Gigabit connectivity, delivering rapid data rates up to 1 Gbps. With a frequency support of up to 250 MHz, these cables ensure uninterrupted, high-bandwidth networking for LAN, internet, telecom, and CCTV setups. Designed to minimize attenuation and crosstalk, they are perfect for demanding office or data center environments.

Superior Construction and Compliance

Featuring solid bare copper conductors and high-density polyethylene insulation, this cable adheres to international standards such as ANSI/TIA/EIA-568-B.2-1 and ISO/IEC 11801. Its flame-retardant PVC jacket provides added safety and durability, while its unshielded twisted pair (UTP) structure ensures flexibility and ease of installation for indoor projects.

Versatile Application and Easy Installation

Designed for multiple uses, including structured cabling, check D-Link Cat 6 cable meets the requirements for LAN, internet access, telecommunication, and surveillance. Supplied in a convenient 305m pull box, it simplifies installation, ensures organized wiring, and suits small- to large-scale projects. Compatible with standard connectors (not included), it's a reliable fit for various networking needs.

FAQ's of D'link Cat 6 Cable:

Q: How does the D-Link Cat 6 cable support high-speed data transmission?

A: The D-Link Cat 6 cable supports up to 1 Gbps data rates and a frequency range of 250 MHz, making it ideal for fast and stable Gigabit Ethernet connections in offices, homes, and data centers.

Q: What standards does the D-Link Cat 6 cable comply with?

A: This cable adheres to ANSI/TIA/EIA-568-B.2-1 and ISO/IEC 11801 Edition 2.2 standards, ensuring its performance, compatibility, and safety for professional networking applications.

Q: When should I choose this cable for my network setup?

A: Choose this cable when you require reliable high-speed data transfer, low attenuation, and enhanced crosstalk protection for applications like internet access, structured cabling, or office and home networking.

Q: Where can the D-Link Cat 6 cable be installed?

A: It is designed for indoor use in locations such as data centers, offices, homes, and structured cabling environments, meeting the needs of new installations and upgrades.

Q: What is the process for installing this cable?

A: Supplied in a 305m pull box, the cable can be cut to the desired length, maintained with a minimum bending radius of 23 mm, and terminated with standard connectors (not included) suitable for Cat 6 cabling.

Q: How does the flame retardant feature benefit my installation?

A: The flame retardant (FR) PVC jacket enhances safety by reducing fire risks, making the cable a secure option for densely wired environments such as offices or data centers.

Q: What are the main benefits of using D-Link Cat 6 cable over lower category cables?

A: D-Link Cat 6 cables offer higher bandwidth, reduced signal attenuation, superior crosstalk protection, and future-proofing for up to 1 Gbps speeds-ideal for modern networking demands.
